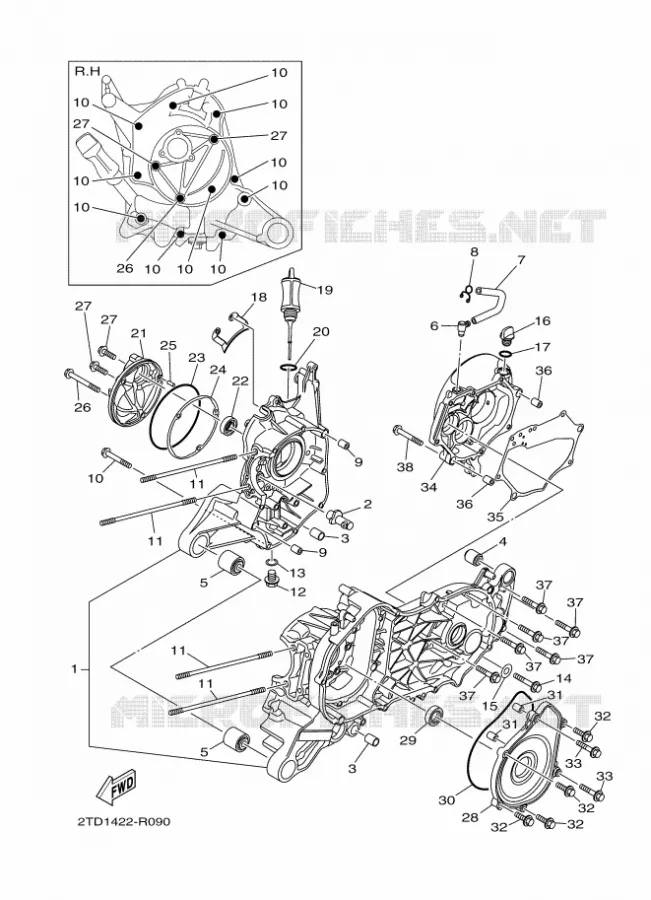

CRANKCASE FOR YAMAHA DELIGHT 2017

COVER - ENGINE 1

Item numbers

CRANKCASE ASSY

2TDE51500000 2TDE51500000

Not available

NOZZLE 3

2BME51550000 2BME51550000

Not available

BUSH

1DBF71210000 1DBF71210000

12,68 $

Unit Price

DAMPER

903880880300 903880880300

12,90 $

Unit Price

DAMPER

903881081000 903881081000

Not available

BREATHER

2BME53711000 2BME53711000

1,56 $

Unit Price

PIPE, BREATHER

2TDE53730000 2TDE53730000

Not available

CLIP

904671000800

90467100A100

1,27 $

Unit Price

PIN, DOWEL

918101480800 918101480800

Not available

BOLT, FLANGE

950220606000 950220606000

1,67 $

Unit Price

BOLT, STUD

901160883700 901160883700

Not available

BOLT, STUD

901160884300 901160884300

Not available

PLUG, STRAIGHT SCREW

903401280600 903401280600

Not available

GASKET

4YSE11980000

812111980000

4,85 $

Unit Price

BOLT, FLANGE DEEP RECESS

95D320604000 95D320604000

Not available

GASKET 256113960000

904300681700

904300601400

5,45 $

Unit Price

PLUG, OIL

5VDE53630000 5VDE53630000

Not available

O-RING

932101481400 932101481400

Not available

PLATE

2BME51130000 2BME51130000

Not available

PLUG, OIL LEVEL

2BME53620000 2BME53620000

Not available

O-RING

5P1E37690000 5P1E37690000

Not available

COVER, CAP

2BME54170000 2BME54170000

Not available

OIL SEAL

931021981600 931021981600

Not available

O-RING

932110780500 932110780500

Not available

GASKET

BE8E54530000 BE8E54530000

Not available

PIN, DOWEL

936051080100 936051080100

Not available

BOLT, FLANGE

950220607000 950220607000

2,59 $

Unit Price

BOLT, FLANGE

950220602000 950220602000

1,27 $

Unit Price

COVER 2

2BME54230000 2BME54230000

Not available

OIL SEAL

931022581800 931022581800

Not available

O-RING

932114780100 932114780100

Not available

PIN, DOWEL

918101480800 918101480800

Not available

BOLT, FLANGE

950220602500 950220602500

1,47 $

Unit Price

BOLT, FLANGE

950220603500 950220603500

1,68 $

Unit Price

COVER, CRANKCASE 2

2BME54210000 2BME54210000

Not available

GASKET, CRANKCASE COVER 2

BE8E54610000 BE8E54610000

Not available

PIN, DOWEL

918101480800 918101480800

Not available

BOLT, FLANGE

950220603500 950220603500

1,68 $

Unit Price

BOLT, FLANGE

950220604500 950220604500

1,02 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Yamaha, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
