CATALOGUE

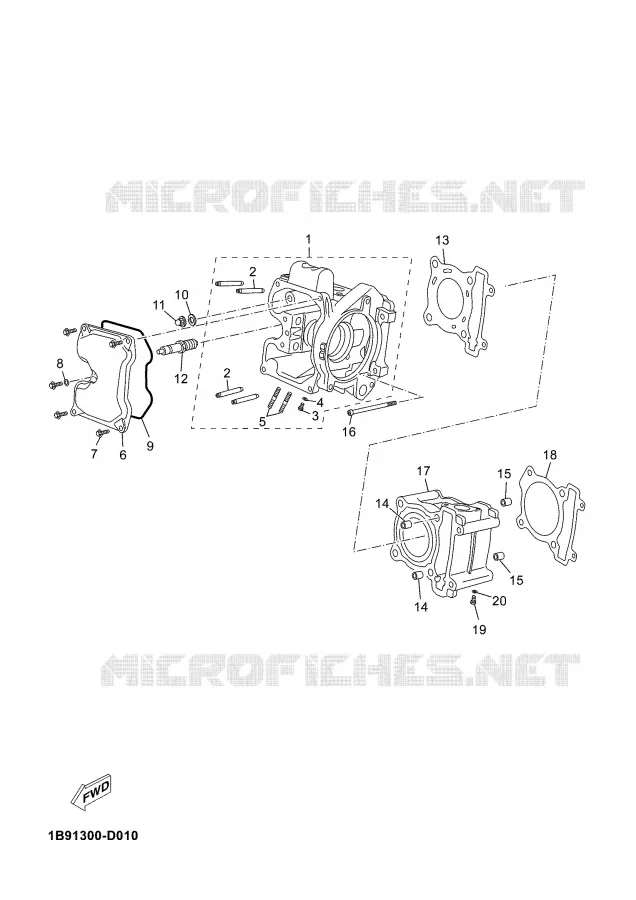

CYLINDER FOR YAMAHA XMAX 2007

CRANKSHAFT / PISTON

JEU DE CULASSE

1B9E11010000 1B9E11010000

Not available

.GUIDE, SOUPAPE 1 GUIDE, SOUPAPE 1

1S7E11331000 1S7E11331000

.BOULON, AVEC RONDELLE BOULON, AVEC RONDELLE

9010506X0400 9010506X0400

Not available

.JOINT JOINT

9043006X0000 9043006X0000

Not available

.GOUJON GOUJON

9011608X0300 9011608X0300

Not available

COUVERCLE, CULASSE 1

1B9E11910000 1B9E11910000

Not available

BOULON, AVEC RONDELLE

9010506X0600 9010506X0600

Not available

JOINT

9043006X0000 9043006X0000

Not available

JOINT, COUVERCLE DE CULASSE 1

5YPE11930000 5YPE11930000

Not available

RONDELLE, PLATE

9020108X2100 9020108X2100

Not available

NUT, CROWN (4G0)

901760802600 901760802600

14,94 $

Unit Price

BOUGIE D, ALLUMAGE

947000087100 947000087100

Not available

JOINT, DE CULASSE 1

1B9E11810000 1B9E11810000

Not available

PIN, DOWEL(3VD)

995301011400 995301011400

3,70 $

Unit Price

PIN, DOWEL(3VD)

995301011400 995301011400

3,70 $

Unit Price

BOLT, SOCKET HEAD

913170610000 913170610000

8,48 $

Unit Price

CYLINDRE 1

1B9113110000 1B9113110000

Not available

JOINT, D EMBASE

1B9113510000 1B9113510000

Not available

BOULON, AVEC RONDELLE

9010506X0400 9010506X0400

Not available

JOINT

9043006X0000 9043006X0000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Yamaha, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
