CYLINDER

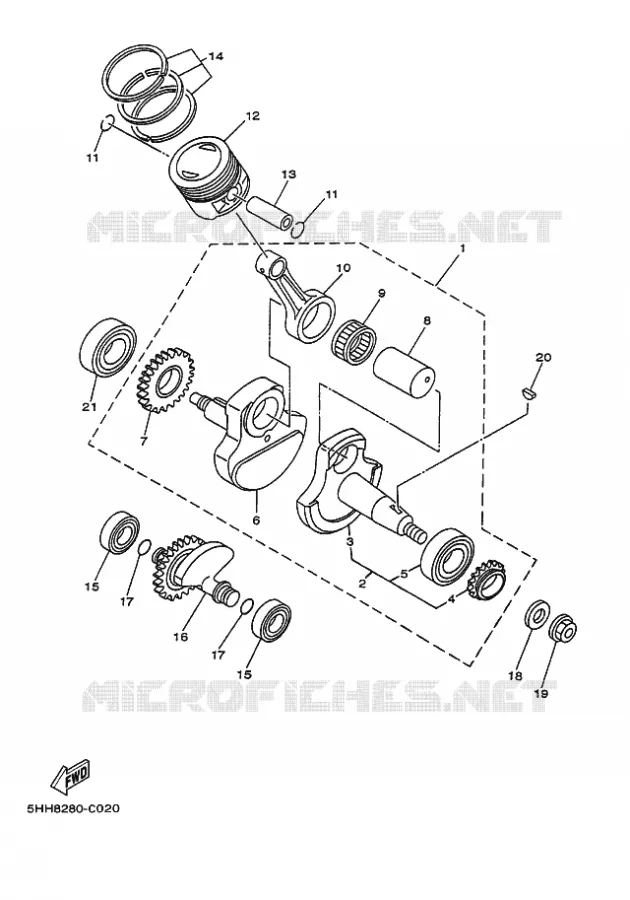

CRANKSHAFT / PISTON FOR YAMAHA TTR 2016

VALVE

Item numbers

CRANKSHAFT ASSY

5HHE14002000 5HHE14002000

1 358,20 $

Unit Price

CRANKSHAFT 1

5HHWE1412000 5HHWE1412000

509,71 $

Unit Price

. . MASSOLOTTE DE VILEBREQUIN 1

5HHE14122000 5HHE14122000

Not available

SPROCKET, CAM CHAIN

5HH115491000 5HH115491000

80,31 $

Unit Price

BEARING

93306205YX00

93306205X400

82,30 $

Unit Price

CRANKSHAFT 2

5HHE14221000 5HHE14221000

350,15 $

Unit Price

DRIVE GEAR

5HHE15360000 5HHE15360000

84,64 $

Unit Price

PIN, CRANK 1

4LS116810100 4LS116810100

76,78 $

Unit Price

BEARING

933106290C00 933106290C00

94,16 $

Unit Price

ROD, CONNECTING

4LS116510200 4LS116510200

114,60 $

Unit Price

CIRCLIP (4G0)

934501606800 934501606800

4,66 $

Unit Price

PISTON STD

1B2E163100C0

1B2E163100A0

194,53 $

Unit Price

PISTON (1.00MM O-S

1B2E16380000

1B2E16380900

136,45 $

Unit Price

PIN, PISTON

5HHE16330000

2TK116330000

25,38 $

Unit Price

PISTON RING SET (1.00MM O-S)

4LS116070000 4LS116070000

78,51 $

Unit Price

PISTON RING SET (STD)

5RME16030000 5RME16030000

100,73 $

Unit Price

PISTON RING SET (0.50MM O-S)

5RME16050000 5RME16050000

93,78 $

Unit Price

BEARING

93306252YA00 93306252YA00

50,21 $

Unit Price

BALANCER ASSY

5HHE15000200 5HHE15000200

552,76 $

Unit Price

O-RING

932101100100 932101100100

3,20 $

Unit Price

WASHER, PLATE (4K8)

90201120E800 90201120E800

5,90 $

Unit Price

NUT(3EF)

901791224800

901791265700

7,45 $

Unit Price

KEY WOODRUFF 146115450000

902800304500

902800301700

6,45 $

Unit Price

BEARING

93306205YW00 93306205YW00

66,64 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Yamaha, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
