CYLINDER

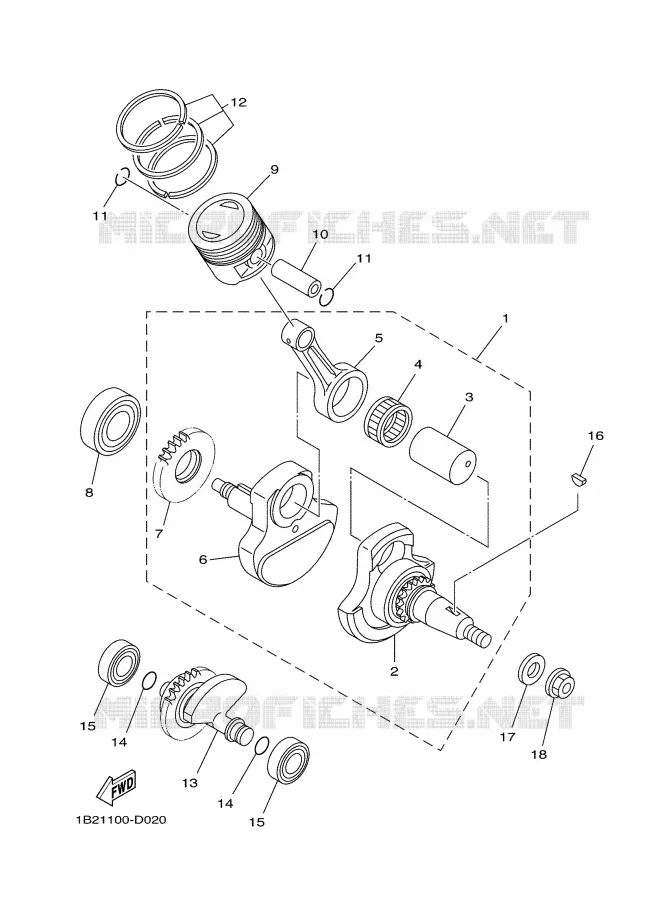

CRANKSHAFT / PISTON FOR YAMAHA XTR 2006

VALVE

CRANKSHAFT ASSY

5HHE14001200

5RME14000100

1 108,29 $

Unit Price

.MASSOLOTTE DE VILEBREQUIN 1 MASSOLOTTE DE VILEBREQUIN 1

5RMWE1410000 5RMWE1410000

Not available

PIN, CRANK 1

4LS116810100 4LS116810100

80,04 $

Unit Price

BEARING

933106290C00 933106290C00

98,16 $

Unit Price

ROD, CONNECTING

4LS116510200 4LS116510200

119,47 $

Unit Price

CRANKSHAFT 2

5HHE14221000 5HHE14221000

365,03 $

Unit Price

DRIVE GEAR

5HHE15360000 5HHE15360000

88,24 $

Unit Price

BEARING

93306205YW00 93306205YW00

69,47 $

Unit Price

PISTON (1.00MM O/S)

4LS116380100 4LS116380100

Not available

PISTON (STD)

5HHE163100A0 5HHE163100A0

Not available

PISTON (0.25MM O/S)

5HHE16350000 5HHE16350000

Not available

PISTON (0.50MM O/S)

5HHE16360000 5HHE16360000

Not available

PISTON (0.75MM O/S)

5HHE16370000 5HHE16370000

Not available

PIN, PISTON

5HHE16330000

2TK116330000

26,46 $

Unit Price

CIRCLIP (4G0)

934501606800 934501606800

4,86 $

Unit Price

JEU DE SEGMENTS (1.00MM O/S)

5RM116070000 5RM116070000

Not available

PISTON RING SET (STD)

5RME16030000 5RME16030000

105,01 $

Unit Price

JUE DE SEGMENTS (0.25MM O/S)

5RME16040000 5RME16040000

Not available

PISTON RING SET (0.50MM O-S)

5RME16050000 5RME16050000

97,77 $

Unit Price

JUE DE SEGMENTS (0.75MM O/S)

5RME16060000 5RME16060000

Not available

BALANCER ASSY

5HHE15000200 5HHE15000200

576,25 $

Unit Price

O-RING

932101100100 932101100100

3,34 $

Unit Price

BRG, R-B (7H4)

933062022100

933062021100

32,05 $

Unit Price

KEY WOODRUFF 146115450000

902800304500

902800301700

6,72 $

Unit Price

WASHER, PLATE (35T)

90201122H100 90201122H100

7,92 $

Unit Price

ECROU, A COLLERETTE

9570M1250000 9570M1250000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKSHAFT / PISTON of your Yamaha XT125R of 2006. Let us know if you have any questions.
