INTAKE

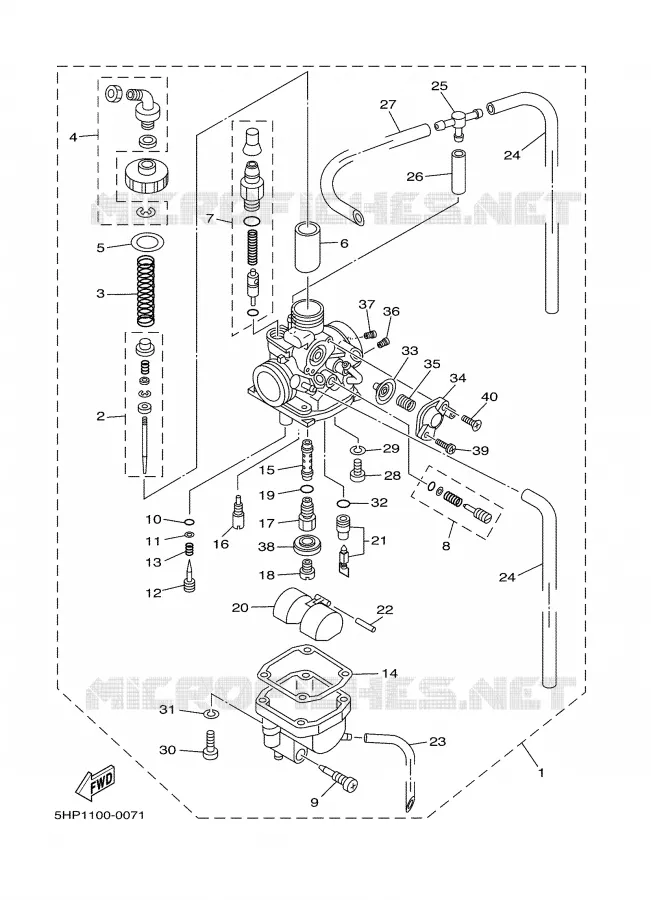

CARBURETOR FOR YAMAHA TTRE 2006

EXHAUST

CARBURETOR ASSY 1

5HP141012000 5HP141012000

542,24 $

Unit Price

NEEDLE SET

5HP1490J1000 5HP1490J1000

37,33 $

Unit Price

SPRING, THROTTLE VALVE

4LS141310000 4LS141310000

15,89 $

Unit Price

CABLE ADJUST SCREW SET

5DG141060000 5DG141060000

55,21 $

Unit Price

JOINT D'ÉCLAIRAGE

4LS141260000 4LS141260000

Not available

.BOISSEAU 1 BOISSEAU 1

5HH141122500 5HH141122500

Not available

STARTER SET

5HP1410A1000 5HP1410A1000

98,62 $

Unit Price

THROTTLE SCREW SET

5HH141030000 5HH141030000

52,63 $

Unit Price

PLUG, DRAIN

4LS141910000 4LS141910000

12,83 $

Unit Price

O-RING, PILOT SCREW

3H1141470000 3H1141470000

11,78 $

Unit Price

WASHER, PILOT SCREW

3H1149620000 3H1149620000

9,51 $

Unit Price

SCREW, PILOT

5HP149230000 5HP149230000

22,92 $

Unit Price

SPRING

5K7141340000 5K7141340000

14,46 $

Unit Price

GASKET, FLOAT CHAMBER

24W141840000 24W141840000

10,66 $

Unit Price

NOZZLE, MAIN

21V1414M2600 21V1414M2600

39,79 $

Unit Price

JET, PILOT (# 15)

5HP141421500 5HP141421500

25,62 $

Unit Price

SETTER, NEEDLE JET

5HP141450000 5HP141450000

32,65 $

Unit Price

JET, MAIN (#105)

620142312100

6201423121A0

14,23 $

Unit Price

JET, MA1N #102.5

6201423A7100

6201423A71A0

14,65 $

Unit Price

O-RING

583145610000 583145610000

10,59 $

Unit Price

FLOAT

5HH141850000 5HH141850000

93,84 $

Unit Price

NEEDLE VALVE SET

5HP141071800 5HP141071800

48,12 $

Unit Price

PIN, FLOAT

127141860000 127141860000

8,54 $

Unit Price

HOSE (L700)

1A0141960000

9044505M0700

8,11 $

Unit Price

HOSE (L1500)

26H141970000

90445084J000

21,15 $

Unit Price

NIPPLE

66E142510000 66E142510000

32,19 $

Unit Price

PIPE 1

5HP143480000 5HP143480000

6,38 $

Unit Price

PIPE

5CA141970000 5CA141970000

16,23 $

Unit Price

SCREW, PAN

985070300600 985070300600

2,19 $

Unit Price

WASHER, SPRING

929070310000

929900310000

3,47 $

Unit Price

SCREW, PAN HEAD(N15)

985070401400 985070401400

1,92 $

Unit Price

WASHER(6TA)

929070410000 929070410000

2,10 $

Unit Price

O-RING

4LS141470000 4LS141470000

10,14 $

Unit Price

DIAPHRAGM ASSY

5AP149400000 5AP149400000

48,61 $

Unit Price

COVER, CARBURETOR

5HP142800000 5HP142800000

55,41 $

Unit Price

SPRING, DIAPHRAGM

5AP149330000 5AP149330000

18,12 $

Unit Price

JET, MAIN (# 80)

1HX142311600 1HX142311600

13,98 $

Unit Price

JET, MAIN (#145)

1HX142312900 1HX142312900

13,97 $

Unit Price

WASHER, MAIN JET

5V7141530000 5V7141530000

23,44 $

Unit Price

SCREW

5HP145650000

5HP145650900

6,76 $

Unit Price

SCREW

5HP142160000 5HP142160000

6,36 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CARBURETOR of your Yamaha TTR125E of 2006. Let us know if you have any questions.
