GEAR SHIFT SHAFT / LEVER

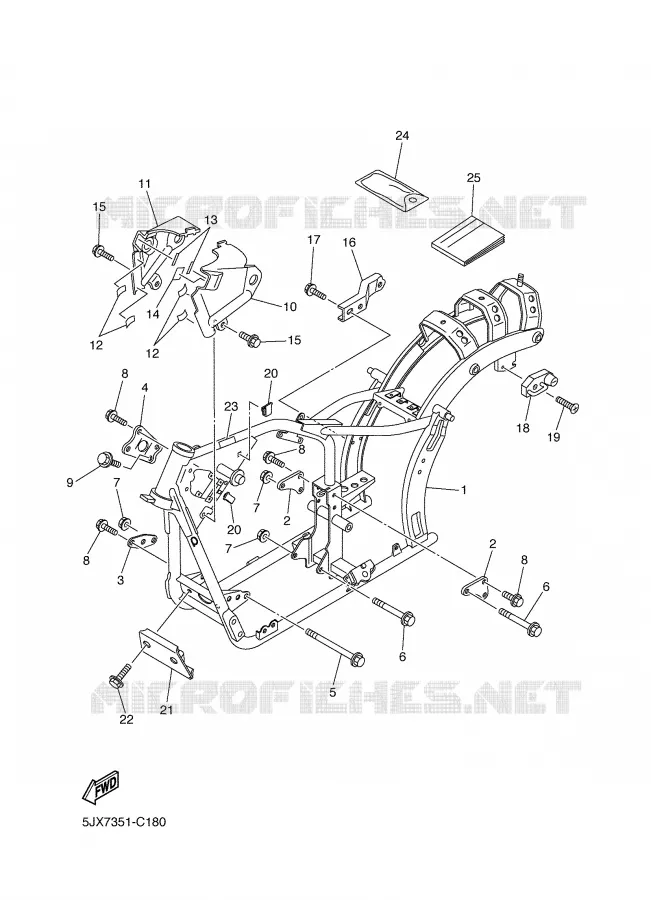

FRAME FOR YAMAHA DRAGSTAR 2004

FENDER

CADRE COMP.

5JX211102000 5JX211102000

Not available

SUPPORT 5, MOTEUR

5JX213180000 5JX213180000

Not available

SUPPORT 2, MOTEUR

5JX213150000 5JX213150000

Not available

SUPPORT 3, MOTEUR

5JX213160000 5JX213160000

Not available

BOLT, FLANGE(2UJ)

958140815000 958140815000

9,31 $

Unit Price

BOLT, FLANGE(2UJ)

958140811000 958140811000

6,08 $

Unit Price

NUT, U FLANGE(4KG)

956040820000 956040820000

2,84 $

Unit Price

BOLT, WASHER BASED

901050802100 901050802100

2,40 $

Unit Price

BOLT, FLANGE

958170801200 958170801200

3,75 $

Unit Price

CACHE LATERALE 5

5JX2171E0000 5JX2171E0000

Not available

CACHE, LATERALE 6

5JX2171X0000 5JX2171X0000

Not available

DAMPER 1

3BN217470000

3TB282170000

3,69 $

Unit Price

DAMPER 2

25G215760000

3FA216390000

4,74 $

Unit Price

SEAL 1

3SP217320000 3SP217320000

21,19 $

Unit Price

BOLT, WITH WASHER

901190600100 901190600100

5,60 $

Unit Price

SUPPORT, POT D ECHAPPEMENT

5JX214600000 5JX214600000

Not available

BOLT(2KF)

90109082G000

90109085E200

8,37 $

Unit Price

HELMET HANGER ASSY

4R8213080000

26H213080100

98,37 $

Unit Price

SCREW (4G1)

901490615400 901490615400

3,94 $

Unit Price

EMBLEME, CACHE LATERALE 1

5JX2117J0000 5JX2117J0000

Not available

COUVERCLE

5JX2139W0000 5JX2139W0000

Not available

BOULON

901090603300 901090603300

Not available

SEAL

1JK212680000 1JK212680000

2,85 $

Unit Price

TROUSSE A OUTILS

5JX281000000 5JX281000000

Not available

MANUAL, OWNER S

5JX28199D300 5JX28199D300

Not available

MANUAL, OWNER S

5JX28199E300 5JX28199E300

Not available

MANUAL, OWNER S

5JX28199F300 5JX28199F300

Not available

MANUAL, OWNER S

5JX28199G300 5JX28199G300

Not available

MANUAL, OWNER S

5JX28199H300 5JX28199H300

Not available

MANUAL, OWNER S

5JX28199P300 5JX28199P300

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRAME of your Yamaha XVS125 of 2004. Let us know if you have any questions.
