STEERING

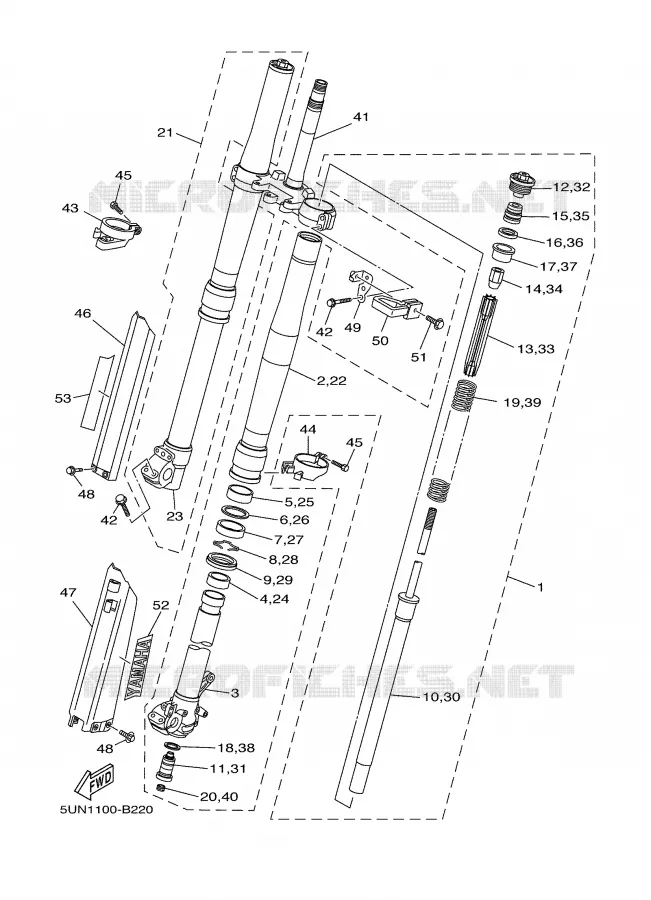

FRONT FORK FOR YAMAHA YZ 2003

FUEL TANK

FOURCHE AVANT COMPLETE (G)

5UN231020000 5UN231020000

Not available

FOURCHE AVANT COMPLETE (G)

5UN231021000 5UN231021000

Not available

FOURCHE AVANT COMPLETE (G)

5UN231022000 5UN231022000

Not available

.BAS DE FOURCHE BAS DE FOURCHE

5HD23136L000 5HD23136L000

Not available

.TUBE DE FOURCHE NUE TUBE DE FOURCHE NUE

5DH23120L000 5DH23120L000

Not available

PISTON, FRONT FORK

5ET23171L000 5ET23171L000

24,11 $

Unit Price

METAL, SLIDE 1

5ET23125L000 5ET23125L000

35,91 $

Unit Price

WASHER, OIL SEAL

5UN23146L000 5UN23146L000

15,76 $

Unit Price

OIL SEAL

5ET23145L000

5UN23145L000

24,34 $

Unit Price

RING, SNAP

4SS23153L000 4SS23153L000

7,11 $

Unit Price

SEAL, DUST

5HD23144L000 5HD23144L000

31,17 $

Unit Price

.CYLINDRE DE FOURCHE AV CYLINDRE DE FOURCHE AV

5UN23170L000 5UN23170L000

Not available

.CYLINDRE DE FOURCHE AV CYLINDRE DE FOURCHE AV

5UN23170M000 5UN23170M000

Not available

.CLAPET CLAPET

5UN2316AL000 5UN2316AL000

Not available

.CLAPET CLAPET

5UN2316AM000 5UN2316AM000

Not available

.BOULON, CHAPEAU BOULON, CHAPEAU

5UN23111L000 5UN23111L000

Not available

SEAT, SPRING UPPER

5DH23142L000 5DH23142L000

41,67 $

Unit Price

.ECROU, SPECIAL ECROU, SPECIAL

5HD23393L000 5HD23393L000

Not available

RUBBER

5MV23195L000 5MV23195L000

35,91 $

Unit Price

WASHER, SPRING UPPER

5DH23149L000 5DH23149L000

26,18 $

Unit Price

.ENTRETOISE ENTRETOISE

5DH23118L000 5DH23118L000

Not available

GASKET

4SS23158L000 4SS23158L000

9,43 $

Unit Price

SPRING, FRONT FORK

4XM23141L000

4SS231414000

70,80 $

Unit Price

.RESSORT, FOURCHE AVANT RESSORT, FOURCHE AVANT

5ET23141L000 5ET23141L000

Not available

PLUG

3JD2312GL000 3JD2312GL000

15,00 $

Unit Price

FOURCHE AVANT COMPLETE (D)

5UN231030000 5UN231030000

Not available

FOURCHE AVANT COMPLETE (D)

5UN231031000 5UN231031000

Not available

FOURCHE AVANT COMPLETE (D)

5UN231032000 5UN231032000

Not available

.BAS DE FOURCHE BAS DE FOURCHE

5HD23136L000 5HD23136L000

Not available

INNER TUBE

5BF23110L000 5BF23110L000

599,53 $

Unit Price

PISTON, FRONT FORK

5ET23171L000 5ET23171L000

24,11 $

Unit Price

METAL, SLIDE 1

5ET23125L000 5ET23125L000

35,91 $

Unit Price

WASHER, OIL SEAL

5UN23146L000 5UN23146L000

15,76 $

Unit Price

OIL SEAL

5ET23145L000

5UN23145L000

24,34 $

Unit Price

RING, SNAP

4SS23153L000 4SS23153L000

7,11 $

Unit Price

SEAL, DUST

5HD23144L000 5HD23144L000

31,17 $

Unit Price

.CYLINDRE DE FOURCHE AV CYLINDRE DE FOURCHE AV

5UN23170L000 5UN23170L000

Not available

.CYLINDRE DE FOURCHE AV CYLINDRE DE FOURCHE AV

5UN23170M000 5UN23170M000

Not available

.CLAPET CLAPET

5UN2316AL000 5UN2316AL000

Not available

.CLAPET CLAPET

5UN2316AM000 5UN2316AM000

Not available

.BOULON, CHAPEAU BOULON, CHAPEAU

5UN23111L000 5UN23111L000

Not available

SEAT, SPRING UPPER

5DH23142L000 5DH23142L000

41,67 $

Unit Price

.ECROU, SPECIAL ECROU, SPECIAL

5HD23393L000 5HD23393L000

Not available

RUBBER

5MV23195L000 5MV23195L000

35,91 $

Unit Price

WASHER, SPRING UPPER

5DH23149L000 5DH23149L000

26,18 $

Unit Price

.ENTRETOISE ENTRETOISE

5DH23118L000 5DH23118L000

Not available

GASKET

4SS23158L000 4SS23158L000

9,43 $

Unit Price

SPRING, FRONT FORK

4XM23141L000

4SS231414000

70,80 $

Unit Price

.RESSORT, FOURCHE AVANT RESSORT, FOURCHE AVANT

5ET23141L000 5ET23141L000

Not available

PLUG

3JD2312GL000 3JD2312GL000

15,00 $

Unit Price

TE DE FOURCHE INFERIEUR

5UN23340L000 5UN23340L000

Not available

BOLT 1

5NY23346L000 5NY23346L000

3,95 $

Unit Price

PROTECTER GUIDE COMP., 2

4SS2314GL000 4SS2314GL000

23,56 $

Unit Price

PROTECTER GUIDE COMP., 1

5DH2314FL000 5DH2314FL000

45,72 $

Unit Price

BOLT 1

4SS23346L000 4SS23346L000

6,22 $

Unit Price

PROTECTOR COMP 2

5DH2314J0000 5DH2314J0000

17,44 $

Unit Price

PROTECTER COMP., 1

5DH2314H0000 5DH2314H0000

20,32 $

Unit Price

BOLT 2

3SP23356L000 3SP23356L000

4,09 $

Unit Price

GUIDE, CABLE

4EW2331EL100 4EW2331EL100

19,82 $

Unit Price

GUIDE, CABLE

4DA233890000 4DA233890000

29,64 $

Unit Price

BOLT, WITH WASHER

901190507100 901190507100

3,58 $

Unit Price

EMBLEM, YAMAHA

4XL2153A1000

4XL2153A1100

23,35 $

Unit Price

EMBLEM, YAMAHA

4XL2153A1000

4XL2153A1100

23,35 $

Unit Price
