FRONT MASTER CYLINDER

STAND / FOOTREST FOR YAMAHA TW 2002

IGNITION

PEDALE, FREIN

5EK272110000 5EK272110000

Not available

COVER, CHANGE PEDAL

132181130100 132181130100

7,65 $

Unit Price

BOLT (4MY)

970070602000 970070602000

2,42 $

Unit Price

NUT(JN5)

953070670000

953170670000

2,10 $

Unit Price

TIGE DE FREIN

5RS272310000 5RS272310000

Not available

PIN, CLEVIS (3X3)

902400607600 902400607600

8,37 $

Unit Price

WASHER(6TA)

929070620000 929070620000

2,13 $

Unit Price

COTTER PIN

914012001200

914012002000

3,75 $

Unit Price

SPRING, TENSION

905061828900 905061828900

8,56 $

Unit Price

COVER, SPRING

1M1272440000 1M1272440000

4,81 $

Unit Price

SPRING, (180-27236-00)

905011024500 905011024500

4,23 $

Unit Price

PIN 1562723700

902491200800 902491200800

5,17 $

Unit Price

NUT, WING (1K5)

901750601300 901750601300

4,26 $

Unit Price

REPOSE-PIEDS AV (G)

5EK274100000 5EK274100000

Not available

SPRING, TORSION (23X)

905082058300 905082058300

3,39 $

Unit Price

PIN, CLEVIS (23X)

902401010100 902401010100

10,04 $

Unit Price

PIN, COTTER

914012501500

914902502000

3,93 $

Unit Price

FOOTREST COVER

3LD274130000 3LD274130000

47,62 $

Unit Price

BOLT, SOCKET

913170601000 913170601000

4,24 $

Unit Price

BOLT, FLANGE

958271202500

958171202500

7,08 $

Unit Price

REPOSE-PIEDS AV (D)

5EK274200000 5EK274200000

Not available

SPRING, TORSION (23X)

905082058300 905082058300

3,39 $

Unit Price

PIN, CLEVIS (23X)

902401010100 902401010100

10,04 $

Unit Price

PIN, COTTER

914012501500

914902502000

3,93 $

Unit Price

FOOTREST COVER

3LD274130000 3LD274130000

47,62 $

Unit Price

BOLT, SOCKET

913170601000 913170601000

4,24 $

Unit Price

BOLT, HEX. SOCKET BUTTON

901111000400

901111001900

5,53 $

Unit Price

STAND, SIDE

2JX273110200 2JX273110200

80,05 $

Unit Price

SPRING, TENSION (4K0)

905061822400 905061822400

7,45 $

Unit Price

SPRING, TENSION (4K0)

905062622500 905062622500

9,95 $

Unit Price

GUIDE, SIDE STAND

1TX273510000 1TX273510000

9,27 $

Unit Price

LINK, SIDE STAND

5RS273150000 5RS273150000

12,26 $

Unit Price

BOLT

901091047300 901091047300

4,69 $

Unit Price

NUT, U

901851003700 901851003700

9,07 $

Unit Price

BRACKET 2

2JX274421000

2JX274421100

88,33 $

Unit Price

BRACKET 1

5RS274320000

5RS274320100

108,67 $

Unit Price

BOLT, BUTTON

920170801600 920170801600

5,09 $

Unit Price

WASHER, SPECIAL

2JX274370000 2JX274370000

22,29 $

Unit Price

COVER, REAR FOOTREST

120274330000 120274330000

12,58 $

Unit Price

FOOTREST, REAR 1

120274310000

2GV274310000

18,34 $

Unit Price

WASHER, PLATE (888)

902012027900 902012027900

1,68 $

Unit Price

PIN, CLEVIS (1Y8)

917010603200 917010603200

6,72 $

Unit Price

COTTER PIN

914012001200

914012002000

3,75 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

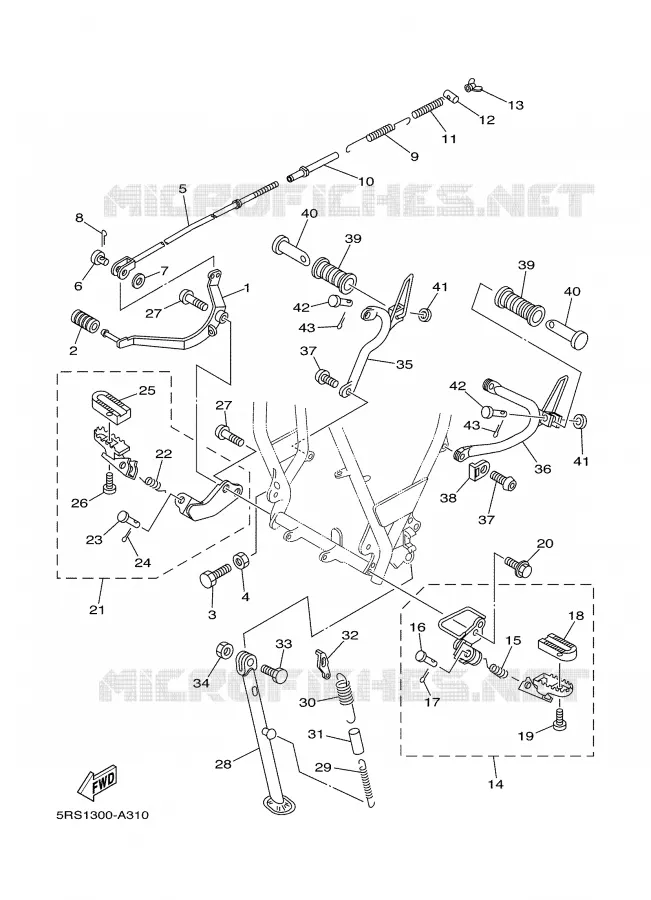

Find on this page all the original spare parts relating to the STAND / FOOTREST of your Yamaha TW125 of 2002. Let us know if you have any questions.
