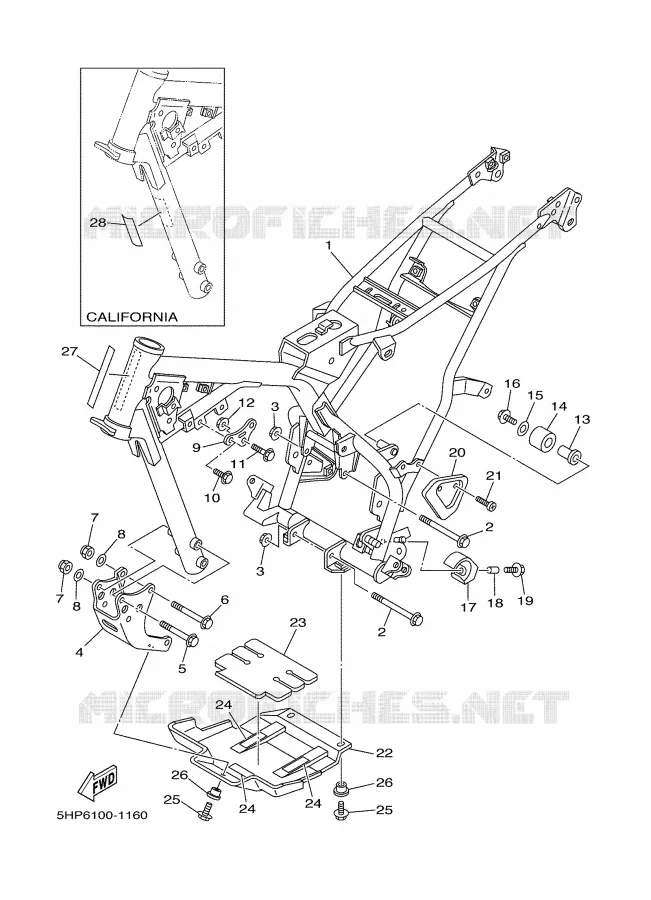

FRAME FOR YAMAHA TTR 2002

FENDER

CADRE COMP.

5HP211100100 5HP211100100

Not available

BOLT, WASHER BASED

901050800700 901050800700

7,44 $

Unit Price

NUT, SELF-LOCKING

901850816900 901850816900

7,57 $

Unit Price

SUPPORT 3, MOTEUR

5HP213160000 5HP213160000

Not available

BOLT, WASHER BASED

90105084A100 90105084A100

12,43 $

Unit Price

BOLT, WASHER BASED

901050801100 901050801100

5,11 $

Unit Price

NUT, U

956170810000 956170810000

10,16 $

Unit Price

WASHER, PLATE(3XP)

90201086P800 90201086P800

7,11 $

Unit Price

SUPPORT 2, MOTEUR

5HP213150000 5HP213150000

Not available

BOLT, WASHER BASED(JN9)

90105082A000 90105082A000

3,90 $

Unit Price

BOLT, WASHER BASED

901050800200 901050800200

2,22 $

Unit Price

NUT, SELF-LOCKING

901850816900 901850816900

7,57 $

Unit Price

BUSH

10V221840000 10V221840000

4,81 $

Unit Price

TENSIONER

30X221780000 30X221780000

Not available

WASHER, PLATE(8AT)

902010875300

90201081R900

7,11 $

Unit Price

BOLT, SMALL FLANGE

950270801200 950270801200

3,94 $

Unit Price

TENSIONER SET

4ES221780000

999990439700

10,27 $

Unit Price

COLLAR (3H5)

90387060A300 90387060A300

3,09 $

Unit Price

BOLT, WITH WASHER(81H)

901190611800 901190611800

3,94 $

Unit Price

COUVERCLE

5HP2117F0000 5HP2117F0000

Not available

SCREW, BIND(1JK)

989040601000

989800601000

3,94 $

Unit Price

PROTECTEUR, MOTEUR

5HP214710000 5HP214710000

Not available

DAMPER, RUBBER 1

5HP214850000 5HP214850000

19,56 $

Unit Price

SEAL

5HP212680000 5HP212680000

Not available

BOLT, FLANGE

958070601600

958170601600

3,30 $

Unit Price

COLLAR (8G8)

903870668100 903870668100

9,95 $

Unit Price

PLATE, EPA

5HP2179X0000 5HP2179X0000

Not available

PLATE, EPA 3

5HP2179T2000 5HP2179T2000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRAME of your Yamaha TTR125L of 2002. Let us know if you have any questions.
