FUEL TANK FOR YAMAHA DRAGSTAR 2002

SEAT

RESERVOIRE A ESSENCE

5JXY24101002 5JXY24101002

Not available

RESERVOIRE A ESSENCE

5JXY24101004 5JXY24101004

Not available

RESERVOIRE A ESSENCE

5JXY24101006 5JXY24101006

Not available

.JEU D EMBLEMES JEU D EMBLEMES

5JX242400100 5JX242400100

Not available

.JEU D EMBLEMES JEU D EMBLEMES

5JX242403000 5JX242403000

Not available

.JEU D EMBLEMES JEU D EMBLEMES

5JX242404000 5JX242404000

Not available

DURITE 4

5JX243140000 5JX243140000

Not available

CLIP

904670910300

90467090A200

1,47 $

Unit Price

CLAMP(4FM)

904641318500 904641318500

6,67 $

Unit Price

CLAMP(4GY)

904641019000 904641019000

7,93 $

Unit Price

CLAMP (1J7)

904641602500 904641602500

5,99 $

Unit Price

EMBLEME

5JX2416B0000 5JX2416B0000

Not available

EMBLEME

5JX2417B0000 5JX2417B0000

Not available

PLAQUE DE FIXATION

5JX2411F0000 5JX2411F0000

Not available

PLUG(1NL)

903380601800

903380718000

11,27 $

Unit Price

SILENT-BLOC

5JX241820000 5JX241820000

Not available

SILENT-BLOC

5JX241830000 5JX241830000

Not available

BOLT, FLANGE

958070601200

958170601200

1,39 $

Unit Price

RONDELLE, SPECIALE

5JX241860000 5JX241860000

Not available

BOLT, FLANGE

958170801200 958170801200

3,75 $

Unit Price

DAMPER, LOCATING

4H7241810000 4H7241810000

16,24 $

Unit Price

BOUCHON

4TR246020100 4TR246020100

Not available

ROBINET A ESSENCE

5JX245000000 5JX245000000

Not available

VALVE PACKING

3AJ245230000

3AC245230000

16,29 $

Unit Price

SEAL, COCK

3AJ245340000

3AJ245340100

6,69 $

Unit Price

.VIS HEXAGONAL AVC RONDELLE VIS HEXAGONAL AVC RONDELLE

975070300800 975070300800

Not available

LEVER, COCK

4HM245240000 4HM245240000

8,03 $

Unit Price

SCREW, FLAT

986060401800

987070401600

2,10 $

Unit Price

SCREW 256241430000

901490601100 901490601100

7,02 $

Unit Price

WASHER, PLATE(3MB)

902020519300

902020518700

1,68 $

Unit Price

MOLD, FUEL TANK

4BP241880000

1HX241880100

11,63 $

Unit Price

MOULURE, RASERVOIR A ESSENCE

5JX241880000 5JX241880000

Not available

DURITE A ESSENCE

5JX243110000 5JX243110000

Not available

CLIP

904671000800

90467100A100

1,27 $

Unit Price

CLIP (7K7)

904671104400 904671104400

8,37 $

Unit Price

DURITE 2

5JX243120000 5JX243120000

Not available

CLIP

904670903700

904670912000

0,90 $

Unit Price

CLIP (16G)

904670807500

904670802100

7,43 $

Unit Price

COUVRE RESERVOIR

5JX2171A0000 5JX2171A0000

Not available

WASHER, PLATE(1KT)

902020518000 902020518000

4,46 $

Unit Price

BOLT, HEX. SOCKET BUTTON

901100520100

901110505900

5,10 $

Unit Price

RIVET

902690600100 902690600100

4,50 $

Unit Price

JOINT

5JX2414G0000 5JX2414G0000

Not available

EMBLEM

4TR2413B0000 4TR2413B0000

30,04 $

Unit Price

DAMPER, SIDE COVER

3XV217170000 3XV217170000

2,39 $

Unit Price

JOINT 2

5JX217350000 5JX217350000

Not available

ROLL OVER VALVE ASSY

3UH241800000 3UH241800000

70,99 $

Unit Price

CLAMP

904611513900

904641501400

2,61 $

Unit Price

SCREW, BINDING

989070501200 989070501200

2,10 $

Unit Price

DURITE 3

5JX243130100 5JX243130100

Not available

PROTECTEUR DE DURITE

5JX243270000 5JX243270000

Not available

PROTECTEUR DE DURITE

5JX243272000 5JX243272000

Not available

POMPE A ESSENCE COMPLET

4NX139100000 4NX139100000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

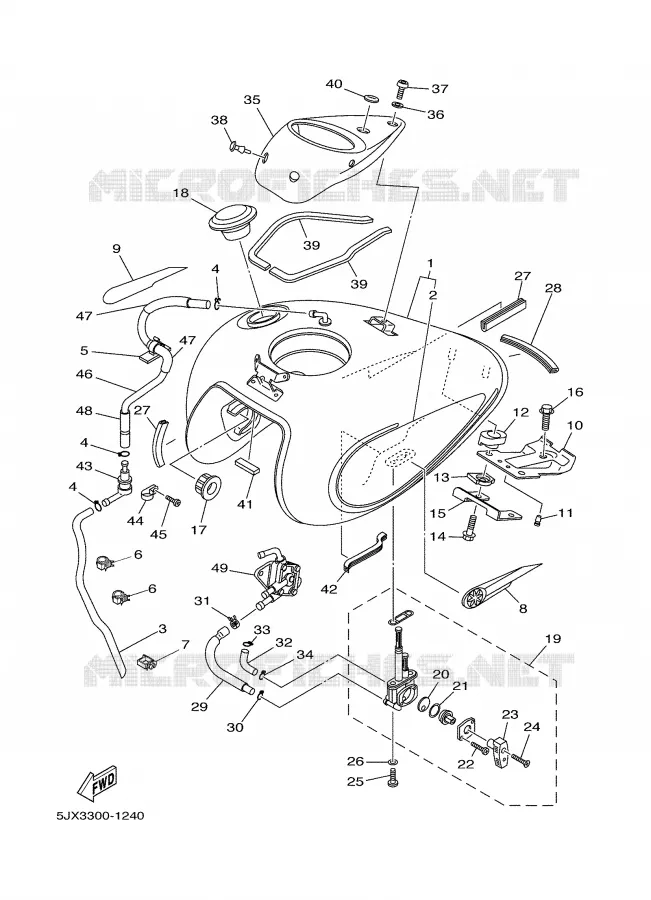

Find on this page all the original spare parts relating to the FUEL TANK of your Yamaha XVS125 of 2002. Let us know if you have any questions.
