HEADLIGHT

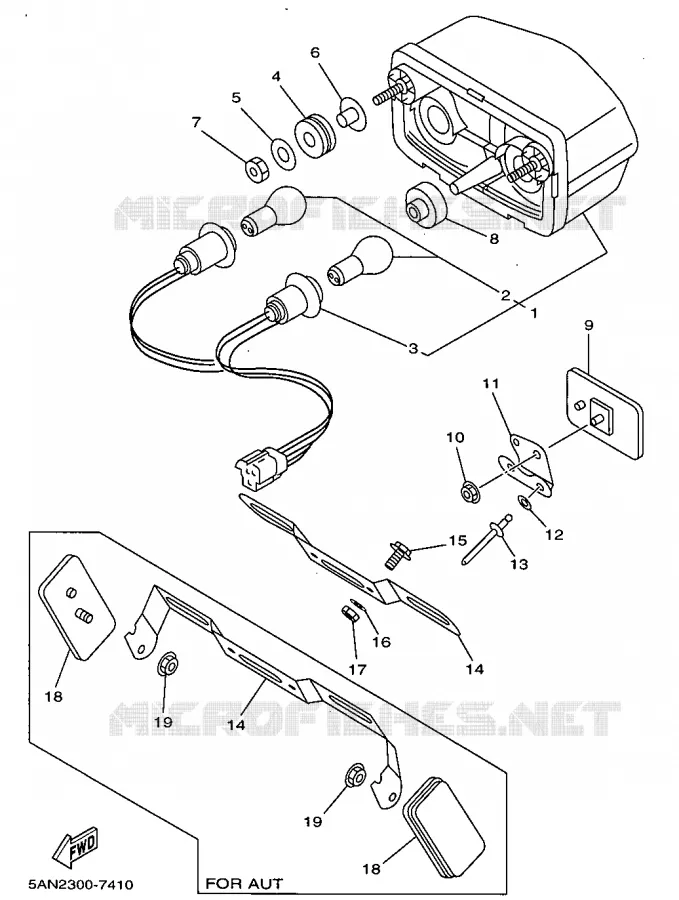

TAIL LIGHT FOR YAMAHA TDR 1998

SWITCH / LEVER

FEU ARRIERE

3GM847102000 3GM847102000

BULB

36Y847144000

1A2847145000

11,81 $

Unit Price

.CORDON DE FIL CPLT. CORDON DE FIL CPLT.

3LK8473A0000 3LK8473A0000

Not available

GROMMET (4L0)

904801827600 904801827600

4,03 $

Unit Price

WASHER, PLATE(36Y)

902010607100

90201063J200

5,66 $

Unit Price

COLLERETTE

90387062W400 90387062W400

Not available

NUT(6TA)

953070660000

953170660000

2,10 $

Unit Price

GROMMET (3GD)

904801525900

904801050900

20,74 $

Unit Price

REAR REFLECTOR ASSY

4KM851300000 4KM851300000

24,40 $

Unit Price

NUT, FLANGE(3GM)

957070550000 957070550000

2,29 $

Unit Price

BRACKET, REFLECTOR 1

33G851320200 33G851320200

10,89 $

Unit Price

WASHER, PLATE(26H)

902010401800

90201044H900

3,58 $

Unit Price

RIVET, BLIND (J17)

902674009000 902674009000

5,28 $

Unit Price

BRACKET, LICENSE

3YF847510000

3YF847510100

20,85 $

Unit Price

SUPPORT, PLAQUE D IMMATRIC

4BW847510000 4BW847510000

Not available

BOLT, FLANGE(4MY)

950270601200 950270601200

2,10 $

Unit Price

WASHER, PLATE

902010638000 902010638000

5,48 $

Unit Price

NUT(6TA)

953070660000

953170660000

2,10 $

Unit Price

FRONT REFLECTOR ASSY

23V851100000 23V851100000

24,35 $

Unit Price

NUT, FLANGE(3GM)

957070550000 957070550000

2,29 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TAIL LIGHT of your Yamaha TDR125 of 1998. Let us know if you have any questions.

Select your Yamaha TDR model from 1998
