FRONT MASTER CYLINDER

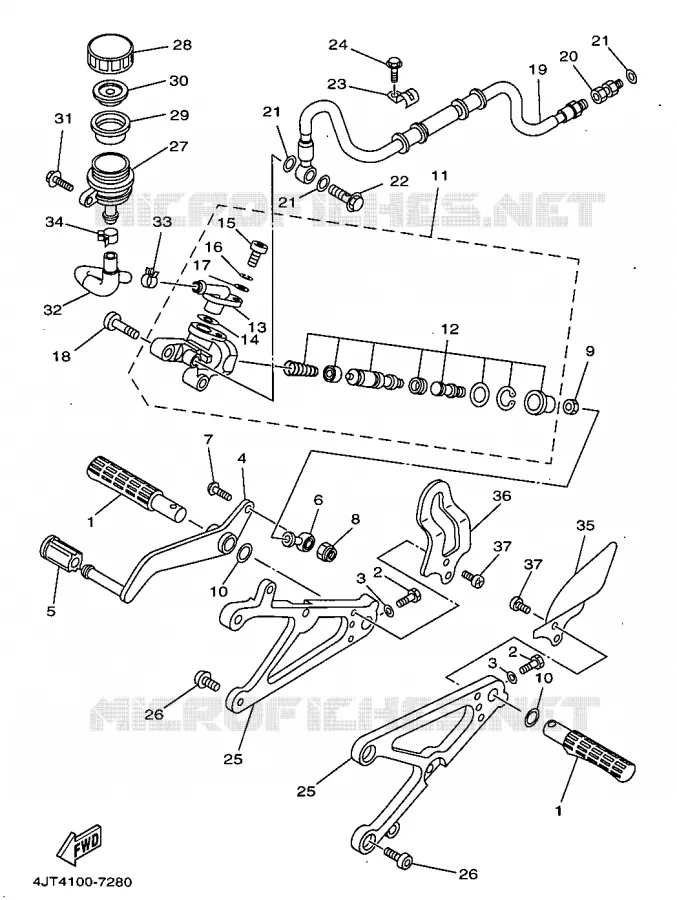

STAND / FOOTREST FOR YAMAHA TZ 1997

COVER 1

REPOSE-PIEDS 1

4JT274111100 4JT274111100

Not available

BOLT (4MY)

970070602000 970070602000

2,42 $

Unit Price

WASHER(6TA)

929070660000 929070660000

1,83 $

Unit Price

PEDALE, FREIN

4JT272110000 4JT272110000

Not available

COVER

4A0181130000

240181130000

6,08 $

Unit Price

JOINT 1

3YL272220000

8CW181560000

89,28 $

Unit Price

BOLT, BUTTON

920170602000 920170602000

4,00 $

Unit Price

NUT, SELF-LOCKING

956070610000

956170610000

8,11 $

Unit Price

NUT(6TA)

953070660000

953170660000

2,10 $

Unit Price

WASHER PLATE 611441260000

902011421200 902011421200

7,81 $

Unit Price

RR. MASTER CYLINDER ASSY.

3YL2583V0000 3YL2583V0000

411,89 $

Unit Price

CYLINDER KIT, MASTER

3YLW00425000 3YLW00425000

236,79 $

Unit Price

CONNECTOR

36Y2582A5000

29L2582A5000

50,98 $

Unit Price

O-RING (22U)

932101562000

932101556600

5,61 $

Unit Price

SCREW, PAN HEAD

985110401200

985170401200

1,81 $

Unit Price

YBS67-4 WASHER, SPRING

929020410000

929900410000

1,68 $

Unit Price

WASHER, PLAIN (646)

929010460000

929900460000

1,68 $

Unit Price

BOLT, BUTTON

920170802500 920170802500

4,23 $

Unit Price

BRAKE HOSE

4JT258741000 4JT258741000

Not available

JOINT

3LC258850000 3LC258850000

51,44 $

Unit Price

WASHER, PLATE(481)

902011011800 902011011800

6,40 $

Unit Price

BOLT, UNION(3GM)

904011015900 904011015900

11,58 $

Unit Price

BRAKE HOSE HOLDER

3XV258760000 3XV258760000

12,48 $

Unit Price

BOLT, WASHER BASED(JA9)

950270601600

901050669600

7,86 $

Unit Price

SUPPORT, REPOSE-PIEDS 1

4JT274122000 4JT274122000

Not available

BOLT, BUTTON

920170802000 920170802000

5,50 $

Unit Price

TANK, RESERVOIR

2VN258940000 2VN258940000

16,94 $

Unit Price

CAP, RESERVOIR

3XP258525000 3XP258525000

24,00 $

Unit Price

DIAPHRAGM, RESERVOIR

2VN258540000 2VN258540000

26,32 $

Unit Price

BUSH, DIAPHRAGM

2VN258550000 2VN258550000

14,20 $

Unit Price

BOLT, FLANGE(JL8)

901090675700

958800601600

6,33 $

Unit Price

DURITE DE RESERVOIR

4JT258950000 4JT258950000

Not available

CLIP (5K4)

904671405700 904671405700

3,84 $

Unit Price

CLIP (7K7)

904671104400 904671104400

8,37 $

Unit Price

PLAQUE 1

4TW274450000 4TW274450000

Not available

PLAQUE 1

4JT274450000 4JT274450000

Not available

SCREW, BINDING

901540506400

989070501200

2,10 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the STAND / FOOTREST of your Yamaha TZ125 of 1997. Let us know if you have any questions.
