CRANKSHAFT / PISTON

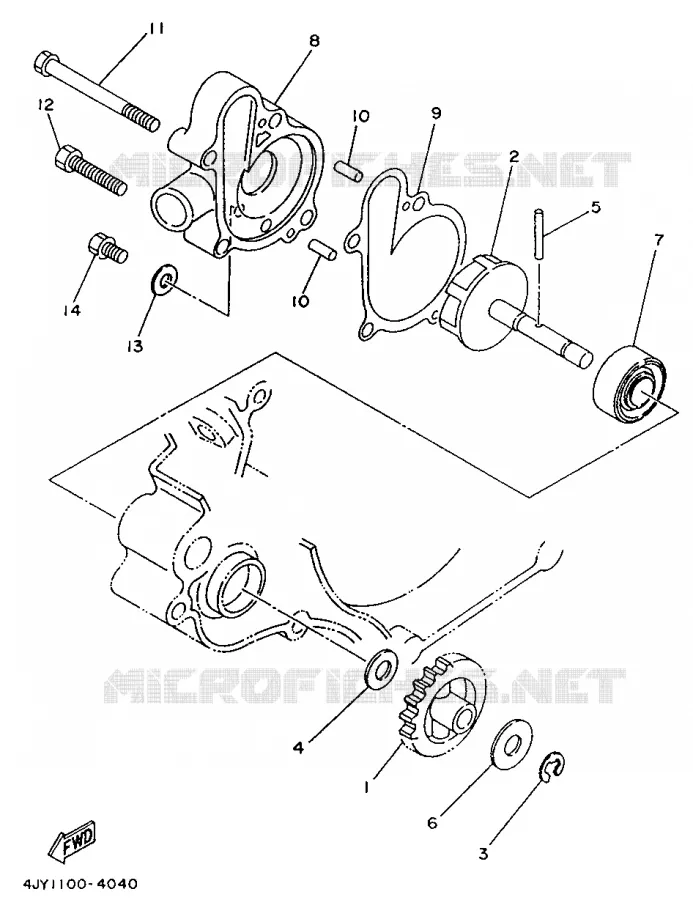

WATERPUMP FOR YAMAHA YZ 1996

RADIATOR / HOSES

IMPELLER SHAFT GEAR

4SS124590000 4SS124590000

46,68 $

Unit Price

IMPELLER SHAFT ASSY

1LX124500000

1LX124500100

51,71 $

Unit Price

CIRCLIP(6L2)

990800760000 990800760000

1,77 $

Unit Price

WASHER, PLATE (5F7)

902010851200 902010851200

7,11 $

Unit Price

PIN, DOWEL (137)

936032202800 936032202800

4,24 $

Unit Price

WASHER, PLATE (3L7)

902010878400 902010878400

3,90 $

Unit Price

OIL SEAL

931031016800

931031001100

51,82 $

Unit Price

HOUSING COVER

4JY124220000

4JY124220100

153,52 $

Unit Price

GASKET, HOUSING COVER 2

4JY124280000 4JY124280000

19,41 $

Unit Price

PIN, DOWEL (603)

936041001100 936041001100

5,10 $

Unit Price

BOLT, SMALL FLANGE

950270605500 950270605500

2,64 $

Unit Price

BOLT, SMALL FLANGE

950270603000 950270603000

2,49 $

Unit Price

GASKET 256113960000

904300601400 904300601400

5,45 $

Unit Price

BOLT, FLANGE(4MY)

950270601000 950270601000

2,10 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the WATERPUMP of your Yamaha YZ125H of 1996. Let us know if you have any questions.
