FRONT MASTER CYLINDER

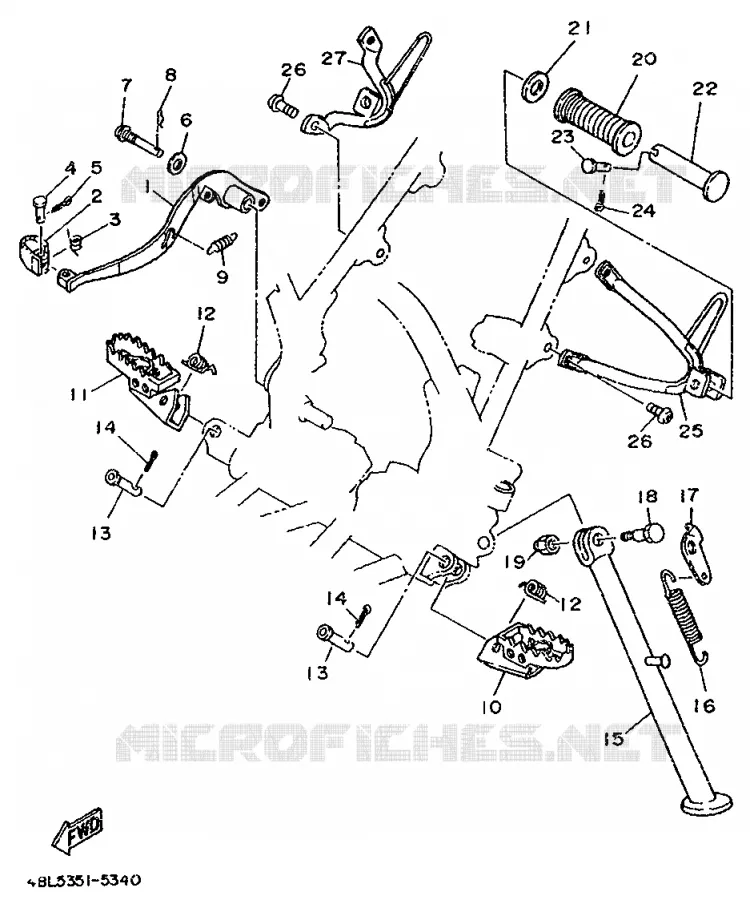

STAND / FOOTREST FOR YAMAHA DTE 1996

REAR BRAKE MASTER CYLINDER

BRAKE PEDAL

3BN272110000

3BN272110100

42,76 $

Unit Price

PEDAL, BRAKE

55V272420000 55V272420000

27,95 $

Unit Price

SPRING, TORSION (1W2)

905081435200 905081435200

3,94 $

Unit Price

PIN, COTTER (1W2)

917010602200 917010602200

2,22 $

Unit Price

COTTER PIN

914012001500

914012002000

3,75 $

Unit Price

WASHER, PLATE(3XP)

90201086P800 90201086P800

7,11 $

Unit Price

BOLT (3XF1)

901490826900

901100822000

6,16 $

Unit Price

CLIP (156-83525-00)

904681005000 904681005000

5,16 $

Unit Price

SPRING, TENSION (23X)

905061830500 905061830500

5,54 $

Unit Price

FOOTREST 1

3LD274110000

3LD274111000

50,02 $

Unit Price

FOOTREST 2

3LD274210000

3LD274211000

50,06 $

Unit Price

SPRING, TORSION (23X)

905082058300 905082058300

3,39 $

Unit Price

PIN, CLEVIS (23X)

902401010100 902401010100

10,04 $

Unit Price

PIN, COTTER

914012502000

914902502000

3,93 $

Unit Price

SIDE STAND

3BN273110300 3BN273110300

103,74 $

Unit Price

SPRING, MAIN STAND

905062927600

4KN271160000

12,80 $

Unit Price

LINK, SIDE STAND

42U273150100 42U273150100

12,96 $

Unit Price

BOLT(2GH)

901091047400

90109104E600

10,12 $

Unit Price

NUT, U

901851003700 901851003700

9,07 $

Unit Price

COVER, REAR FOOTREST

120274330000 120274330000

12,58 $

Unit Price

WASHER, PLATE (888)

902012027900 902012027900

1,68 $

Unit Price

FOOTREST, REAR 1

2GV274310000 2GV274310000

18,34 $

Unit Price

PIN, CLEVIS (1Y8)

902400600900

917010603200

6,72 $

Unit Price

PIN, COTTER (E57)

914011602000

914901602000

3,78 $

Unit Price

SUPPORT 1

3BN274320033 3BN274320033

Not available

BOLT, BUTTON

920170801600 920170801600

5,09 $

Unit Price

BRACKET 2

3BN274420033 3BN274420033

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the STAND / FOOTREST of your Yamaha DTE125 of 1996. Let us know if you have any questions.
