Displacement

Year

Model

Finish line

Parts catalogue

Parts diagram

ELECTRICAL 1

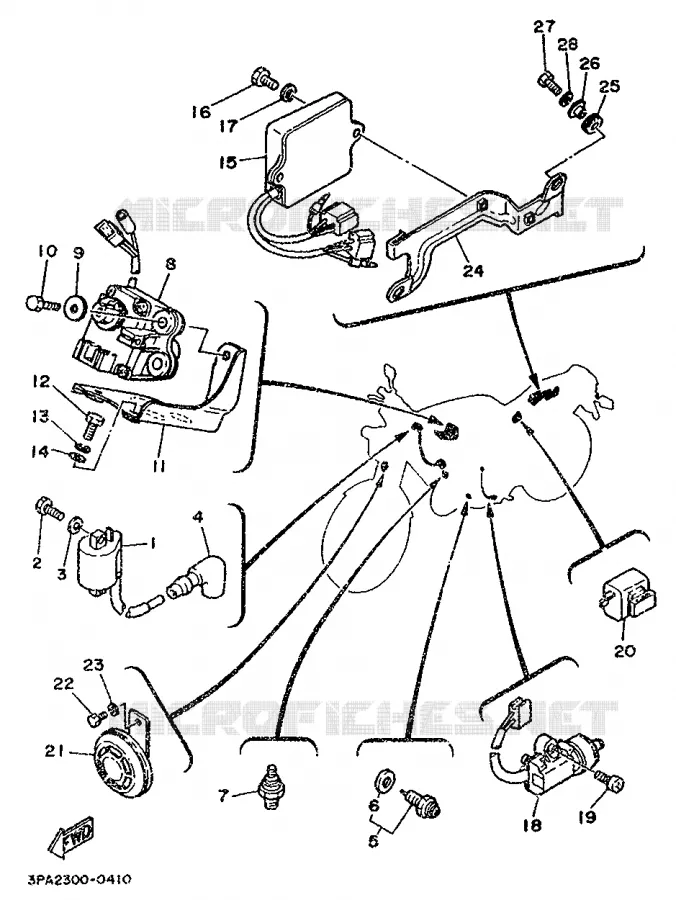

ELECTRICAL 2 FOR YAMAHA TZR 1991

ALTERNATIVE ENGINE

IGNITION COIL ASSY

2JN82310M000

Not available

BOLT (4MY)

970010602000

970070602000

2,42 $

Unit Price

WASHER(6A1)

929900610000

929950610000

1,46 $

Unit Price

PLUG CAP ASSY

2TV823700000

8DG823700000

51,40 $

Unit Price

NEUTRAL SWITCH ASSY

2H7825400000

4GY825401000

30,06 $

Unit Price

GASKET

341825430000

296825430000

2,51 $

Unit Price

THERMO UNIT

11H835910000 11H835910000

53,01 $

Unit Price

ASSEMBLAGE DE SERVO-MOTEUR

2RH858200000 2RH858200000

Not available

WASHER, PLATE

902010606700

902010638000

5,48 $

Unit Price

BOLT, HEXAGON

970010602500

970170602500

2,42 $

Unit Price

SUPPORT

2RH242160000 2RH242160000

Not available

BOLT, HEXAGON DEEP RECESS

973130601600

97D950601600

1,96 $

Unit Price

WASHER(6A1)

929900610000

929950610000

1,46 $

Unit Price

WASHER(6TA)

929010660000

929070660000

1,83 $

Unit Price

BLOC DE CONTROLE

2RH858300000 2RH858300000

Not available

BOLT, HEXAGON DEEP RECESS

973130601600

97D950601600

1,96 $

Unit Price

WASHER(6TA)

929010660000

929070660000

1,83 $

Unit Price

COMMUTATEUR

3NB825660000 3NB825660000

Not available

SCREW, PAN HEAD

901570507900

985070501400

2,23 $

Unit Price

RELAIS DES CLIGNOTANTS CPLT

34L833502000 34L833502000

Not available

HORN

33M833713000

2KG833710000

84,52 $

Unit Price

BOLT (661)

970030601200

970130601200

5,54 $

Unit Price

WASHER(6A1)

929900610000

929950610000

1,46 $

Unit Price

PLAQUE, PONT

2RH212430000 2RH212430000

Not available

GROMMET (1E5)

904801316300 904801316300

6,78 $

Unit Price

COLLAR (11G)

90387061F900 90387061F900

10,11 $

Unit Price

BOLT (4MY)

970010602000

970070602000

2,42 $

Unit Price

WASHER(6A1)

929900610000

929950610000

1,46 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the ELECTRICAL 2 of your Yamaha TZR125 of 1991. Let us know if you have any questions.

Select your Yamaha TZR model from 1991
