Displacement

Year

Model

Finish line

Parts catalogue

Parts diagram

GEAR SHIFT LEVER

FRAME FOR YAMAHA DTR 1991

FENDER

CADRE COMP.

3NCF11100014 3NCF11100014

Not available

CADRE COMP.

3NCF11100015 3NCF11100015

Not available

CADRE COMP.

3NVF11100013 3NVF11100013

Not available

BOLT(30W)

901051005200

90109101A000

15,10 $

Unit Price

WASHER, PLATE(6TC)

90201100E900

9020110M0500

7,82 $

Unit Price

NUT, SELFLOCKING (533 FRAME)

901851006000 901851006000

9,14 $

Unit Price

FLANGE BOLT

901050839100

901050877900

13,35 $

Unit Price

BOLT, FLANGE(JN5)

958110804500

958170804500

4,30 $

Unit Price

WASHER, PLATE (33N)

90201094G100 90201094G100

5,17 $

Unit Price

NUT, SELF-LOCKING (3Y2)

901850808900 901850808900

12,15 $

Unit Price

SUPPORT, SUPERIEUR-ARRIERE 1

3BN214250000 3BN214250000

Not available

JEU DE EMBLEMES2

3BN2141E0000 3BN2141E0000

Not available

TENSIONER

30X221780000 30X221780000

Not available

SHAFT

2K72148A0000 2K72148A0000

9,27 $

Unit Price

BUSH

10V221840000 10V221840000

4,81 $

Unit Price

WASHER, PLATE(8AT)

902010875300

90201081R900

7,11 $

Unit Price

BOLT, FLANGE

958060805000

958170805000

4,26 $

Unit Price

NUT (79V)

901850814300

901850813100

2,23 $

Unit Price

BOLT, SMALL FLANGE

950260801200

950270801200

3,94 $

Unit Price

BOLT, FLANGE

958160601200

958170601200

1,39 $

Unit Price

HELMET HANGER ASSY

55E213080000

5H0213080100

72,26 $

Unit Price

SCREW, COUNTERSUNK (21V)

901510602500 901510602500

2,16 $

Unit Price

FIXATION

3BN211900013 3BN211900013

Not available

FIXATION

3BN211900014 3BN211900014

Not available

FIXATION

3BN211900015 3BN211900015

Not available

BOLT, WITH WASHER(2WG)

901190617200 901190617200

3,94 $

Unit Price

BOLT, FLANGE

958110601200

958170601200

1,39 $

Unit Price

TROUSSE A OUTILS

3BN281000000 3BN281000000

Not available

SPANNER, SPECIAL

10V281350000 10V281350000

33,33 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

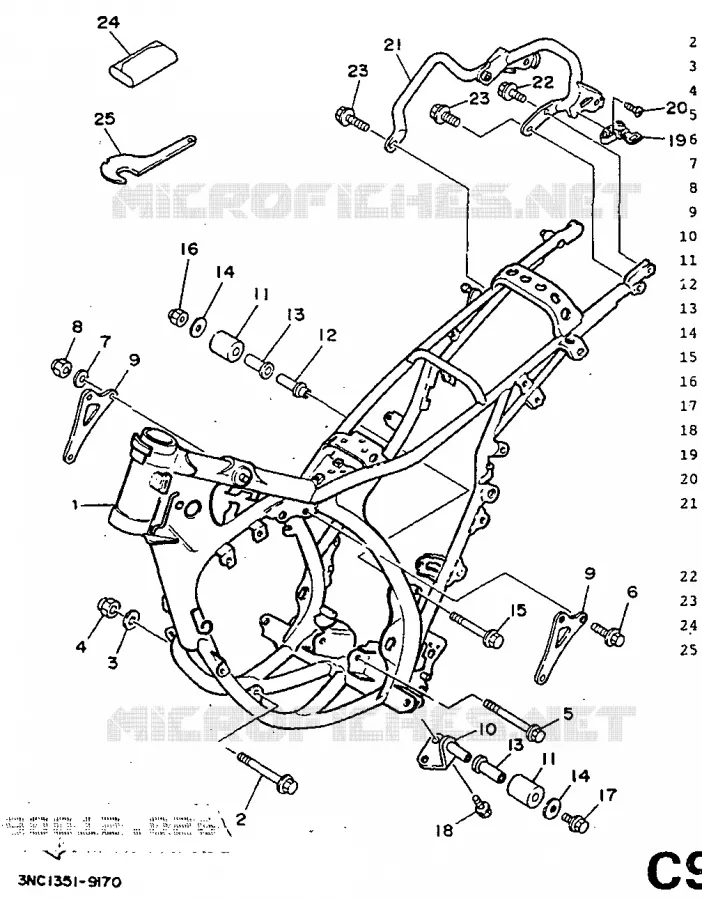

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRAME of your Yamaha DT125R of 1991. Let us know if you have any questions.
