SIDE COVER

SWINGARM FOR YAMAHA XT 1988

REAR SHOCK ABSORBER

REAR ARM

15A221100135 15A221100135

377,20 $

Unit Price

BUSH 1

15A221230000 15A221230000

27,87 $

Unit Price

BUSH, SOLID(12T)

903801813900 903801813900

20,57 $

Unit Price

COLLAR(J45)

15A221260000

90387124R800

24,20 $

Unit Price

COVER, THRUST 1

401221280100 401221280100

25,52 $

Unit Price

OIL SEAL (2J5)

931091802000 931091802000

17,01 $

Unit Price

GUARD SEAL

15A221510100 15A221510100

15,25 $

Unit Price

GUARD, CHAIN

10V221530000 10V221530000

21,98 $

Unit Price

BOLT, FLANGE

958010605000

958170605000

2,71 $

Unit Price

AXE, PIVOT

15A221410000 15A221410000

Not available

NUT, SELF LOCKING (1M1)

901851207200 901851207200

8,37 $

Unit Price

PLUG (3Y1)

903381111100 903381111100

3,36 $

Unit Price

SHIM

401221270000 401221270000

6,81 $

Unit Price

CARTER DE CHAINE

15A223100000 15A223100000

Not available

SCREW, PAN HEAD(3TJ)

925060601600

985070601600

2,29 $

Unit Price

WASHER(6A1)

929060610000

929950610000

1,46 $

Unit Price

WASHER, PLATE (4L0)

90201062A800 90201062A800

1,68 $

Unit Price

BOLT, WITH WASHER (10V)

901190506200 901190506200

3,53 $

Unit Price

EMBLEME, BRAS ARRIERE

47J2218A0000 47J2218A0000

Not available

NIPPLE, GREASE (36X)

937000600900 937000600900

15,10 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

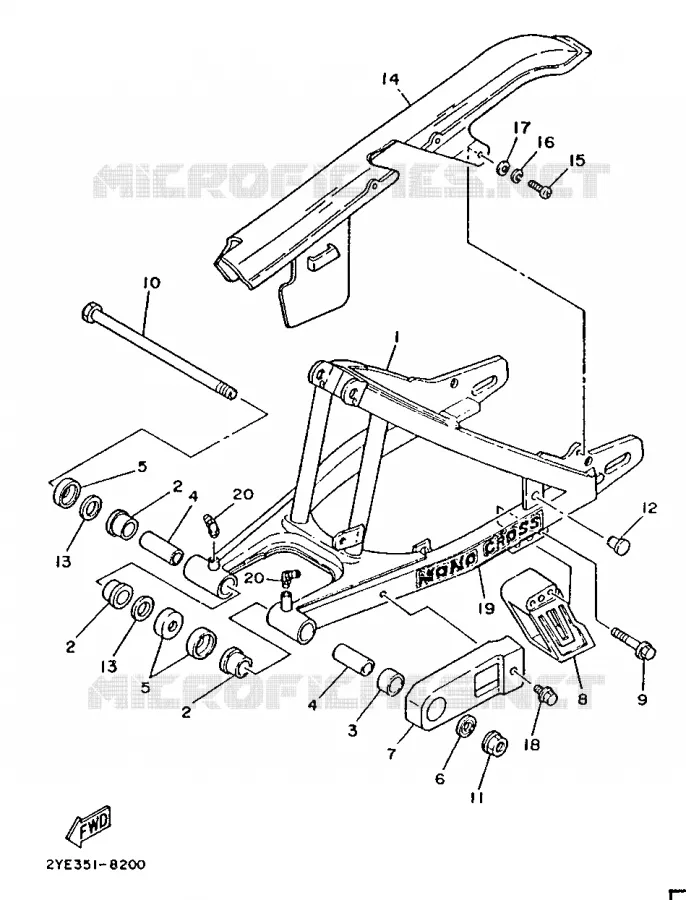

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SWINGARM of your Yamaha XT125 of 1988. Let us know if you have any questions.
