STEERING

FRONT FORK FOR YAMAHA YZ 1987

FUEL TANK

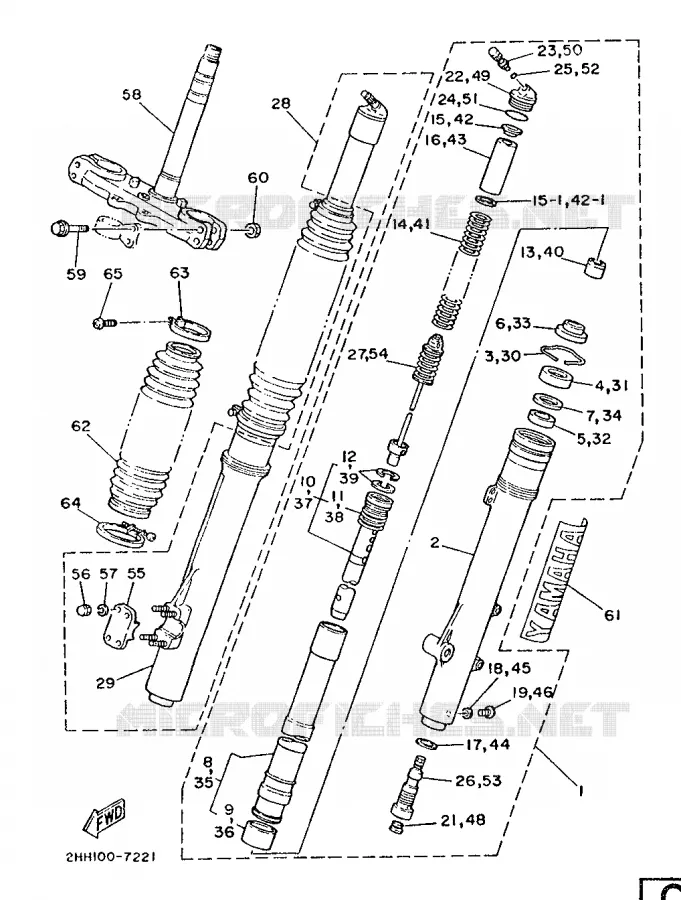

FRONT FORK Yamaha MOTO 125 1987 YZ YZ125
1
FOURCHE AVANT COMPLETE (G)

2HG23102M000   2HG23102M000

2HG23102M000
Not available
2
.BAS DE FOURCHE

2HH23126L000   2HH23126L000

2HH23126L000
Not available
3
RING, SNAP

4V423153L000   4V423153L000

4V423153L000

Unit Price

4
OIL SEAL

23X23145L000   23X23145L000

23X23145L000

Unit Price

5
METAL, SLIDE 1

4V423125L000  

5EB231250000
 4V423125L000

Unit Price

6
SEAL, DUST

23X23144L000   23X23144L000

23X23144L000

Unit Price

7
WASHER

4V423146L000   4V423146L000

4V423146L000

Unit Price

8
.TUBE DE FOURCHE NUE

2HH23110L000   2HH23110L000

2HH23110L000
Not available
9
FRONT FORK PISTON

4V423171L000   4V423171L000

4V423171L000

Unit Price

10
.CYLINDRE DE FOURCHE AV

2HG23170L000   2HG23170L000

2HG23170L000
Not available
11
..RESSORT, REBONDISSEMENT

2HH23151L000   2HH23151L000

2HH23151L000
Not available
12
..SEGMENT

4V423157L000   4V423157L000

4V423157L000
Not available
13
.BROCHE, CONIQUE

2HH23173L000   2HH23173L000

2HH23173L000
Not available
14
.RESSORT, FOURCHE AVANT

2HG23141L000   2HG23141L000

2HG23141L000
Not available
15
SEAT, SPRING UPPER

4V423142L000   4V423142L000

4V423142L000

Unit Price

15
.RONDELLE, PLATE

90201143L000   90201143L000

90201143L000
Not available
16
SPACER

1LV231181000   1LV231181000

1LV231181000

Unit Price

17
GASKET

2HH23158L000   2HH23158L000

2HH23158L000

Unit Price

18
GASKET, DRAIN PLUG

122231290000   122231290000

122231290000

Unit Price

19
SCREW, PAN HEAD(3XP)

4H7231190000  

985170400600
 4H7231190000

Unit Price

21
PLUG

55Y2312GM000   55Y2312GM000

55Y2312GM000

Unit Price

22
CAP BOLT

43M23111L000   43M23111L000

43M23111L000

Unit Price

23
AIR VALVE COMP.

23X23190L000   23X23190L000

23X23190L000

Unit Price

24
O-RING

4V423188L000  

4V423188L100
 4V423188L000

Unit Price

25
O-RING

3J2231470000   3J2231470000

3J2231470000

Unit Price

26
.CLAPET

2HG2316A0000   2HG2316A0000

2HG2316A0000
Not available
27
.ADJUSTER

2HH2318RM000   2HH2318RM000

2HH2318RM000
Not available
28
FOURCHE AVANT COMPLETE (D)

2HG23103M000   2HG23103M000

2HG23103M000
Not available
29
.BAS DE FOURCHE

2HH23126L000   2HH23126L000

2HH23126L000
Not available
30
RING, SNAP

4V423153L000   4V423153L000

4V423153L000

Unit Price

31
OIL SEAL

23X23145L000   23X23145L000

23X23145L000

Unit Price

32
METAL, SLIDE 1

4V423125L000  

5EB231250000
 4V423125L000

Unit Price

33
SEAL, DUST

23X23144L000   23X23144L000

23X23144L000

Unit Price

34
WASHER

4V423146L000   4V423146L000

4V423146L000

Unit Price

35
.TUBE DE FOURCHE NUE

2HH23110L000   2HH23110L000

2HH23110L000
Not available
36
FRONT FORK PISTON

4V423171L000   4V423171L000

4V423171L000

Unit Price

37
.CYLINDRE DE FOURCHE AV

2HG23170L000   2HG23170L000

2HG23170L000
Not available
38
..RESSORT, REBONDISSEMENT

2HH23151L000   2HH23151L000

2HH23151L000
Not available
39
..SEGMENT

4V423157L000   4V423157L000

4V423157L000
Not available
40
..BROCHE, CONIQUE

2HH23173L000   2HH23173L000

2HH23173L000
Not available
41
.RESSORT, FOURCHE AVANT

2HG23141L000   2HG23141L000

2HG23141L000
Not available
42
SEAT, SPRING UPPER

4V423142L000   4V423142L000

4V423142L000

Unit Price

43
.RONDELLE, PLATE

90201143L000   90201143L000

90201143L000
Not available
44
SPACER

1LV231181000   1LV231181000

1LV231181000

Unit Price

45
GASKET

2HH23158L000   2HH23158L000

2HH23158L000

Unit Price

46
GASKET, DRAIN PLUG

122231290000   122231290000

122231290000

Unit Price

47
SCREW, PAN HEAD(3XP)

4H7231190000  

985170400600
 4H7231190000

Unit Price

48
PLUG

55Y2312GM000   55Y2312GM000

55Y2312GM000

Unit Price

49
CAP BOLT

43M23111L000   43M23111L000

43M23111L000

Unit Price

50
AIR VALVE COMP.

23X23190L000   23X23190L000

23X23190L000

Unit Price

51
O-RING

4V423188L000  

4V423188L100
 4V423188L000

Unit Price

52
O-RING

3J2231470000   3J2231470000

3J2231470000

Unit Price

53
VALVE

2HG2316AM000   2HG2316AM000

2HG2316AM000

Unit Price

54
.ADJUSTER

2HH2318R0000   2HH2318R0000

2HH2318R0000
Not available
55
AXLE HOLDER

1LX23167L000   1LX23167L000

1LX23167L000

Unit Price

56
NUT

5Y3233930000   5Y3233930000

5Y3233930000

Unit Price

57
WASHER(6A1)

929900610000  

929950610000
 929900610000

Unit Price

58
TE DE FOURCHE INFERIEUR

2HG23340L039   2HG23340L039

2HG23340L039
Not available
59
BOULON, AVEC RONDELLE

901050846300   901050846300

901050846300
Not available
60
NUT, FLANGE(JN5)

957010850000  

957070850000
 957010850000

Unit Price

61
EMBLEME

1LX231080000   1LX231080000

1LX231080000
Not available
62
SOUFFLET

43M23191L000   43M23191L000

43M23191L000
Not available
63
BAND

43M23192L000   43M23192L000

43M23192L000

Unit Price

64
BAND

43M23489L000  

3LD234890000
 43M23489L000

Unit Price

65
SCREW, PAN HEAD

985060401800  

985070401800
 985060401800

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK of your Yamaha YZ125 of 1987. Let us know if you have any questions.
