CYLINDER

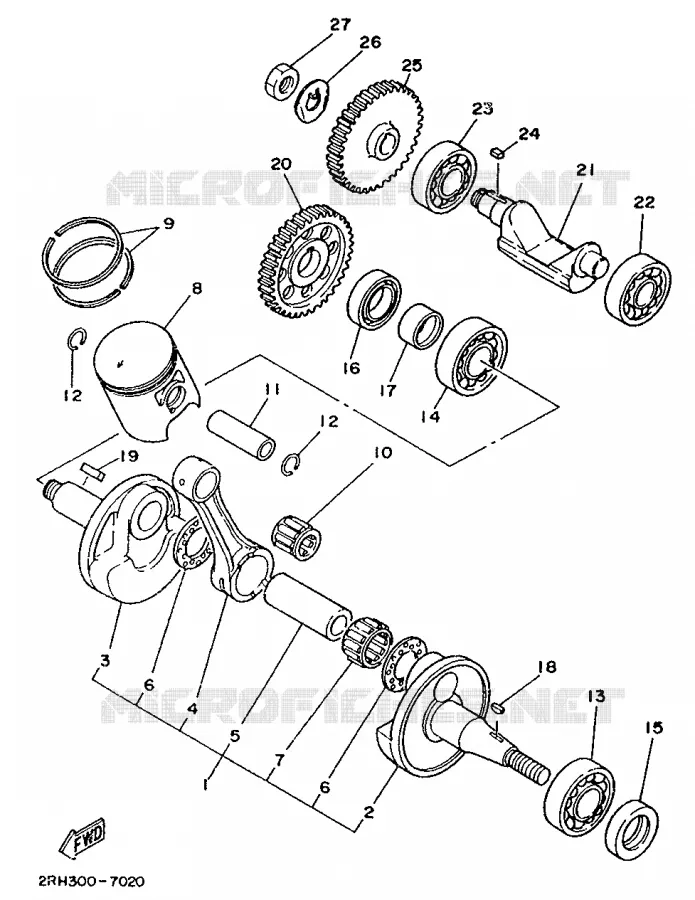

CRANKSHAFT / PISTON FOR YAMAHA TZR 1987

WATERPUMP

VILEBREQUIN COMPLET

2RH114000000 2RH114000000

Not available

.MASSOLOTTE DE VILEBREQUIN 1

2RH114120000 2RH114120000

Not available

.MASSOLOTTE DE VILEBREQUIN 2

2RH114220000 2RH114220000

Not available

ROD, CONNECTING

2RH116510000

4FU116510000

66,24 $

Unit Price

PIN, CRANK 1

37F116810000 37F116810000

51,61 $

Unit Price

WASHER(47X)

902092229200

902092225700

24,77 $

Unit Price

BEARING, CYLINDRICAL(3XP)

93310523T300

93310523D200

86,63 $

Unit Price

PISTON (STD)

2RH116310035 2RH116310035

Not available

PISTON (0.25MM O/S)

2RH116350000 2RH116350000

Not available

PISTON (0.50MM O/S)

2RH116360000 2RH116360000

Not available

JEU DE SEGMENTS (STD)

2RH116100000 2RH116100000

Not available

JEU DE SEGMENTS (1ER O/S)

2RH116101000 2RH116101000

Not available

JEU DE SEGMENTS (2E O/S)

2RH116102000 2RH116102000

Not available

BEARING, CYLINDRICAL(2YY)

93310316H700

93310316C900

22,08 $

Unit Price

PIN, PISTON

137116330000

137116331000

24,63 $

Unit Price

CIRCLIP(1AR)

4V2116340000

934501712900

1,78 $

Unit Price

BEARING(43G)

933062056200 933062056200

64,35 $

Unit Price

BEARING(1TG)

933063054300

933063055600

81,01 $

Unit Price

OIL SEAL(43G)

931022533100 931022533100

17,11 $

Unit Price

OIL SEAL(3KX)

931033209900

931033217100

38,31 $

Unit Price

COLLAR(2RH)

90387202T900 90387202T900

44,69 $

Unit Price

KEY WOODRUFF 146115450000

902800304500

902800301700

6,72 $

Unit Price

KEY, STRAIGHT (8R4)

902820504700 902820504700

9,06 $

Unit Price

DRIVE GEAR

10V115360100 10V115360100

95,82 $

Unit Price

POIDS 1

2RH114540000 2RH114540000

Not available

BEARING

933063021000

933063021100

50,78 $

Unit Price

BEARING(37F)

933062033500 933062033500

37,11 $

Unit Price

KEY, STRAIGHT (36F)

902820505800 902820505800

2,76 $

Unit Price

BALANCIER

37F115300000 37F115300000

Not available

WASHER, LOCK(2RH)

902151227200 902151227200

15,10 $

Unit Price

NUT(2RH)

901701237000 901701237000

23,93 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKSHAFT / PISTON of your Yamaha TZR125L of 1987. Let us know if you have any questions.
