COVER 1

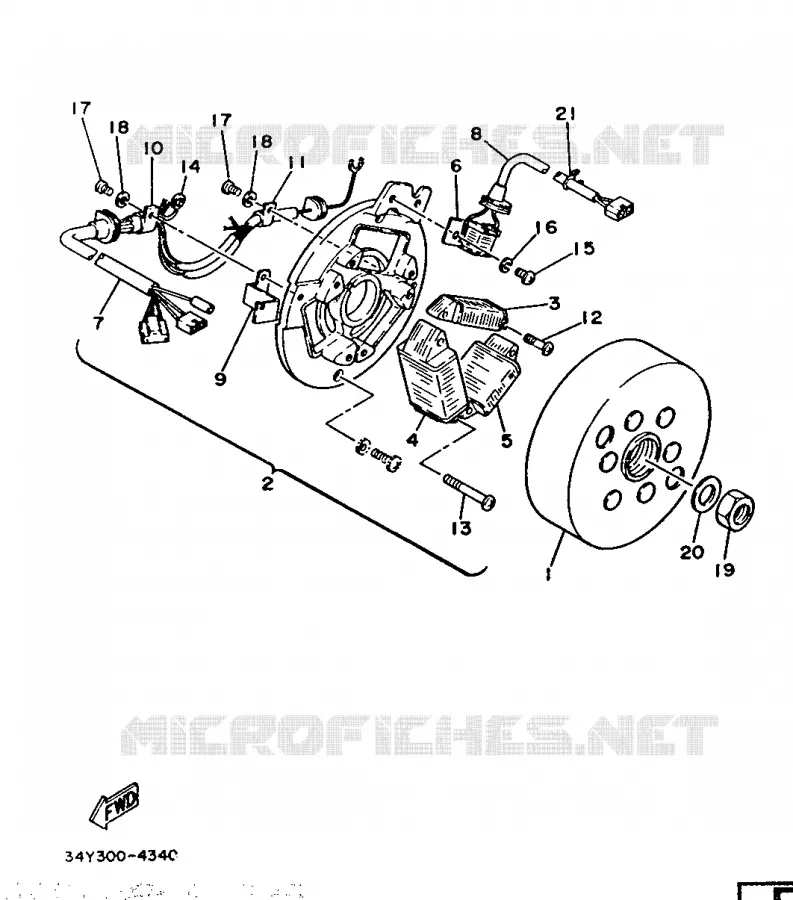

IGNITION FOR YAMAHA DTLC 1987

INDICATOR

ROTOR ASSY

34X85550M100 34X85550M100

254,64 $

Unit Price

BASE ASSY

34Y85560M000

34Y85560M100

331,21 $

Unit Price

CHARGE COIL

34Y85520M100

34Y85520M200

114,53 $

Unit Price

LIGHTING COIL 1

34Y81313M000

3BN813130000

86,80 $

Unit Price

LIGHTING COIL 2

34Y81314M000

3BN813140000

109,99 $

Unit Price

PULSER COIL

34X85595M000 34X85595M000

Not available

.CORDON

34Y8131XM000 34Y8131XM000

Not available

.FIL

34X8132YM000 34X8132YM000

Not available

.COLLIER

34X81328M100 34X81328M100

Not available

CLAMP (2T4)

904610503600 904610503600

3,83 $

Unit Price

.COLLIER 1

34X81528M000 34X81528M000

Not available

SCREW, PAN HEAD

985110401600

985170401600

2,23 $

Unit Price

SCREW, PAN HEAD

901570404500

985170402500

2,10 $

Unit Price

.BORNE, MASSE 1

8R485568M000 8R485568M000

Not available

SCREW, PAN HEAD (713)

985010400800

985800400800

3,58 $

Unit Price

YBS67-4 WASHER, SPRING

929010410000

929900410000

1,68 $

Unit Price

SCREW, PAN HEAD W-WASHER

985010400600

999990442700

2,36 $

Unit Price

YBS67-4 WASHER, SPRING

929010410000

929900410000

1,68 $

Unit Price

NUT(3EF)

901791232300

901791265700

7,77 $

Unit Price

WASHER, PLATE(1HR)

90201123L600 90201123L600

13,14 $

Unit Price

CLAMP (3Y2)

904641603900 904641603900

1,73 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the IGNITION of your Yamaha DT125LC of 1987. Let us know if you have any questions.
