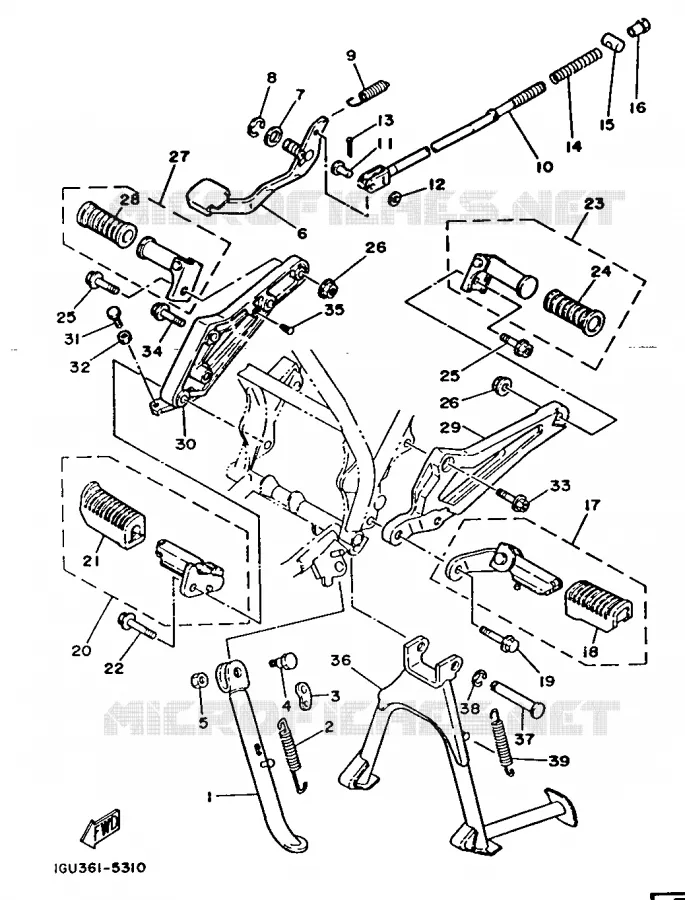

STAND / FOOTREST FOR YAMAHA RDLC 1986

COVER 1

BEQUILLE, LATERALE

10W273110033 10W273110033

Not available

RESSORT, TENSION

905073202000 905073202000

Not available

BIELLETTE, BEQUILLE LATERALE

458273150000 458273150000

Not available

BOULON

90109103A300 90109103A300

Not available

ECROU

953061070000 953061070000

Not available

PEDALE, FREIN

10W272110000 10W272110000

Not available

WASHER PLATE 611441260000

902011421200 902011421200

7,81 $

Unit Price

CIRCLIP (137)

934301001500 934301001500

3,62 $

Unit Price

SPRING, TENSION

905062022100 905062022100

10,93 $

Unit Price

TIGE DE FREIN

10W272310000 10W272310000

Not available

PIN, WITH HOLE (248-27228-00)

902400600600 902400600600

3,39 $

Unit Price

WASHER(6TA)

929010660000

929070660000

1,83 $

Unit Price

PIN, COTTER

914012501500

914902502000

3,93 $

Unit Price

SPRING, (180-27236-00)

905011024500 905011024500

4,23 $

Unit Price

PIN 1562723700

902491200800 902491200800

5,17 $

Unit Price

NUT (25K)

901790617600

901790641100

3,46 $

Unit Price

REPOSE-PIEDS AV (G)

10W274100133 10W274100133

Not available

COVER, FOOTREST

4L0274230000 4L0274230000

35,80 $

Unit Price

BOLT, FLANGE

958161003500

958171003500

7,09 $

Unit Price

REPOSE-PIEDS AV (D)

10W274200133 10W274200133

Not available

COVER, FOOTREST

4L0274230000 4L0274230000

35,80 $

Unit Price

FLANGE BOLT

958161005000

90105100A400

14,03 $

Unit Price

REPOSE-PIEDS AR 1

10W274300000 10W274300000

Not available

COVER, REAR FOOTREST

120274330000 120274330000

12,58 $

Unit Price

BOULON, A COLLERETTE

958061003000 958061003000

Not available

NUT, FLANGE(8AB)

957061050000

957071050000

2,65 $

Unit Price

REPOSE-PIEDS AR (D)

10W274400000 10W274400000

Not available

COVER, REAR FOOTREST

120274330000 120274330000

12,58 $

Unit Price

SUPPORT 2

10W274420100 10W274420100

Not available

SUPPORT 3

10W274430100 10W274430100

Not available

BOLT, HEXAGON

901010628800

970170602500

2,42 $

Unit Price

NUT(650)

953030670000

953800670000

4,53 $

Unit Price

BOLT, FLANGE(3GD)

958111002500

958171002500

7,09 $

Unit Price

BOLT, FLANGE

958111003500

958171003500

7,09 $

Unit Price

CROCHET 1

4L02744E0000 4L02744E0000

Not available

BEQUILLE, CENTRALE

1GU271110033 1GU271110033

Not available

AXE, BEQUILLE CENTRALE

10W271120000 10W271120000

Not available

CIRCLIP (137)

934301001500 934301001500

3,62 $

Unit Price

SPRING, TENSION (1T5)

905063514900 905063514900

12,68 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the STAND / FOOTREST of your Yamaha RD125LC of 1986. Let us know if you have any questions.
