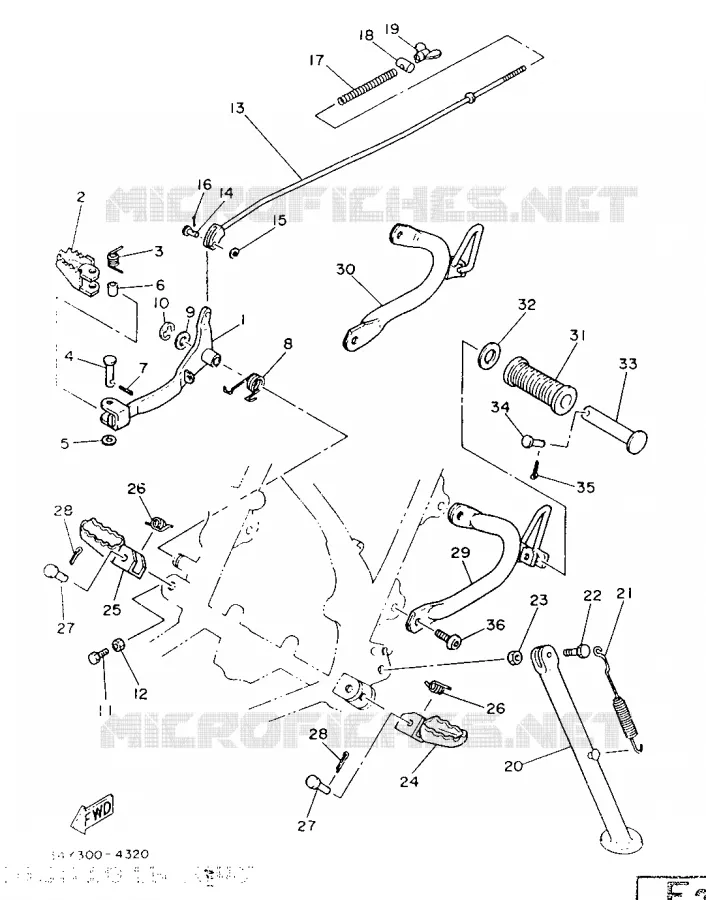

STAND / FOOTREST FOR YAMAHA DTLC 1986

COVER 1

BRAKE PEDAL

34X272110000

34X272000000

27,36 $

Unit Price

PEDALE, FREIN

3R9272420000 3R9272420000

Not available

RESSORT, TORSION

905082041400 905082041400

Not available

PIN, CLEVIS (3R9)

917010803200 917010803200

3,39 $

Unit Price

WASHER, PLAIN (663)

929010860000

929900860000

1,68 $

Unit Price

COLLAR (7G5)

903870876200

903870878500

4,75 $

Unit Price

PIN, COTTER

914012501500

914902502000

3,93 $

Unit Price

SPRING, BRAKE PEDAL

10V272160200 10V272160200

5,21 $

Unit Price

WASHER, PLATE (525)

902011254100 902011254100

6,54 $

Unit Price

CIRCLIP (4V2)

934300903800 934300903800

2,78 $

Unit Price

BOLT, HEXAGON W-W DEEP RECESS

973060602000

97E950652000

2,03 $

Unit Price

NUT

953060670000 953060670000

0,15 $

Unit Price

TIGE DE FREIN

34X272310000 34X272310000

Not available

PIN, WITH HOLE (248-27228-00)

902400600600 902400600600

3,39 $

Unit Price

YBS66-6 WASHER, PLAIN

929010620000

929900620000

1,68 $

Unit Price

PIN, COTTER

914012501500

914902502000

3,93 $

Unit Price

SPRING, (180-27236-00)

905011024500 905011024500

4,23 $

Unit Price

PIN 1562723700

902491200800 902491200800

5,17 $

Unit Price

NUT, WING (1K5)

901750601300 901750601300

4,26 $

Unit Price

SIDE STAND

34X273110033

53V273110100

81,54 $

Unit Price

SPRING (460)

905072900900 905072900900

21,55 $

Unit Price

BOULON

901091063500 901091063500

Not available

NUT, U

901851003700 901851003700

9,07 $

Unit Price

FOOTREST 1

22W274110090

22W274110190

26,62 $

Unit Price

FOOTREST 2

22W274210090

22W274210190

28,65 $

Unit Price

SPRING, TORSION (214-27426-00)

905082002300 905082002300

7,77 $

Unit Price

PIN, CLEVIS (2A6)

902400808400

917010803800

3,93 $

Unit Price

PIN, COTTER

914012501500

914902502000

3,93 $

Unit Price

SUPPORT 1

34Y2743200FH 34Y2743200FH

Not available

SUPPORT 2

34Y2744200FH 34Y2744200FH

Not available

COVER, REAR FOOTREST

120274330000 120274330000

12,58 $

Unit Price

WASHER, PLATE (888)

902012027900 902012027900

1,68 $

Unit Price

FOOTREST, REAR 1

120274310000

2GV274310000

18,34 $

Unit Price

PIN, CLEVIS (1Y8)

902400600900

917010603200

6,72 $

Unit Price

PIN, COTTER (E57)

914011601500

914901602000

3,78 $

Unit Price

BOLT (34L)

901090878900 901090878900

5,61 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the STAND / FOOTREST of your Yamaha DT 125 LC 22CV of 1986. Let us know if you have any questions.
