CYLINDER HEAD FOR YAMAHA VMAX 2002

CRANKSHAFT / PISTON

CYLINDER HEAD ASSY

1FK111010200

1FK111010100

2 860,21 $

Unit Price

PIN, DOWEL(3XW)

918081602300 918081602300

4,63 $

Unit Price

BOLT, WASHER BASED (4H7)

901050615300 901050615300

4,04 $

Unit Price

PLUG, STRAIGHT SCREW (26H)

903402009000 903402009000

15,27 $

Unit Price

GUIDE, INTAKE VALVE

30X111331000 30X111331000

43,86 $

Unit Price

BOLT, STUD(2GG)

956170862000 956170862000

5,65 $

Unit Price

CYLINDER HEAD ASSY

1FKW11120200 1FKW11120200

2 375,59 $

Unit Price

PIN, DOWEL(3XW)

918081602300 918081602300

4,63 $

Unit Price

BOLT, WASHER BASED (4H7)

901050615300 901050615300

4,04 $

Unit Price

PLUG, STRAIGHT SCREW (26H)

903402009000 903402009000

15,27 $

Unit Price

GUIDE, INTAKE VALVE

30X111331000 30X111331000

43,86 $

Unit Price

BOLT, STUD 3

956170863500 956170863500

5,94 $

Unit Price

JOINT 1

26H124690100 26H124690100

19,06 $

Unit Price

O-RING (26H)

932101662900 932101662900

7,71 $

Unit Price

O-RING (1L9)

932101832200 932101832200

6,88 $

Unit Price

O-RING (26H)

932102163100 932102163100

8,16 $

Unit Price

PIN, SPRING

902540300800

916903002500

6,13 $

Unit Price

SPARK PLUG DPR8EA-9

947010024100 947010024100

5,32 $

Unit Price

BOUGIE D, ALLUMAGE

947010024200 947010024200

Not available

GASKET, CYLINDER HEAD 1

26H111810000

26H111810200

56,36 $

Unit Price

PIN, DOWEL

995301401600 995301401600

8,50 $

Unit Price

NUT (26H)

901791041400 901791041400

9,77 $

Unit Price

WASHER, PLATE (26H)

90201102G900 90201102G900

7,77 $

Unit Price

COUVERCLE, CULASSE 1

1FK111910000 1FK111910000

Not available

BOLT, WITH WASHER(2JE)

901190621800 901190621800

7,50 $

Unit Price

WASHER(46X)

902091126200 902091126200

8,37 $

Unit Price

RUBBER, MOUNT 1

2GH1111G0000 2GH1111G0000

6,80 $

Unit Price

PLUG (31M)

903381015000 903381015000

3,75 $

Unit Price

GASKET, HEAD COVER 1

26H111930000

26H111930100

61,31 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

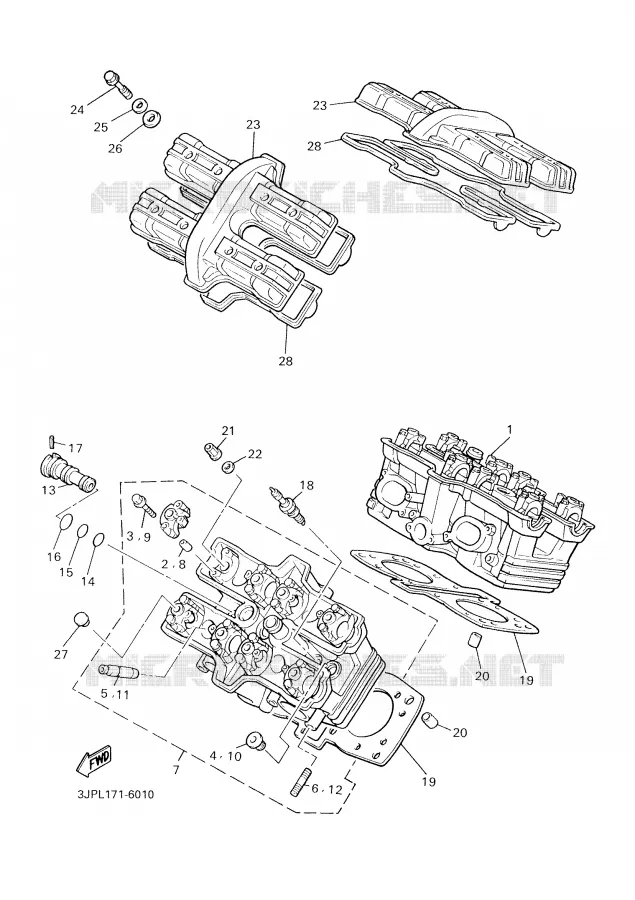

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CYLINDER HEAD of your Yamaha VMX12 of 2002. Let us know if you have any questions.
