ELECTRICAL 1

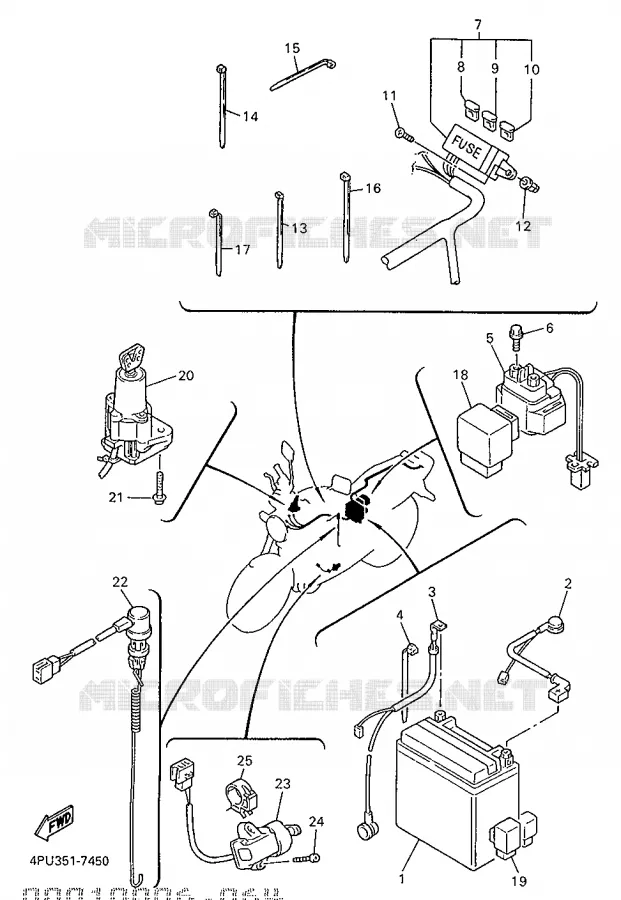

ELECTRICAL 2 FOR YAMAHA XJR 1998

YTX14BS YUASA BATTERY - SA

3XW821000100

YTX14BS00000

171,84 $

Unit Price

FIL, POSITIF

4KG821150000 4KG821150000

Not available

FIL, NEGATIF

4KG821160000 4KG821160000

Not available

CLAMP(4FM)

904641307300

904641519500

4,93 $

Unit Price

STARTER RELAY ASSY (MS5E-491)

4KG819400000

4KG819401100

124,20 $

Unit Price

BOLT, SMALL FLANGE

950270600800 950270600800

2,10 $

Unit Price

FAISCEAU DE FILS COMPLET

4PU825903000 4PU825903000

Not available

FUSE (12V 30A)

1AE821510000 1AE821510000

3,51 $

Unit Price

FUSE (12V 15A)

36Y821510000 36Y821510000

6,55 $

Unit Price

FUSE

2KW821510000 2KW821510000

3,63 $

Unit Price

SCREW, TRUSS TAP.

977076001600 977076001600

1,76 $

Unit Price

PLUG(4BP)

903380822600 903380822600

2,64 $

Unit Price

CLAMP

5Y9124910000 5Y9124910000

2,07 $

Unit Price

BAND

904651315200

1UA825910000

3,11 $

Unit Price

CLAMP(4FM)

904641307300

904641519500

4,93 $

Unit Price

BAND

904651315200

1UA825910000

3,11 $

Unit Price

CLAMP

904641307700 904641307700

5,61 $

Unit Price

RELAIS COMPLET

4EP819500000 4EP819500000

Not available

RELAIS COMPLET

4BH8195A0000 4BH8195A0000

Not available

CONTACTEUR A CLEF D ANTIVOL

4PU825010000 4PU825010000

Not available

BOLT

90109080G500

901090819600

6,37 $

Unit Price

COMMUTATEUR CPLT

3YF825300100 3YF825300100

Not available

SIDE STAND SWITCH

3LD825669000

3LD825669100

81,11 $

Unit Price

SCREW, PAN HEAD

901570507900

985070501400

2,23 $

Unit Price

CLAMP(4GY)

904641019000 904641019000

7,93 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the ELECTRICAL 2 of your Yamaha XJR1200SP of 1998. Let us know if you have any questions.
