REAR BRAKE MASTER CYLINDER

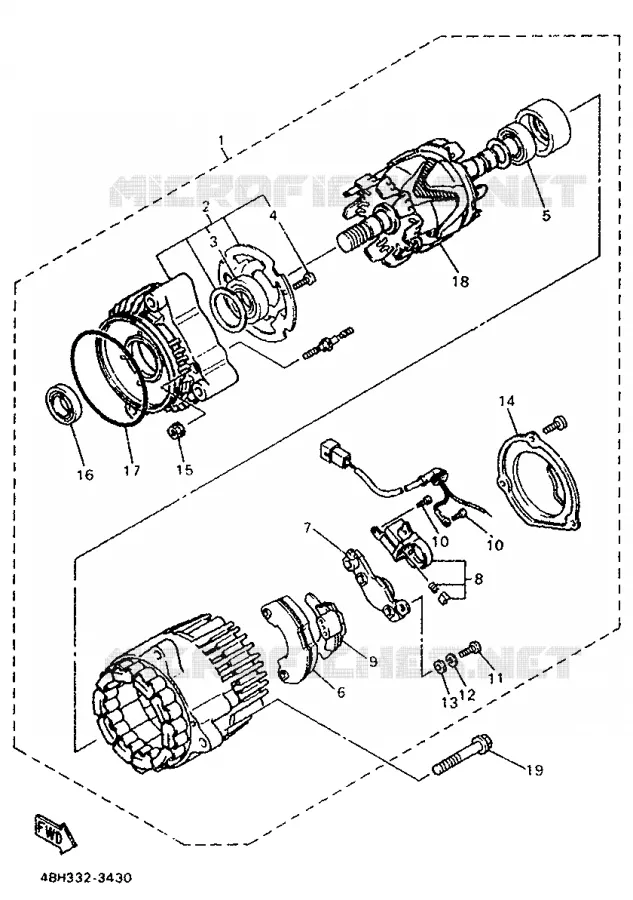

IGNITION FOR YAMAHA XJR 1997

IGNITION PICKUP

GENERATRICE A C.A.

4KG816000000 4KG816000000

Not available

STATOR ASSY

4KG816340000 4KG816340000

942,69 $

Unit Price

BEARING(3DL)

4BH816430000

933062022600

46,54 $

Unit Price

SCREW, BINDING

4BH816450000

989070401400

0,68 $

Unit Price

.RONDELLE 1 RONDELLE 1

4BH818431000 4BH818431000

Not available

RECTIFIER ASSY

4BH819700000 4BH819700000

345,93 $

Unit Price

VOLTAGE REGULATOR ASSY

36Y819105000 36Y819105000

706,61 $

Unit Price

BRUSH HOLDER ASSY

3FV816190000 3FV816190000

82,70 $

Unit Price

COVER, RECTIFIER

4BH819720000 4BH819720000

23,21 $

Unit Price

SCREW

3FV816450000 3FV816450000

19,82 $

Unit Price

SCREW, PAN HEAD(4MY)

985070501800 985070501800

2,29 $

Unit Price

YBS67-5 WASHER, SPRING

929010510000

929900510000

1,68 $

Unit Price

WASHER, PLAIN (646)

929900560000 929900560000

1,09 $

Unit Price

COVER ASSY

4BH816040000 4BH816040000

60,68 $

Unit Price

NUT, FLANGE(3GM)

957070550000 957070550000

2,29 $

Unit Price

OIL SEAL

36Y816385000 36Y816385000

22,68 $

Unit Price

O-RING

2KT816425000 2KT816425000

28,79 $

Unit Price

ROTOR ASSY

4BH816600000 4BH816600000

721,30 $

Unit Price

BOLT, WASHER BASED(4JG)

90105080A500

901050872100

10,46 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the IGNITION of your Yamaha XJR1200SP of 1997. Let us know if you have any questions.
