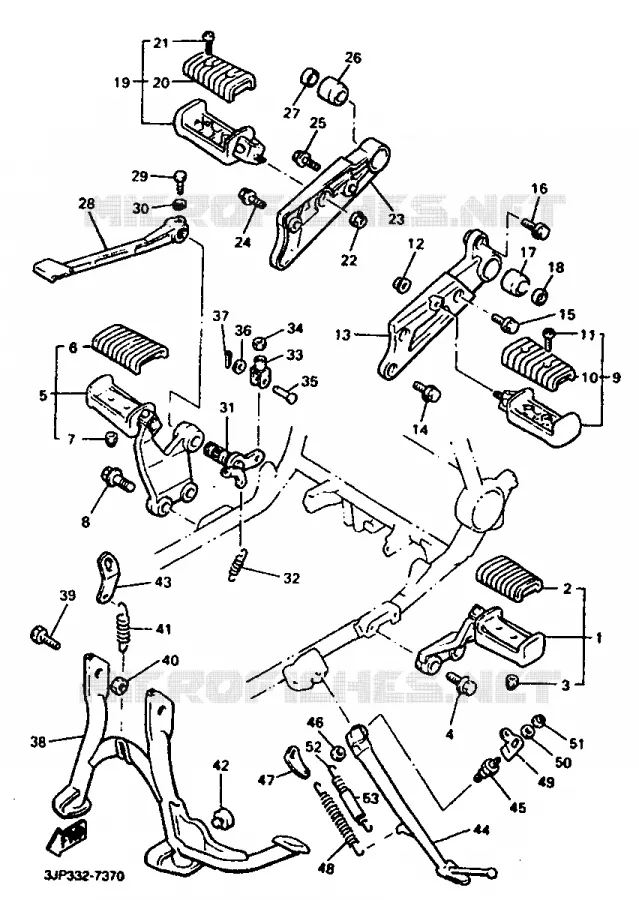

STAND / FOOTREST FOR YAMAHA VMAX 1997

REAR BRAKE MASTER CYLINDER

FRONT FOOTREST ASSY (LEFT)

1UT274101000 1UT274101000

185,83 $

Unit Price

COVER, FOOTREST

1NH274130000 1NH274130000

29,18 $

Unit Price

NUT, SELF-LOCKING

956070610000

956170610000

8,11 $

Unit Price

BOLT, SMALL FLANGE

950241003000 950241003000

9,71 $

Unit Price

FRONT FOOTREST ASSY (RIGHT)

1UT274201000 1UT274201000

185,90 $

Unit Price

COVER, FOOTREST

1NH274130000 1NH274130000

29,18 $

Unit Price

NUT, SELF-LOCKING

956070610000

956170610000

8,11 $

Unit Price

BOLT, SMALL FLANGE

950241003000 950241003000

9,71 $

Unit Price

REAR FOOTREST ASSY 1

1UT274300100 1UT274300100

130,14 $

Unit Price

COVER, REAR FOOTREST

1NH274330000 1NH274330000

29,67 $

Unit Price

SCREW, PAN

985170601200 985170601200

2,10 $

Unit Price

NUT, FLANGE(8AB)

957071050000 957071050000

2,65 $

Unit Price

BRACKET 2

1FK274420000 1FK274420000

134,29 $

Unit Price

BOLT, FLANGE (3JPE)

950240801600 950240801600

3,62 $

Unit Price

BOLT, FLANGE(2UJ)

950240802000 950240802000

5,25 $

Unit Price

BOLT, WASHER BASED(3JP)

90105081A100 90105081A100

5,18 $

Unit Price

AMORTISSEUR, REPOSE-PIEDS

28H274140000 28H274140000

Not available

BUTTE

26H2743E0000 26H2743E0000

Not available

REAR FOOTREST ASSY 2

1UT274400100 1UT274400100

130,16 $

Unit Price

COVER, REAR FOOTREST

1NH274330000 1NH274330000

29,67 $

Unit Price

SCREW, PAN

985170601200 985170601200

2,10 $

Unit Price

NUT, FLANGE(8AB)

957071050000 957071050000

2,65 $

Unit Price

SUPPORT 3

1FK274430000 1FK274430000

Not available

BOLT, FLANGE(2UJ)

950240802000 950240802000

5,25 $

Unit Price

BOLT, FLANGE (3JPE)

950240803000 950240803000

5,25 $

Unit Price

DAMPER, FOOTREST

26H274140000 26H274140000

Not available

BUTTE

26H2743E0000 26H2743E0000

Not available

PEDAL, BRAKE

1FK272110093 1FK272110093

63,68 $

Unit Price

BOLT (1J7)

901090646800 901090646800

5,48 $

Unit Price

WASHER(6A1)

929030610000

929950610000

1,46 $

Unit Price

SHAFT, BRAKE PEDAL

1FK272120000 1FK272120000

52,19 $

Unit Price

SPRING, TENSION (23X)

905061830500 905061830500

5,54 $

Unit Price

JOINT

47X272220000 47X272220000

19,94 $

Unit Price

NUT, HEXAGON SMALL

953070870000

953170870000

1,76 $

Unit Price

PIN W-HOLE 307181180000

902400801300 902400801300

7,43 $

Unit Price

WASHER, PLATE 1562722600

902010808300 902010808300

6,72 $

Unit Price

PIN, COTTER (E57)

914011601200

914901602000

3,78 $

Unit Price

STAND, MAIN

1UT2711101R4 1UT2711101R4

298,42 $

Unit Price

BOLT(1TX)

901091065800

90109101E600

22,83 $

Unit Price

NUT, SELF LOCKING (3G1)

901851009100 901851009100

9,31 $

Unit Price

SPRING, TENSION (4L0)

905064522200 905064522200

18,13 $

Unit Price

STOPPER, MAIN STAND

371271140000 371271140000

12,04 $

Unit Price

BIELLETTE, BEQUILLE CENTRALE

1FK271150000 1FK271150000

Not available

BEQUILLE, LATERALE

1FK2731100R4 1FK2731100R4

Not available

BOLT (1FK)

90109107A200 90109107A200

Not available

NUT, U

901851003700 901851003700

9,07 $

Unit Price

SPRING, TENSION (4K0)

905062622500 905062622500

9,95 $

Unit Price

CROCHET, BEQUILLE LATERALE

1FK273520000 1FK273520000

Not available

WASHER, PLATE

902010638000 902010638000

5,48 $

Unit Price

NUT, SELF-LOCKING

956070610000

956170610000

8,11 $

Unit Price

SPRING, TENSION (4K0)

905061822400 905061822400

7,45 $

Unit Price

GUIDE, SIDE STAND

1TX273510000 1TX273510000

9,27 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the STAND / FOOTREST of your Yamaha VMX12 of 1997. Let us know if you have any questions.
