SWINGARM

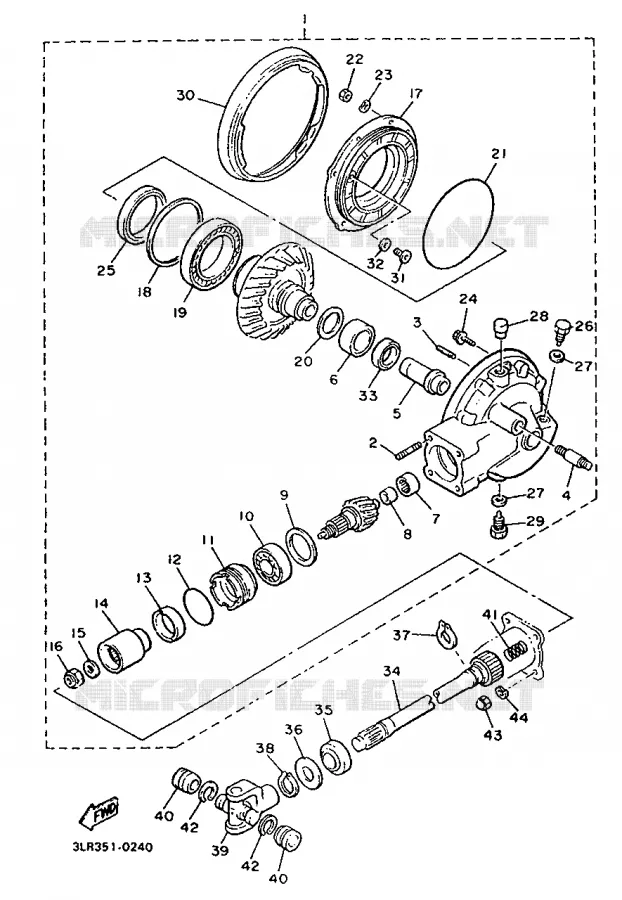

FINAL DRIVE SHAFT / GEAR COUPLING FOR YAMAHA VMAX 1993

REAR SHOCK ABSORBER

REAR AXLE GEAR CASE

1FK461010200

999990306100

1 853,02 $

Unit Price

BOLT, STUD (5E5)

901161059300

901161036100

12,94 $

Unit Price

BOLT, STUD(2GG)

901160842700

956170862000

5,65 $

Unit Price

BOLT, STUD (4H7)

901161024900 901161024900

21,49 $

Unit Price

.COLLIER DE GUIDE

1FK461530000 1FK461530000

Not available

BRG, CYL-CAL ROLLER 80G KY

933114372900 933114372900

97,78 $

Unit Price

BEARING ASSY

933174151000

2H7461020000

67,20 $

Unit Price

RACE, INNER

2H7461220000 2H7461220000

20,50 $

Unit Price

.CALE, BUTEE (0.30T)

1J717537Y000 1J717537Y000

Not available

SHIM, THRUST (0.30T)

1J717537Y030 1J717537Y030

9,51 $

Unit Price

SHIM, THRUST (0.50T)

1J717537Y050 1J717537Y050

9,51 $

Unit Price

BRG, R-B 6305RB1 62MM 245G KY

933063053300 933063053300

129,72 $

Unit Price

RETAINER, BEARING

4H7461250000 4H7461250000

37,45 $

Unit Price

O-RING (4H7)

932106042600 932106042600

11,29 $

Unit Price

OIL SEAL (4H7)

931013809800 931013809800

24,06 $

Unit Price

COUPLING, GEAR

4H7461230100 4H7461230100

260,08 $

Unit Price

WASHER, PLATE(3JP)

90201166R500 90201166R500

16,44 $

Unit Price

.ECROU

901791566100 901791566100

Not available

BEARING HOUSING

1FK461520100 1FK461520100

286,69 $

Unit Price

.COURONNE (0.25T)

1J7461170Y02 1J7461170Y02

Not available

SHIM, RING GEAR (0.30T)

1J746117Y030 1J746117Y030

5,70 $

Unit Price

SHIM, RING GEAR (0.40T)

1J746117Y040 1J746117Y040

5,70 $

Unit Price

SHIM, RING GEAR (0.50T)

1J746117Y050 1J746117Y050

5,70 $

Unit Price

BRG, R-B 16014C2 110MM 433G KY

933160140300 933160140300

113,04 $

Unit Price

WASHER, THRUST

22U461180012 22U461180012

10,05 $

Unit Price

WASHER, THRUST

22U461180014 22U461180014

10,05 $

Unit Price

WASHER, THRUST

22U461180016 22U461180016

10,05 $

Unit Price

WASHER, THRUST

22U461180018 22U461180018

10,05 $

Unit Price

WASHER, THRUST

22U461180020 22U461180020

10,05 $

Unit Price

.JOINT TORIQUE

932105649800 932105649800

Not available

NUT(6L2)

953330860000 953330860000

3,75 $

Unit Price

WASHER(6TA)

929070870000 929070870000

0,68 $

Unit Price

BOLT, FLANGE(8AB)

958171005000 958171005000

7,14 $

Unit Price

OIL SEAL (4H7)

931027016700 931027016700

31,18 $

Unit Price

PLUG, STRAIGHT SCREW(3FA)

903401413200 903401413200

8,37 $

Unit Price

GASKET

214111980100 214111980100

3,98 $

Unit Price

BREATHER COMP.

2H7175900000 2H7175900000

26,25 $

Unit Price

PLUG, STRGHT SCREW

903401414900 903401414900

24,80 $

Unit Price

COVER, HOUSING

1FK461540000 1FK461540000

33,31 $

Unit Price

STOPPER, RING GEAR

1FK461560000 1FK461560000

19,48 $

Unit Price

SHIM, STOPPER

1FK461570015 1FK461570015

0,59 $

Unit Price

SHIM, STOPPER

1FK461570020 1FK461570020

0,59 $

Unit Price

OIL SEAL (30X42X7-1J7)

931013008400 931013008400

21,44 $

Unit Price

ARBRE DE TRANSMISSION

1FK461720000 1FK461720000

Not available

OIL SEAL(1FK)

931084301300 931084301300

26,93 $

Unit Price

WASHER, PLATE (4H7)

90201231A200 90201231A200

3,74 $

Unit Price

CIRCLIP (4H7)

934102305600 934102305600

3,94 $

Unit Price

CIRCLIP (537)

934102203900 934102203900

7,20 $

Unit Price

CROSS JOINT COMP.

4X7461800000 4X7461800000

290,08 $

Unit Price

BEARING(2HR)

933999992600 933999992600

35,32 $

Unit Price

SPRING, COMPRESSION (2H7)

905011649100 905011649100

4,03 $

Unit Price

CIRCLIP (4X7)

934402008800 934402008800

6,44 $

Unit Price

NUT, CROWN(2GG)

901761007500 901761007500

10,04 $

Unit Price

YBS67-10 WASHER, SPRING

929901010000 929901010000

3,94 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FINAL DRIVE SHAFT / GEAR COUPLING of your Yamaha VMX12 of 1993. Let us know if you have any questions.
