SIDE COVER FOR YAMAHA VMAX 1989

SWINGARM

SIDE COVER 1

1UT217110000

1UT217110100

188,12 $

Unit Price

EMBLEME 3

1UT217830000 1UT217830000

Not available

SIDE COVER 2

1UT217210000

1UT217210100

189,10 $

Unit Price

EMBLEM 4

1UT217840000 1UT217840000

75,62 $

Unit Price

BOLT, HEXAGON SOCKET HEAD(1FK)

901100610200 901100610200

4,03 $

Unit Price

YBS66-6 WASHER, PLAIN

929010620000

929900620000

1,68 $

Unit Price

DAMPER, SIDE COVER

2N4217170000 2N4217170000

6,81 $

Unit Price

CACHE LATERALE 3

1FK217310000 1FK217310000

Not available

CACHE LATERALE

1FK217410000 1FK217410000

Not available

DAMPER, LOCATING 1

1FK217780000 1FK217780000

8,72 $

Unit Price

NUT, SPRING(1FK)

901830600800 901830600800

1,68 $

Unit Price

DAMPER

1FK217470000 1FK217470000

19,00 $

Unit Price

BOLT, BUTTON HEAD(3JP)

920130601200

920140601200

3,85 $

Unit Price

BOLT, BUTTON

920130602500

920140602500

4,00 $

Unit Price

PANEL 3 (L)

1FK2172G0000 1FK2172G0000

10,02 $

Unit Price

AIR INTAKE GRILL

1FK2837N0000 1FK2837N0000

Not available

PANEL 4 (R)

1FK2172H0000 1FK2172H0000

Not available

GRILL, AIR INTAKE 2

1FK2837R0000 1FK2837R0000

26,22 $

Unit Price

BOLT, BUTTON

920160501200

920170501200

3,85 $

Unit Price

COVER

1FK2172W0000 1FK2172W0000

38,48 $

Unit Price

JONC

904680317800 904680317800

Not available

PANEL 1

1FK2172A0000

1FK2172A0100

47,49 $

Unit Price

PANEL 2

1FK2172F0000 1FK2172F0000

39,57 $

Unit Price

SCREW, PAN

925060602000

985170602000

4,41 $

Unit Price

WASHER(6A1)

929060610000

929950610000

1,46 $

Unit Price

WASHER(6TA)

929060660000

929070660000

1,83 $

Unit Price

SCREW, PAN HEAD(3TJ)

925060601600

985070601600

2,29 $

Unit Price

WASHER(6A1)

929060610000

929950610000

1,46 $

Unit Price

WASHER(6TA)

929060660000

929070660000

1,83 $

Unit Price

COVER, SIDE 5

1FK2171E0000 1FK2171E0000

38,70 $

Unit Price

MOLE, SIDE COVER 5

1FK2171T0000 1FK2171T0000

3,58 $

Unit Price

TAPPING SCREW, PANHEAD .2 S

977064051200

977074061200

1,85 $

Unit Price

WASHER(6E1)

929060420000

929070420000

0,52 $

Unit Price

NUT, SPRING (26H)

901830402700 901830402700

2,16 $

Unit Price

COVER, SIDE 6

1FK2171X0000 1FK2171X0000

40,48 $

Unit Price

MOLE, SIDE COVER 5

1FK2171T0000 1FK2171T0000

3,58 $

Unit Price

GROMMET (5G2)

904801229600 904801229600

3,41 $

Unit Price

TOP COVER

1FK2171A00NA

1FK2171A00MX

273,25 $

Unit Price

ANTIVOL DE LEVIER

1FK2175J0000 1FK2175J0000

Not available

BOLT, FLANGE

958010601000

958120601000

2,35 $

Unit Price

DAMPER

1FK217460000 1FK217460000

3,10 $

Unit Price

MOLE 1

1FK283450000 1FK283450000

37,45 $

Unit Price

GUIDE

1FK2171H0000 1FK2171H0000

4,41 $

Unit Price

MOLE, SIDE COVER 1

1FK2171L0000 1FK2171L0000

14,12 $

Unit Price

JOINT 1

1FK217320000 1FK217320000

Not available

EMBLEM 1

1FK217810000 1FK217810000

30,55 $

Unit Price

EMBLEM 2

1FK217820000 1FK217820000

28,66 $

Unit Price

DAMPER, LOCATING 2

1FK217790000 1FK217790000

20,89 $

Unit Price

SUPPORT 3

1FK2172M0000 1FK2172M0000

Not available

DAMPER

18A247240000 18A247240000

4,85 $

Unit Price

BOLT, HEXAGON

970260601200

970170601200

2,48 $

Unit Price

WASHER(6A1)

929060610000

929950610000

1,46 $

Unit Price

WASHER(6TA)

929060660000

929070660000

1,83 $

Unit Price

BOLT, HEXAGON

970160601600

970170601600

2,42 $

Unit Price

WASHER(6A1)

929060610000

929950610000

1,46 $

Unit Price

WASHER(6TA)

929060660000

929070660000

1,83 $

Unit Price

ANTIVOL 2

1FK217080000 1FK217080000

COVER

1FK247960000 1FK247960000

Not available

NUT, FLANGE(4MV)

957060650000

957070650000

2,10 $

Unit Price

AXE, ANTIVOL

1FK2176U0000 1FK2176U0000

Not available

LEVIER, ANTIVOL

1FK2175K0000 1FK2175K0000

Not available

CIRCLIP(22K)

990010560000

990800560000

5,61 $

Unit Price

SPRING, LOCK

1FK2176V0000 1FK2176V0000

5,56 $

Unit Price

BRIDGE PLATE

1FK212430000

1FK212430100

68,47 $

Unit Price

BOLT, HEXAGON

970260601200

970170601200

2,48 $

Unit Price

WASHER(6A1)

929060610000

929950610000

1,46 $

Unit Price

GROMMET

904801523500 904801523500

7,60 $

Unit Price

COLLAR

90387060A700

903870611300

12,77 $

Unit Price

WASHER, PLATE

902010605900

902010602000

4,81 $

Unit Price

NUT, FLANGE(4MV)

957060650000

957070650000

2,10 $

Unit Price

COIL BRACKET

1UT213590000 1UT213590000

47,96 $

Unit Price

MOLE, SIDE COVER 1

1FK2171M0000

1FK2171L0000

14,12 $

Unit Price

BOLT, HEXAGON

970260601200

970170601200

2,48 $

Unit Price

WASHER(6A1)

929060610000

929950610000

1,46 $

Unit Price

DAMPER, SIDE COVER

2N4217170000 2N4217170000

6,81 $

Unit Price

BOITIER COMPLET

1FK2177G0000 1FK2177G0000

BOLT, WITH WASHER

901190605600

901190615200

1,64 $

Unit Price

TANK, RECOVERY

1FK218710000 1FK218710000

53,46 $

Unit Price

DURITE

1FK218160000 1FK218160000

Not available

CAP

26H218750000 26H218750000

29,03 $

Unit Price

GASKET

26H218740000 26H218740000

7,76 $

Unit Price

DURITE

26H218160100 26H218160100

Not available

ELBOW

26H218280000 26H218280000

15,55 $

Unit Price

CLIP(72X)

904671101900

9046711M0800

6,72 $

Unit Price

DURITE DE RENIFLARD

1FK218260000 1FK218260000

Not available

CLIP

904670900600

90467090A200

1,47 $

Unit Price

AMORTISSEUR 3, POSITIONNEMENT

1FK2177M0000 1FK2177M0000

Not available

CLAMP

5Y9124910000 5Y9124910000

2,07 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

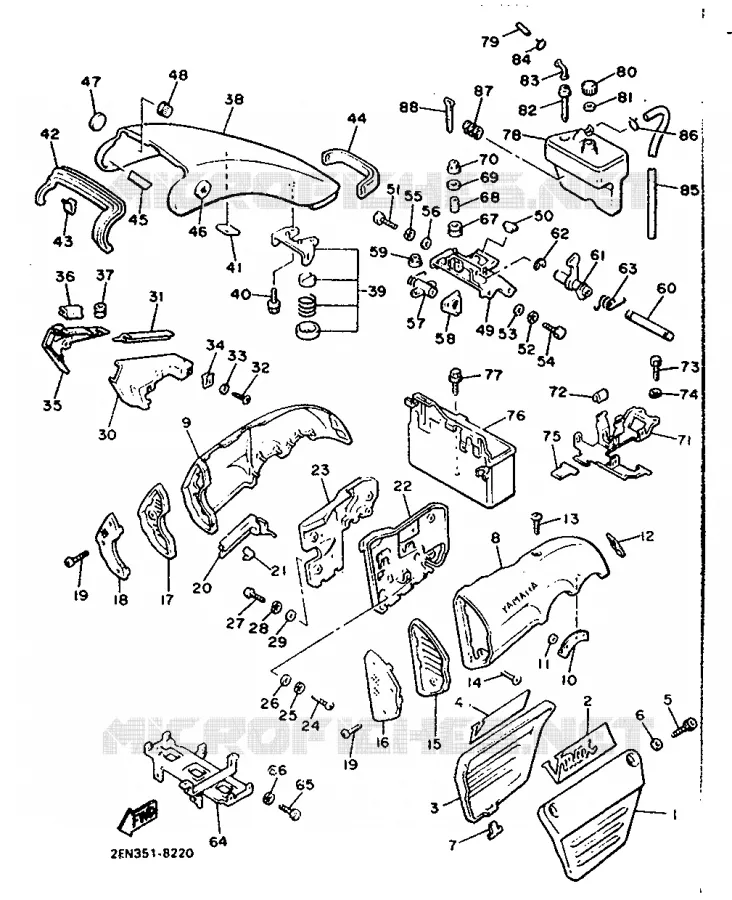

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SIDE COVER of your Yamaha VMX12 of 1989. Let us know if you have any questions.
