GEAR SHIFT SHAFT / LEVER

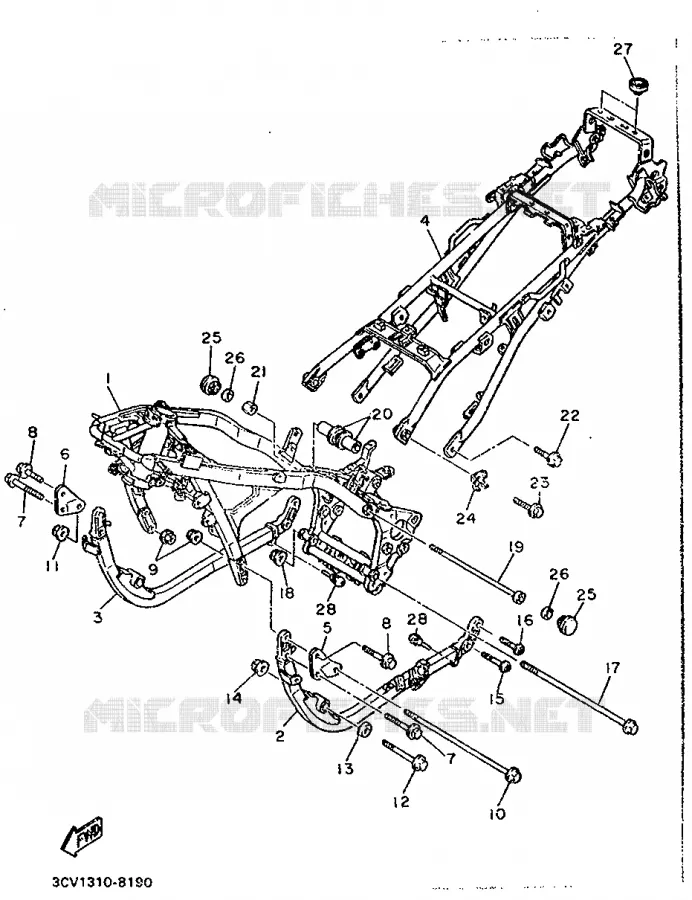

FRAME FOR YAMAHA FJ 1988

FENDER

CADRE COMP.

3CV211100035 3CV211100035

Not available

TUBE INCLINE COMP.

3CV211400035 3CV211400035

Not available

TUBE INCLINE COMP. 2

3CV211500035 3CV211500035

Not available

FIXATION

3CV211900033 3CV211900033

Not available

SUPPORT 2, MOTEUR

36Y213150000 36Y213150000

Not available

SUPPORT 3, MOTEUR

36Y213160000 36Y213160000

Not available

BOLT, WASHER BASED(36Y)

901050831000 901050831000

5,49 $

Unit Price

BOLT, FLANGE

901050831100

958170803500

4,22 $

Unit Price

NUT(55X)

901790824600

901790849100

5,86 $

Unit Price

BOLT, WASHER BASED(36Y)

901051031300 901051031300

32,72 $

Unit Price

NUT(4KG)

901791024700

901791065800

3,49 $

Unit Price

BOLT, WASHER BASED(36Y)

901051031200 901051031200

9,95 $

Unit Price

RONDELLE, GROWER CONIQUE

902081003900 902081003900

Not available

NUT(4KG)

901791024700

901791065800

3,49 $

Unit Price

BOLT, BUTTON

901490825500

920170804500

3,55 $

Unit Price

BOLT (3XF1)

901490825400

901100822000

6,16 $

Unit Price

BOLT, WASHER BASED(4EB)

901051252300

901051278700

23,76 $

Unit Price

NUT(3EF)

901791242100

901791265700

7,77 $

Unit Price

BOULON, TETE HEXAGONALE CREUSE

901101007300 901101007300

Not available

COLLAR (3BC)

90387101V200 90387101V200

16,84 $

Unit Price

NUT

901791037700

901791001300

15,31 $

Unit Price

BOLT, BUTTON HEAD(3LS)

920131004500

920141005000

10,10 $

Unit Price

BOLT (583)

901011052400

901011030300

9,43 $

Unit Price

RONDELLE-FREIN

36Y214910000 36Y214910000

Not available

CAP ASSY

36Y2143A0000

36Y214700000

13,39 $

Unit Price

AMORTISSEUR, CAOUTCHOUC 1

36Y214850000 36Y214850000

Not available

PAD, SEAT

1L9247410000 1L9247410000

10,59 $

Unit Price

PLOT

903380420900 903380420900

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRAME of your Yamaha FJ1200 of 1988. Let us know if you have any questions.
