SWINGARM / SHOCK ABSORBER

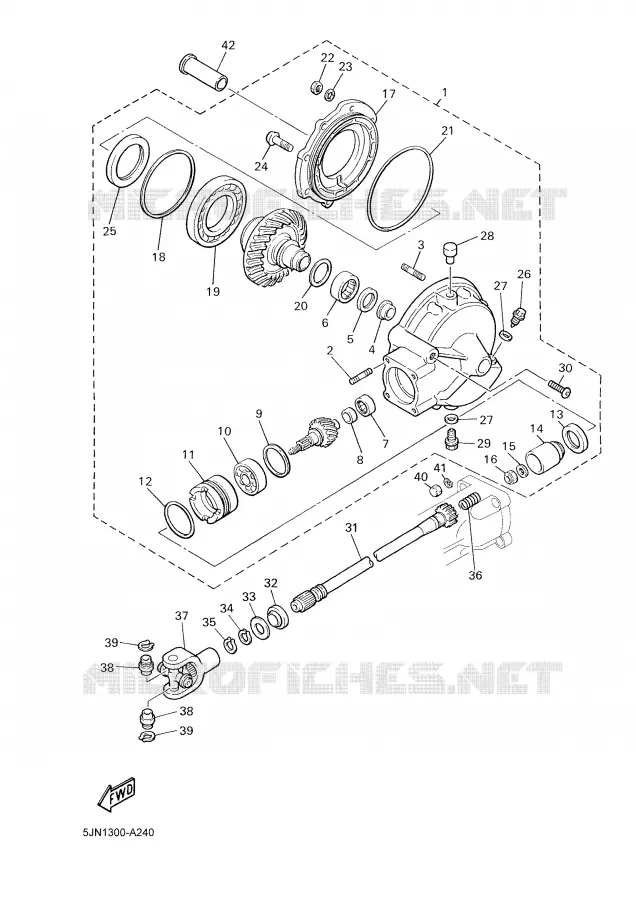

FINAL DRIVE SHAFT / GEAR COUPLING FOR YAMAHA BULLDOG 2003

STEERING

CARTER DE TRANSMISSION AR

4KM461010000 4KM461010000

Not available

.GOUJON GOUJON

901161036200 901161036200

Not available

BOLT, STUD(2GG)

901160836000

956170862000

5,65 $

Unit Price

COLLAR, GUIDE

4H7461530000 4H7461530000

22,93 $

Unit Price

OIL SEAL (30X42X7-1J7)

931013008400 931013008400

21,44 $

Unit Price

BRG, CYL-CAL ROLLER 80G KY

933114372900 933114372900

97,78 $

Unit Price

BEARING ASSY

933174151000

2H7461020000

67,20 $

Unit Price

RACE, INNER

2H7461220000 2H7461220000

20,50 $

Unit Price

SHIM, THRUST (0.30T)

1J717537Y030 1J717537Y030

9,51 $

Unit Price

SHIM, THRUST (0.40T)

1J717537Y040 1J717537Y040

9,51 $

Unit Price

SHIM, THRUST (0.50T)

1J717537Y050 1J717537Y050

9,51 $

Unit Price

BRG, R-B 6305RB1 62MM 245G KY

933063053300 933063053300

129,72 $

Unit Price

RETAINER, BEARING

4H7461250000 4H7461250000

37,45 $

Unit Price

O-RING (4H7)

932106042600 932106042600

11,29 $

Unit Price

OIL SEAL (4H7)

931013809800 931013809800

24,06 $

Unit Price

COUPLING, GEAR

4H7461230100 4H7461230100

260,08 $

Unit Price

WASHER, PLATE 11J7)

902011463200 902011463200

8,47 $

Unit Price

NUT, SELF-LOCKING (1J7)

901851407000 901851407000

14,67 $

Unit Price

HOUSING, BEARING

4H7461520000 4H7461520000

84,57 $

Unit Price

SHIM, RING GEAR (0.25T)

1J746117Y025 1J746117Y025

5,62 $

Unit Price

SHIM, RING GEAR (0.30T)

1J746117Y030 1J746117Y030

5,70 $

Unit Price

SHIM, RING GEAR (0.40T)

1J746117Y040 1J746117Y040

5,70 $

Unit Price

SHIM, RING GEAR (0.50T)

1J746117Y050 1J746117Y050

5,70 $

Unit Price

BRG, R-B 16014C2 110MM 433G KY

933160140300 933160140300

113,04 $

Unit Price

WASHER, THRUST

22U461180012 22U461180012

10,05 $

Unit Price

WASHER, THRUST

22U461180014 22U461180014

10,05 $

Unit Price

WASHER, THRUST

22U461180016 22U461180016

10,05 $

Unit Price

WASHER, THRUST

22U461180018 22U461180018

10,05 $

Unit Price

WASHER, THRUST

22U461180020 22U461180020

10,05 $

Unit Price

O-RING (1J7)

932114434800 932114434800

23,04 $

Unit Price

NUT(6TA)

953170860000

953370860000

5,60 $

Unit Price

WASHER(6TA)

929070870000 929070870000

0,68 $

Unit Price

BOLT

901091074800 901091074800

5,48 $

Unit Price

OIL SEAL (4H7)

931027016700 931027016700

31,18 $

Unit Price

PLUG, STRAIGHT SCREW(3FA)

903401413200 903401413200

8,37 $

Unit Price

GASKET

214111980100 214111980100

3,98 $

Unit Price

BREATHER COMP.

2H7175900000 2H7175900000

26,25 $

Unit Price

PLUG

903401413500

3JL134550000

22,20 $

Unit Price

SCREW, PAN HEAD (22U)

901571004300 901571004300

14,94 $

Unit Price

ARBRE DE TRANSMISSION

4KM461720000 4KM461720000

Not available

OIL SEAL(1FK)

931082300700

931084301300

26,93 $

Unit Price

WASHER, PLATE (4H7)

90201231A200 90201231A200

3,74 $

Unit Price

CIRCLIP (4H7)

934102305600 934102305600

3,94 $

Unit Price

CIRCLIP (537)

934102203900 934102203900

7,20 $

Unit Price

SPRING, COMPRESSION (2H7)

905011649100 905011649100

4,03 $

Unit Price

CROSS JOINT COMP.

4X7461800000 4X7461800000

290,08 $

Unit Price

BEARING(2HR)

933112104400

933999992600

35,32 $

Unit Price

CIRCLIP (4X7)

934402008800 934402008800

6,44 $

Unit Price

NUT, CROWN(2GG)

901761007500 901761007500

10,04 $

Unit Price

YBS67-10 WASHER, SPRING

929031010000

929901010000

3,94 $

Unit Price

COLLERETTE

903871705N00 903871705N00

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Yamaha, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
