TRANSMISSION

CROSS SHAFT FOR YAMAHA DRAGSTAR 2002

GEAR SHIFT SELECTOR DRUM / FORKS

MIDDLE GEAR COMP SET.

5ELY17570000

999990380000

1 113,31 $

Unit Price

BRG, R-B 6209RSH2-C2 85MM 412G

933062090100 933062090100

121,58 $

Unit Price

NUT (4X7)

901794432800 901794432800

37,28 $

Unit Price

CAM, DRIVE

42X175260100 42X175260100

117,92 $

Unit Price

CAM, DRIVEN

31A175270000 31A175270000

73,91 $

Unit Price

SPRING, COMPRESSION (31A)

905017076200 905017076200

37,40 $

Unit Price

HOLDER

4X7175240000 4X7175240000

26,83 $

Unit Price

WASHER, THRUST

3H5175290000 3H5175290000

3,72 $

Unit Price

SHIM, PINION

4X7175310015 4X7175310015

4,26 $

Unit Price

SHIM, PINION

4X7175310030 4X7175310030

4,26 $

Unit Price

SHIM, PINION

4X7175310050 4X7175310050

4,26 $

Unit Price

NUT (4X7)

901798833600 901798833600

77,04 $

Unit Price

BEARING, CYLINDRICAL (4X7)

933172202100 933172202100

37,94 $

Unit Price

BRG, CYL-CAL ROLLER (10L)

933114405100 933114405100

71,03 $

Unit Price

WASHER, PLATE (4X7)

90201255A600 90201255A600

12,77 $

Unit Price

SPACER, EXPANSION

1J746129Y100 1J746129Y100

21,97 $

Unit Price

BEARING HOUSING

4X7175510000

11H175510000

70,80 $

Unit Price

O-RING (2H7)

932107136000 932107136000

16,40 $

Unit Price

BRG, R-B 6205RC2 52MM 124G KY

933062054800 933062054800

57,97 $

Unit Price

RETAINER, BEARING

4X7175540000 4X7175540000

Not available

O-RING (4X7)

932105244900 932105244900

10,46 $

Unit Price

OIL SEAL (4X7)

931013509900 931013509900

25,71 $

Unit Price

PLATE, BEARING

5EL175580000 5EL175580000

42,74 $

Unit Price

JOINT YOKE

5EL175560000 5EL175560000

195,28 $

Unit Price

ROTOR

5EL8135E0000 5EL8135E0000

64,01 $

Unit Price

O-RING (2H7)

932101435900 932101435900

7,71 $

Unit Price

WASHER, PLATE (1J7)

902011463300 902011463300

7,77 $

Unit Price

NUT

901791431700 901791431700

22,18 $

Unit Price

COLLAR

90387251E100 90387251E100

Not available

BOLT, FLANGE(6TA)

901050801000

958170803000

4,16 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

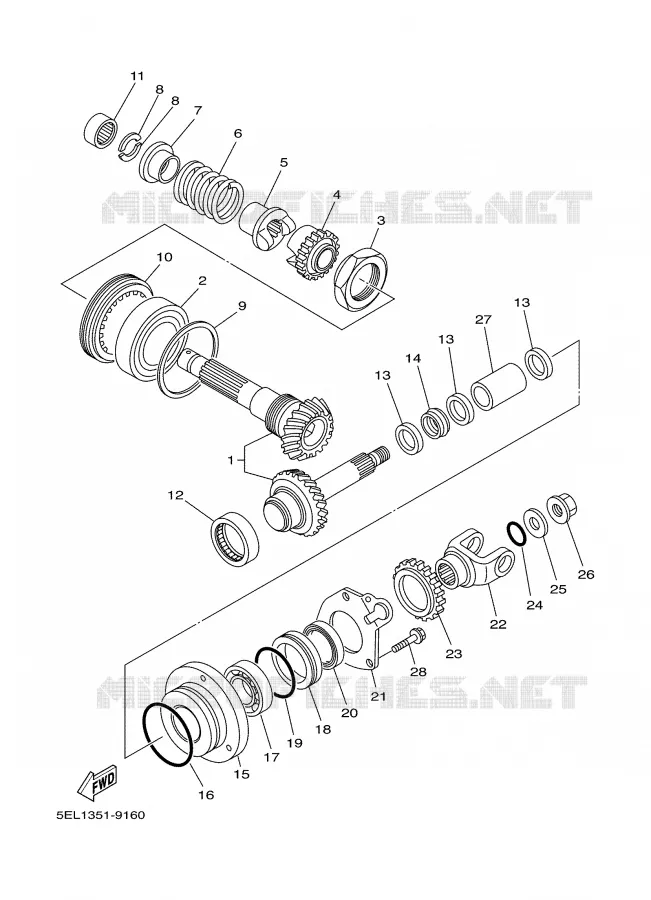

Find on this page all the original spare parts relating to the CROSS SHAFT of your Yamaha DRAGSTAR 1100 CLASSIC of 2002. Let us know if you have any questions.
