FRONT MASTER CYLINDER

STAND / FOOTREST FOR YAMAHA DRAGSTAR 2000

REAR BRAKE MASTER CYLINDER

PEDAL, BRAKE

5EL272110000 5EL272110000

133,04 $

Unit Price

LEVER

5EL272620000

5EL272620100

73,86 $

Unit Price

BOLT(3DM)

970040602000

970240602000

3,66 $

Unit Price

SPRING, RETURN

5EL272160000 5EL272160000

8,98 $

Unit Price

JOINT

4BP272220000

4BP272220200

20,46 $

Unit Price

PIN, CLEVIS(2YK)

902400812400 902400812400

12,96 $

Unit Price

WASHER, PLATE 1562722600

902010808300 902010808300

6,72 $

Unit Price

COTTER PIN

914012001200

914012002000

3,75 $

Unit Price

NUT, HEXAGON SMALL

953070870000

953170870000

1,76 $

Unit Price

STAND, SIDE

4KU273111300 4KU273111300

264,82 $

Unit Price

WASHER

5EL273220100 5EL273220100

23,82 $

Unit Price

BOLT, WASHER BASED

901051001200 901051001200

10,46 $

Unit Price

COLLAR(3XP)

903871003G00 903871003G00

19,13 $

Unit Price

NUT, SELF-LOCKING(JN5)

956071020000 956071020000

4,90 $

Unit Price

SPRING, TENSION(4KU)

905062349000 905062349000

14,34 $

Unit Price

SPRING, TENSION

905062950700 905062950700

15,89 $

Unit Price

LINK, SIDE STAND

5EL273150000 5EL273150000

6,87 $

Unit Price

HOSE (L60)

904451664100 904451664100

2,26 $

Unit Price

SIDE STAND BRACKET

5EL273210000 5EL273210000

Not available

BOLT, FLANGE(4GB)

958171004500 958171004500

7,14 $

Unit Price

BAND

1UA825910000 1UA825910000

3,11 $

Unit Price

FRONT FOOTREST ASSY (LEFT)

5EL274100000 5EL274100000

268,35 $

Unit Price

COVER, FOOTREST

4VR274130000 4VR274130000

45,73 $

Unit Price

NUT, SELF-LOCKING

956070610000

956170610000

8,11 $

Unit Price

PIN, CLEVIS (2A6)

902400808400

917010803800

3,93 $

Unit Price

SPRING, TORSION(1MY)

905081869600 905081869600

4,63 $

Unit Price

COLLAR(1HX)

90387087K500 90387087K500

3,94 $

Unit Price

PIN, COTTER

914012501500

914902502000

3,93 $

Unit Price

BOLT, WASHER BASED

90105102A300 90105102A300

9,07 $

Unit Price

FRONT FOOTREST ASSY (RIGHT)

5EL274200000 5EL274200000

256,29 $

Unit Price

COVER, FOOTREST

4VR274130000 4VR274130000

45,73 $

Unit Price

NUT, SELF-LOCKING

956070610000

956170610000

8,11 $

Unit Price

PIN, CLEVIS (2A6)

902400808400

917010803800

3,93 $

Unit Price

SPRING, TORSION(1MY)

905081869600 905081869600

4,63 $

Unit Price

COLLAR(1HX)

90387087K500 90387087K500

3,94 $

Unit Price

PIN, COTTER

914012501500

914902502000

3,93 $

Unit Price

BOLT, WASHER BASED

90105102A300 90105102A300

9,07 $

Unit Price

REAR FOOTREST ASSY 1

5EL274300000 5EL274300000

188,85 $

Unit Price

COVER, REAR FOOTREST

4WM274330000 4WM274330000

23,94 $

Unit Price

PIN, CLEVIS (1Y8)

917010603200 917010603200

6,72 $

Unit Price

COTTER PIN

914012001200

914012002000

3,75 $

Unit Price

WASHER, PLATE(8CJ)

90201210U000 90201210U000

7,21 $

Unit Price

BOLT, WASHER BASED

90105082A500 90105082A500

3,90 $

Unit Price

REAR FOOTREST ASSY 2

5EL274400000 5EL274400000

188,85 $

Unit Price

COVER, REAR FOOTREST

4WM274330000 4WM274330000

23,94 $

Unit Price

PIN, CLEVIS (1Y8)

917010603200 917010603200

6,72 $

Unit Price

COTTER PIN

914012001200

914012002000

3,75 $

Unit Price

WASHER, PLATE(8CJ)

90201210U000 90201210U000

7,21 $

Unit Price

BOLT, WASHER BASED

90105082A500 90105082A500

3,90 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

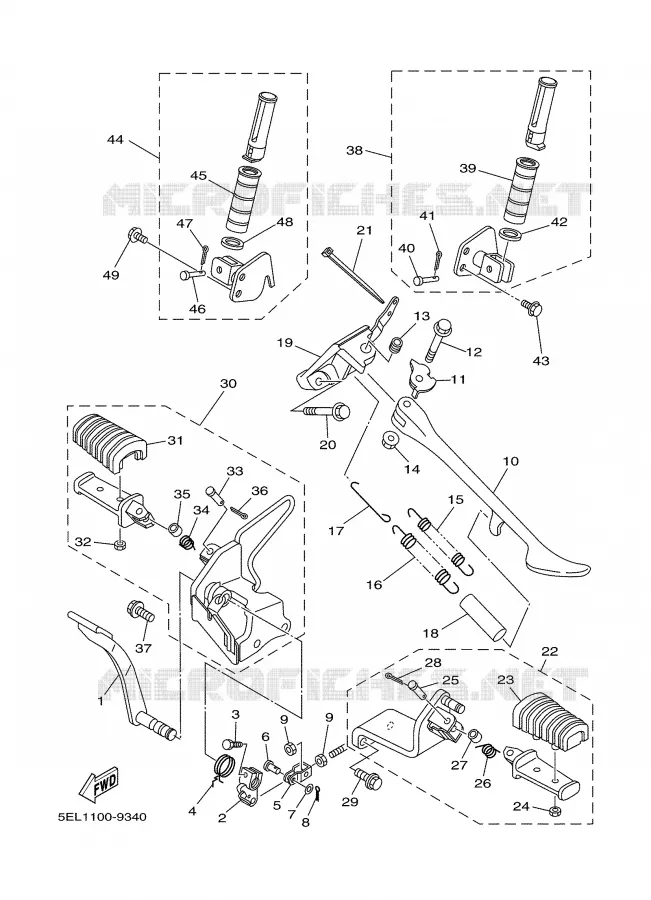

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the STAND / FOOTREST of your Yamaha XVS1100 of 2000. Let us know if you have any questions.
