FRONT MASTER CYLINDER

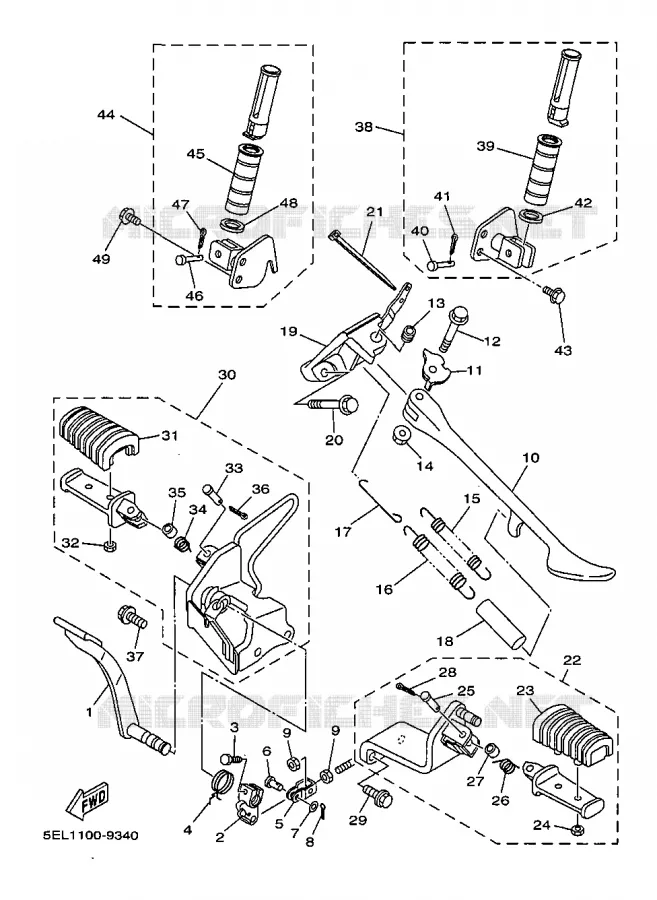

STAND / FOOTREST FOR YAMAHA DRAGSTAR 1999

REAR BRAKE MASTER CYLINDER

PEDAL, BRAKE

5EL272110000 5EL272110000

133,04 $

Unit Price

LEVER

5EL272620000

5EL272620100

73,86 $

Unit Price

BOLT(3DM)

970040602000

970240602000

3,66 $

Unit Price

SPRING, RETURN

5EL272160000 5EL272160000

8,98 $

Unit Price

JOINT

4BP272220000

4BP272220200

20,46 $

Unit Price

PIN, CLEVIS(2YK)

902400812400 902400812400

12,96 $

Unit Price

WASHER, PLATE 1562722600

902010808300 902010808300

6,72 $

Unit Price

COTTER PIN

914012001200

914012002000

3,75 $

Unit Price

NUT, HEXAGON SMALL

953070870000

953170870000

1,76 $

Unit Price

STAND, SIDE

4KU273111100

4KU273111300

264,82 $

Unit Price

WASHER

5EL273220000

5EL273220100

23,82 $

Unit Price

BOLT, WASHER BASED

901051001200 901051001200

10,46 $

Unit Price

COLLAR(3XP)

903871003G00 903871003G00

19,13 $

Unit Price

NUT, SELF-LOCKING(JN5)

956071020000 956071020000

4,90 $

Unit Price

SPRING, TENSION(4KU)

905062349000 905062349000

14,34 $

Unit Price

SPRING, TENSION

905062950700 905062950700

15,89 $

Unit Price

LINK, SIDE STAND

5EL273150000 5EL273150000

6,87 $

Unit Price

HOSE (L60)

904451664100 904451664100

2,26 $

Unit Price

SIDE STAND BRACKET

5EL273210000 5EL273210000

Not available

BOLT, FLANGE(4GB)

958171004500 958171004500

7,14 $

Unit Price

BAND

1UA825910000 1UA825910000

3,11 $

Unit Price

FRONT FOOTREST ASSY (LEFT)

5EL274100000 5EL274100000

268,35 $

Unit Price

COVER, FOOTREST

4VR274130000 4VR274130000

45,73 $

Unit Price

NUT, SELF-LOCKING

956070610000

956170610000

8,11 $

Unit Price

PIN, CLEVIS (2A6)

902400808400

917010803800

3,93 $

Unit Price

SPRING, TORSION(1MY)

905081869600 905081869600

4,63 $

Unit Price

COLLAR(1HX)

90387087K500 90387087K500

3,94 $

Unit Price

PIN, COTTER

914012501500

914902502000

3,93 $

Unit Price

BOLT, WASHER BASED

90105102A300 90105102A300

9,07 $

Unit Price

FRONT FOOTREST ASSY (RIGHT)

5EL274200000 5EL274200000

256,29 $

Unit Price

COVER, FOOTREST

4VR274130000 4VR274130000

45,73 $

Unit Price

NUT, SELF-LOCKING

956070610000

956170610000

8,11 $

Unit Price

PIN, CLEVIS (2A6)

902400808400

917010803800

3,93 $

Unit Price

SPRING, TORSION(1MY)

905081869600 905081869600

4,63 $

Unit Price

COLLAR(1HX)

90387087K500 90387087K500

3,94 $

Unit Price

PIN, COTTER

914012501500

914902502000

3,93 $

Unit Price

BOLT, WASHER BASED

90105102A300 90105102A300

9,07 $

Unit Price

REAR FOOTREST ASSY 1

5EL274300000 5EL274300000

188,85 $

Unit Price

COVER, REAR FOOTREST

4WM274330000 4WM274330000

23,94 $

Unit Price

PIN, CLEVIS (1Y8)

917010603200 917010603200

6,72 $

Unit Price

COTTER PIN

914012001200

914012002000

3,75 $

Unit Price

WASHER, PLATE(8CJ)

90201210U000 90201210U000

7,21 $

Unit Price

BOLT, WASHER BASED

90105082A500 90105082A500

3,90 $

Unit Price

REAR FOOTREST ASSY 2

5EL274400000 5EL274400000

188,85 $

Unit Price

COVER, REAR FOOTREST

4WM274330000 4WM274330000

23,94 $

Unit Price

PIN, CLEVIS (1Y8)

917010603200 917010603200

6,72 $

Unit Price

COTTER PIN

914012001200

914012002000

3,75 $

Unit Price

WASHER, PLATE(8CJ)

90201210U000 90201210U000

7,21 $

Unit Price

BOLT, WASHER BASED

90105082A500 90105082A500

3,90 $

Unit Price
