SWINGARM / SHOCK ABSORBER

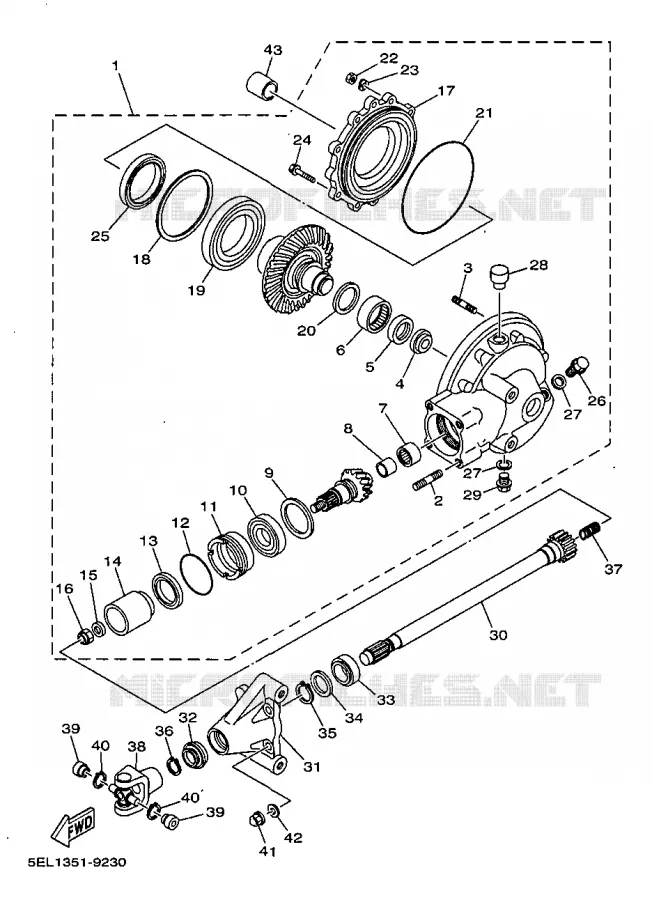

FINAL DRIVE SHAFT / GEAR COUPLING FOR YAMAHA DRAGSTAR 1999

STEERING

REAR AXLE GEAR CASE ASSY

5EL461010000 5EL461010000

1 981,69 $

Unit Price

BOLT, STUD (5E5)

901161059300

901161036100

12,94 $

Unit Price

BOLT, STUD(2GG)

901160836000

956170862000

5,65 $

Unit Price

COLLAR, GUIDE

5EL461530000 5EL461530000

35,13 $

Unit Price

OIL SEAL (30X42X7-1J7)

931013008400 931013008400

21,44 $

Unit Price

BRG, CYL-CAL ROLLER 80G KY

933114372900 933114372900

97,78 $

Unit Price

BEARING ASSY

933174151000

2H7461020000

67,20 $

Unit Price

RACE, INNER

2H7461220000 2H7461220000

20,50 $

Unit Price

.CALE, BUTEE CALE, BUTEE

1J717537Y0+4 1J717537Y0+4

Not available

SHIM, THRUST (0.30T)

1J717537Y030 1J717537Y030

9,51 $

Unit Price

SHIM, THRUST (0.50T)

1J717537Y050 1J717537Y050

9,51 $

Unit Price

BRG, R-B 6305RB1 62MM 245G KY

933063053300 933063053300

129,72 $

Unit Price

RETAINER, BEARING

4H7461250000 4H7461250000

37,45 $

Unit Price

O-RING (4H7)

932106042600 932106042600

11,29 $

Unit Price

OIL SEAL (4H7)

931013809800 931013809800

24,06 $

Unit Price

COUPLING, GEAR

4H7461230100 4H7461230100

260,08 $

Unit Price

WASHER, PLATE 11J7)

902011463200 902011463200

8,47 $

Unit Price

NUT, SELF-LOCKING (1J7)

901851407000 901851407000

14,67 $

Unit Price

HOUSING, BEARING

4H7461520000 4H7461520000

84,57 $

Unit Price

SHIM, RING GEAR (0.25T)

1J746117Y025 1J746117Y025

5,62 $

Unit Price

SHIM, RING GEAR (0.30T)

1J746117Y030 1J746117Y030

5,70 $

Unit Price

SHIM, RING GEAR (0.40T)

1J746117Y040 1J746117Y040

5,70 $

Unit Price

SHIM, RING GEAR (0.50T)

1J746117Y050 1J746117Y050

5,70 $

Unit Price

BRG, R-B 16014C2 110MM 433G KY

933160140300 933160140300

113,04 $

Unit Price

WASHER, THRUST

22U461180012 22U461180012

10,05 $

Unit Price

WASHER, THRUST

22U461180014 22U461180014

10,05 $

Unit Price

WASHER, THRUST

22U461180016 22U461180016

10,05 $

Unit Price

WASHER, THRUST

22U461180018 22U461180018

10,05 $

Unit Price

WASHER, THRUST

22U461180020 22U461180020

10,05 $

Unit Price

O-RING (1J7)

932114434800 932114434800

23,04 $

Unit Price

NUT(6TA)

953170860000

953370860000

5,60 $

Unit Price

WASHER(6TA)

929070870000 929070870000

0,68 $

Unit Price

BOLT, FLANGE(3GD)

958271002500

958171002500

7,09 $

Unit Price

OIL SEAL (4H7)

931027016700 931027016700

31,18 $

Unit Price

PLUG, STRAIGHT SCREW(3FA)

903401413200 903401413200

8,37 $

Unit Price

GASKET

214111980100 214111980100

3,98 $

Unit Price

BREATHER COMP.

56W175900000 56W175900000

21,49 $

Unit Price

PLUG

903401413500

3JL134550000

22,20 $

Unit Price

SHAFT DRIVE ASSY

5EL461710000 5EL461710000

381,08 $

Unit Price

COVER, HOUSING

5EL461540000 5EL461540000

287,46 $

Unit Price

COVER, DUST

5EL462970000 5EL462970000

35,79 $

Unit Price

OIL SEAL

931084301400 931084301400

23,46 $

Unit Price

WASHER, PLATE(2JG)

90201266L100 90201266L100

14,13 $

Unit Price

CIRCLIP (30X)

934102606700 934102606700

9,22 $

Unit Price

CIRCLIP (537)

934102203900 934102203900

7,20 $

Unit Price

SPRING, COMPRESSION (2H7)

905011649100 905011649100

4,03 $

Unit Price

CROSS JOINT COMP.

4X7461800000 4X7461800000

290,08 $

Unit Price

BEARING(2HR)

933112104400

933999992600

35,32 $

Unit Price

CIRCLIP (4X7)

934402008800 934402008800

6,44 $

Unit Price

NUT, CROWN(2GG)

901761007500 901761007500

10,04 $

Unit Price

WASHER, PLATE

929901060000 929901060000

3,94 $

Unit Price

COLLAR (4H7)

90387172A500 90387172A500

15,99 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FINAL DRIVE SHAFT / GEAR COUPLING of your Yamaha XVS1100 of 1999. Let us know if you have any questions.
