FRONT FORK

FUEL TANK FOR YAMAHA TTR 2022

SEAT

Item numbers

RESERVOIR DE ESSENCE COMPLETE

5B6241101000 5B6241101000

Not available

CAP ASSY

2FJ246102000 2FJ246102000

81,90 $

Unit Price

PIPE, BREATHER

5B6218261000 5B6218261000

11,63 $

Unit Price

FUEL COCK ASSY 1

1P6245001000 1P6245001000

156,17 $

Unit Price

O-RING

1P6245121000 1P6245121000

16,60 $

Unit Price

SCREW, PAN

985070601400 985070601400

2,01 $

Unit Price

WASHER(6TA)

929070660000 929070660000

1,76 $

Unit Price

DURITE A ESSENCE

5B6243111000 5B6243111000

Not available

DAMPER, SIDE COVER

5B62411J0000 5B62411J0000

4,98 $

Unit Price

DAMPER, LOCATING 1

5B6241810000 5B6241810000

62,80 $

Unit Price

BAND

904651315200

1UA825910000

2,98 $

Unit Price

DAMPER

2X6241830000

51L283710000

4,38 $

Unit Price

CLIP

904670900600

90467090A200

1,41 $

Unit Price

SCOOP AIR ASSY. 1

5B62137A0000 5B62137A0000

52,73 $

Unit Price

BOLT, FLANGE

901050606400 901050606400

1,61 $

Unit Price

RIVET(4JH)

902690707600 902690707600

3,63 $

Unit Price

SCOOP AIR ASSY. 2

5B62137B0000 5B62137B0000

52,73 $

Unit Price

BOLT, FLANGE

901050606400 901050606400

1,61 $

Unit Price

RIVET(4JH)

902690707600 902690707600

3,63 $

Unit Price

STAY, FUEL TANK 1

5B6241570000 5B6241570000

22,35 $

Unit Price

STAY, FUEL TANK 2

5B6241580000 5B6241580000

22,63 $

Unit Price

BOLT, FLANGE

958020601000

958010601000

2,25 $

Unit Price

GROMMET (4V1)

904801829000 904801829000

9,73 $

Unit Price

COLLAR (36R)

90387066J100 90387066J100

9,76 $

Unit Price

CLAMP

904641300300 904641300300

3,17 $

Unit Price

BOLT, FLANGE

958020603000

958210603000

3,75 $

Unit Price

STAY, FUEL TANK 2

5B6241160000 5B6241160000

20,11 $

Unit Price

BRACKET, SEAT

4EW2412F0000 4EW2412F0000

12,49 $

Unit Price

SCREW, FLAT HEAD

987020602500 987020602500

0,41 $

Unit Price

BAND, TANK FITTING 1

5B6241730000 5B6241730000

18,75 $

Unit Price

GRAPHIC, FUEL TANK

BMA242440000 BMA242440000

41,08 $

Unit Price

GRAPHIC, FUEL TANK

BMA242450000 BMA242450000

30,44 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

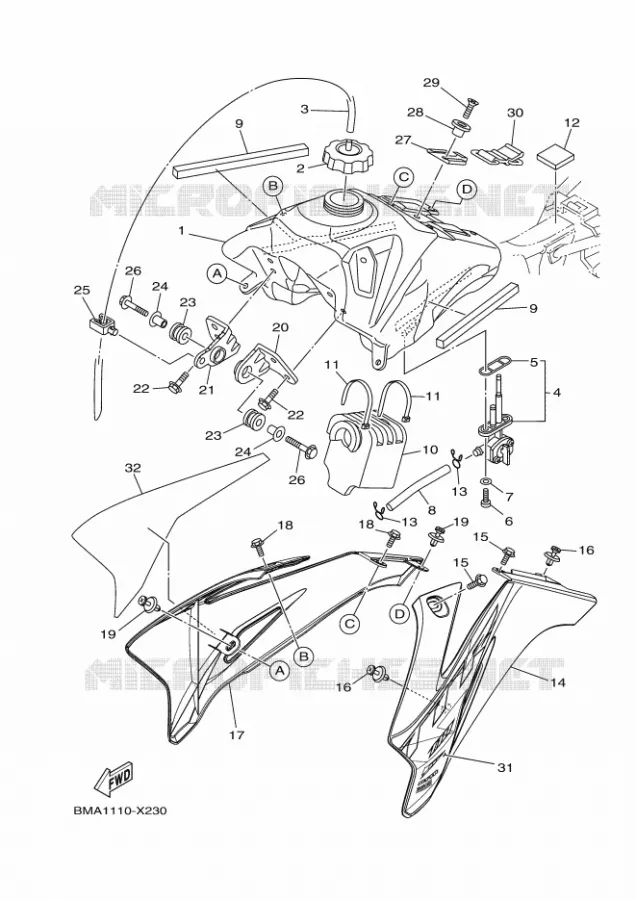

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FUEL TANK of your Yamaha TTR 110 E of 2022. Let us know if you have any questions.
