OIL PUMP

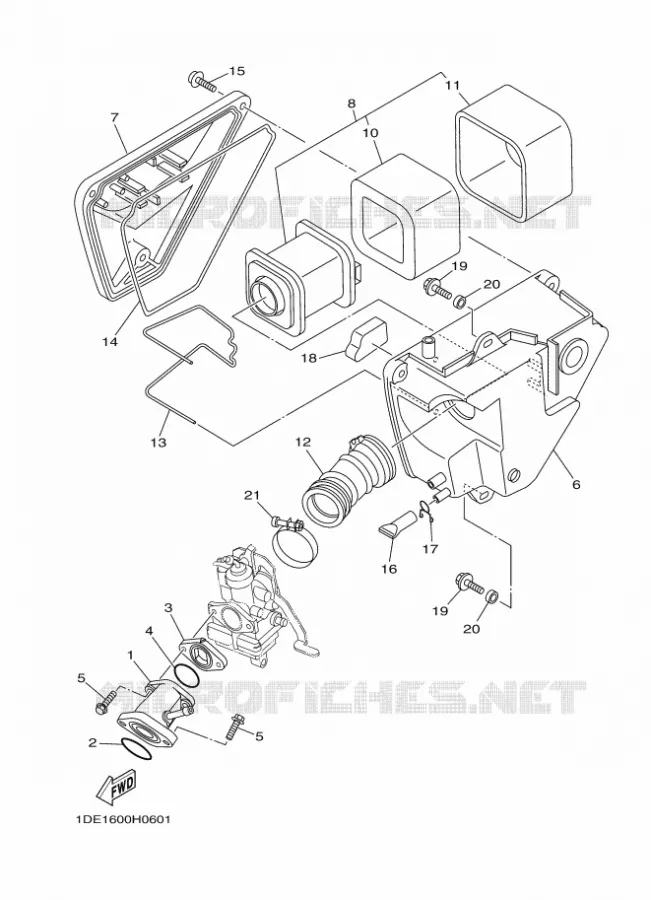

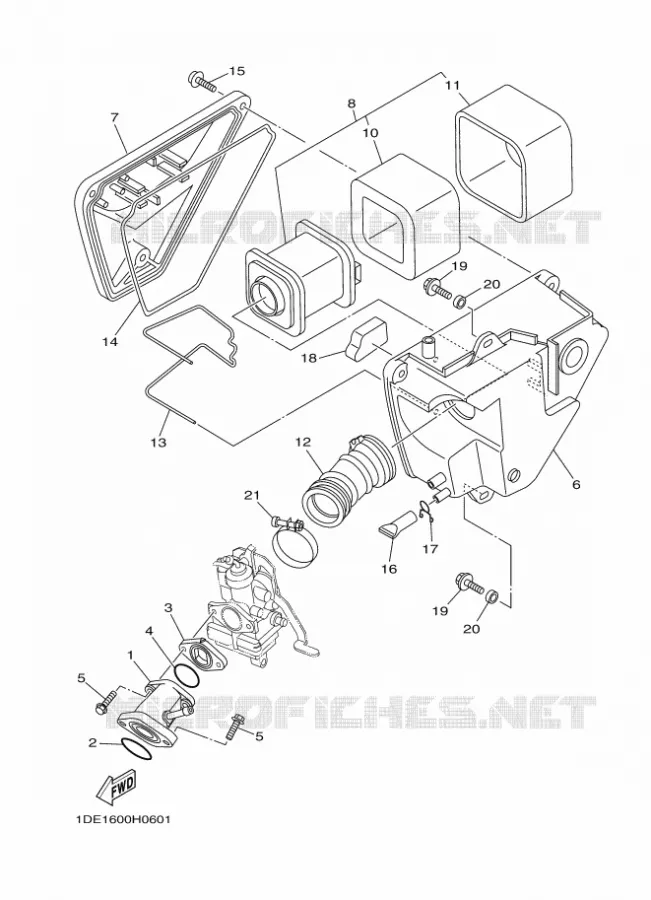

INTAKE FOR YAMAHA CRUX 2009

CARBURETOR

Item numbers

RACCORD, CARBURATEUR 1

5KAE35861000 5KAE35861000

Not available

JOINT TORIQUE

932103280100 932103280100

Not available

RACCORD

5KAE35950200 5KAE35950200

Not available

O-RING(50M)

932102780000

932102767200

7,13 $

Unit Price

BOULON

901050686800 901050686800

Not available

BOITIER, FILTRE A AIR 1

5KAE44112000 5KAE44112000

Not available

COUVERCLE DE BOITIER DE FILTRE

5KAE44120000 5KAE44120000

Not available

ELEMENT CPLT.FILTRE A AIR

5KAE44501000 5KAE44501000

Not available

. ELEMENT, FILTRE A AIR

5DGE44510000 5DGE44510000

Not available

. ELEMENT, FILTRE A AIR 2

5DGE44610000 5DGE44610000

Not available

RACCORD, FILTRE A AIR 1

5KAE44530000 5KAE44530000

Not available

RESSORT

5DGE44870000 5DGE44870000

Not available

JOINT

4LSE44620000 4LSE44620000

Not available

SCREW, W-WASHER

976070622500 976070622500

0,94 $

Unit Price

TUBE, VIDANGE

4LSE443E0000 4LSE443E0000

Not available

CLIP(1JH)

904671110600 904671110600

4,00 $

Unit Price

ELEMENT 3

5KAE447F0000 5KAE447F0000

Not available

BOLT, WITH WASHER(8V7)

901190610800 901190610800

4,16 $

Unit Price

CLAMP, HOSE (5H0)

904604305300

904604317900

21,03 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Yamaha, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
