Displacement

Year

Model

Finish line

Parts catalogue

Parts diagram

TRACK DRIVE 1

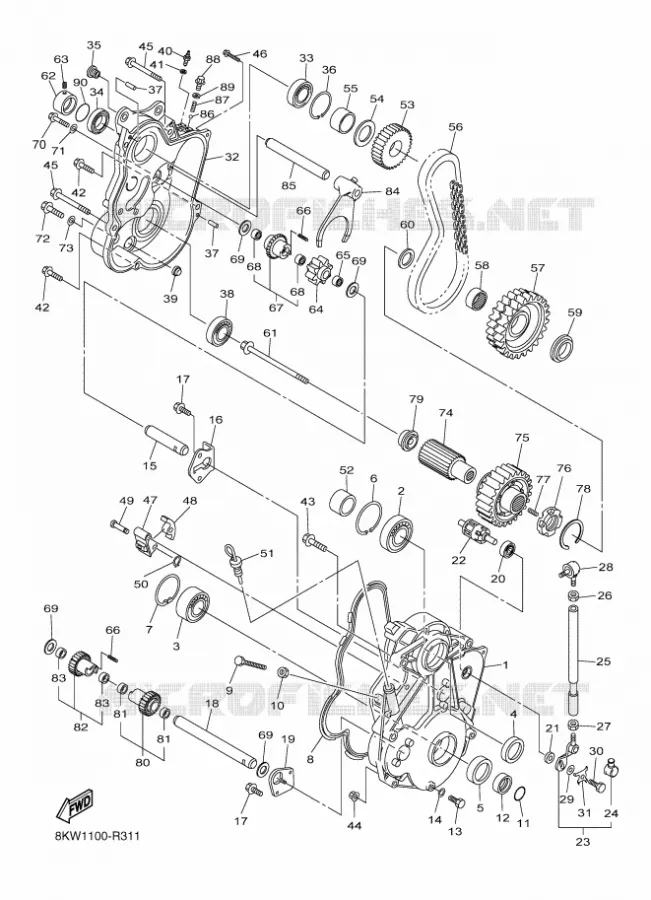

TRACK DRIVE 2 FOR YAMAHA VK 2021

TRACK DRIVE 3

Item numbers

HOUSING, CHAIN

8GS475410000 8GS475410000

781,00 $

Unit Price

BEARING (5X5)

933062060100

933062062700

41,66 $

Unit Price

BEARING

933042051100 933042051100

169,16 $

Unit Price

OIL SEAL

931023001200 931023001200

26,85 $

Unit Price

OIL SEAL

931023501000 931023501000

21,63 $

Unit Price

CIRCLIP(MF1)

990096250000 990096250000

8,85 $

Unit Price

CIRCLIP(26H)

990095250000 990095250000

15,10 $

Unit Price

RING, HOUSING

8GS475580000 8GS475580000

75,07 $

Unit Price

BOLT, HEXAGON (8F3)

901011035700 901011035700

8,93 $

Unit Price

NUT(6TD)

953071060000

953371060000

9,07 $

Unit Price

O-RING (169)

932102507100 932102507100

8,37 $

Unit Price

COLLAR(8CJ)

903872508C00 903872508C00

23,34 $

Unit Price

BOLT, HEXAGON

970020801400

970170801600

4,00 $

Unit Price

WASHER, SEAL(8AB)

902100801700 902100801700

7,49 $

Unit Price

SHAFT, 1

8GS1761A0000 8GS1761A0000

61,16 $

Unit Price

PLATE

8CW475910000 8CW475910000

22,93 $

Unit Price

BOLT, FLANGE

90105060A600

958170601600

3,30 $

Unit Price

SHAFT 2

8JE1761E0000 8JE1761E0000

70,62 $

Unit Price

PLATE

8GS475910000 8GS475910000

28,94 $

Unit Price

BEARING(36F)

933060020800 933060020800

33,57 $

Unit Price

OIL SEAL (3X3)

931021521200 931021521200

12,69 $

Unit Price

CAM, SHIFT

8GS185410100 8GS185410100

338,76 $

Unit Price

LEVER

8GS181910000 8GS181910000

61,73 $

Unit Price

COVER, DUST

2H9181540000 2H9181540000

13,79 $

Unit Price

ROD, SHIFT

8GS181150000 8GS181150000

33,42 $

Unit Price

NUT(1KT)

901700835800 901700835800

2,10 $

Unit Price

NUT, HEXAGON SMALL

953070870000

953170870000

1,76 $

Unit Price

BALL, L (L.H)

3X3181571000 3X3181571000

37,42 $

Unit Price

WASHER, PLATE

902010609900 902010609900

2,46 $

Unit Price

BOLT

901010604700 901010604700

5,36 $

Unit Price

WASHER, LOCK

8GS475540100 8GS475540100

23,46 $

Unit Price

CAP, HOUSING

8GS475431000 8GS475431000

836,54 $

Unit Price

BEARING

933062051100

933062053200

27,27 $

Unit Price

OIL SEAL

931023501000 931023501000

21,63 $

Unit Price

NUT(8CJ)

901791067900 901791067900

9,36 $

Unit Price

CIRCLIP(26H)

990095250000 990095250000

15,10 $

Unit Price

PIN, DOWEL (168)

936062004400 936062004400

4,30 $

Unit Price

BEARING

933060071100 933060071100

57,10 $

Unit Price

GAUGE, LEVEL

3Y1153610000 3Y1153610000

31,95 $

Unit Price

NEUTRAL SWITCH ASSY

5LP825400100 5LP825400100

41,02 $

Unit Price

GASKET (1KH, 1.0T)

904301014800 904301014800

6,35 $

Unit Price

BOLT, FLANGE(6TA)

958220803000

958170803000

4,16 $

Unit Price

BOLT, FLANGE(4GB)

958221004500

958171004500

7,14 $

Unit Price

NUT, S-L FLANGE

956021020000 956021020000

5,20 $

Unit Price

BOLT, FLANGE

958221009000

958171009000

7,09 $

Unit Price

BOLT, FLANGE

958220602500 958220602500

2,83 $

Unit Price

HOLDER

8HX476130000 8HX476130000

55,66 $

Unit Price

TENSIONER

8HX476110000 8HX476110000

204,58 $

Unit Price

PIN(86P)

902491221600 902491221600

20,11 $

Unit Price

CIRCLIP(10Y)

990091240000 990091240000

3,59 $

Unit Price

LEVEL, OIL

8GS475460000 8GS475460000

27,90 $

Unit Price

COLLAR

903873000500 903873000500

17,21 $

Unit Price

SPROCKET, CHAIN DRIVE

8FA176820000 8FA176820000

98,45 $

Unit Price

WASHER, CONICAL SPRING

902082600200 902082600200

18,84 $

Unit Price

COLLAR

903872600700 903872600700

20,20 $

Unit Price

CHAIN

948900906800 948900906800

306,07 $

Unit Price

SPROCKET, CHAIN DRIVEN

8KW475870000 8KW475870000

686,17 $

Unit Price

BEARING, CYLINDRICAL(8DA)

933173317900 933173317900

60,55 $

Unit Price

COLLAR(8DA)

903872008G00 903872008G00

31,39 $

Unit Price

WASHER, PLATE(8DA)

90201320S300 90201320S300

13,69 $

Unit Price

BOLT, FLANGE

901051022300

901051007500

11,48 $

Unit Price

COLLAR

903872501800 903872501800

46,57 $

Unit Price

BOLT, SET

901130606400

901130600600

5,17 $

Unit Price

SPROCKET, DRIVE

8FB176920000 8FB176920000

158,03 $

Unit Price

BEARING, CYLINDRICAL(8DA)

933172157800 933172157800

56,45 $

Unit Price

SPRING, COMPRESSION

90501050A000 90501050A000

5,06 $

Unit Price

REVERSE PINION ASSY.

8JE1714A0000 8JE1714A0000

386,00 $

Unit Price

BEARING, CYLINDRICAL(8DA)

933172157800 933172157800

56,45 $

Unit Price

WASHER PLATE (3L6)

902011624500 902011624500

3,94 $

Unit Price

BOLT, FLANGE

90105060A600

958170601600

3,30 $

Unit Price

WASHER, SEAL (7G5)

902100600600 902100600600

4,24 $

Unit Price

BOLT, FLANGE

901050815300

958120803000

3,34 $

Unit Price

WASHER, SEAL(8AB)

902100801700 902100801700

7,49 $

Unit Price

JOURNAL 1

8GS475710000 8GS475710000

427,77 $

Unit Price

GEAR, REVERSE WHEEL 1

8JE172430000 8JE172430000

584,23 $

Unit Price

DOG, TRANSMISSION SHIFT

8CW174920000 8CW174920000

237,76 $

Unit Price

SPRING, COMPRESSION(8DA)

90501066J500 90501066J500

2,13 $

Unit Price

CIRCLIP(8DA)

934403917500 934403917500

24,21 $

Unit Price

COLLAR

8GS475640000 8GS475640000

104,50 $

Unit Price

1ST WHEEL GEAR ASSY

8KW172100000 8KW172100000

509,44 $

Unit Price

BEARING, CYLINDRICAL(8DA)

933172157800 933172157800

56,45 $

Unit Price

1ST PINION GEAR ASSY

8JE171100000 8JE171100000

486,73 $

Unit Price

BEARING, CYLINDRICAL(8DA)

933172157800 933172157800

56,45 $

Unit Price

FORK, SHIFT 1

8GS185110000 8GS185110000

159,19 $

Unit Price

BAR, SHIFT FORK GUIDE 1

8GS185310000 8GS185310000

33,20 $

Unit Price

BALL

935030800700 935030800700

1,68 $

Unit Price

SPRING, COMPRESSION (465)

905011035300 905011035300

3,88 $

Unit Price

BOLT, FLANGE

901051400300 901051400300

10,66 $

Unit Price

GASKET 256131670000

904301404300 904301404300

7,43 $

Unit Price

O-RING (36R)

932102564200 932102564200

6,54 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Yamaha, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
