KICK STARTER

PRIMARY SHEAVE FOR YAMAHA SIDEWINDER 2020

SECONDARY SHEAVE

Item numbers

V-BELT, 8JP

8JP176410000 8JP176410000

203,18 $

Unit Price

PRIMARY FIXED SHEAVE COMP.

8KC176100000 8KC176100000

442,57 $

Unit Price

PRIMARY SLIDING SHEAVE COMP.

8KC176200000 8KC176200000

269,11 $

Unit Price

BUSH, BIMETAL FORMED(8AS)

903844124200 903844124200

64,46 $

Unit Price

COLLAR

903870506000 903870506000

16,47 $

Unit Price

BOLT, SET

901130505300

901130504100

3,72 $

Unit Price

BOLT, FLANGE

901050503000 901050503000

1,50 $

Unit Price

NUT, S-L FLANGE

956020520000

956070520000

4,71 $

Unit Price

WASHER, PLATE

902013301600 902013301600

24,09 $

Unit Price

SPIDER

8KC176270000 8KC176270000

169,75 $

Unit Price

SLIDER

8KC176530000 8KC176530000

28,83 $

Unit Price

O-RING (214)

932100710000 932100710000

7,03 $

Unit Price

COLLAR

903870505900 903870505900

17,49 $

Unit Price

BOLT, FLANGE

901050503000 901050503000

1,50 $

Unit Price

NUT, S-L FLANGE

956020520000

956070520000

4,71 $

Unit Price

PRIMARY SHEAVE CAP COMP.

8DF176300000 8DF176300000

232,24 $

Unit Price

BUSH, SOLID(8CP)

903802823700 903802823700

34,08 $

Unit Price

BOLT, FLANGE

958120603000 958120603000

1,90 $

Unit Price

WASHER, PLATE

902020900200 902020900200

1,23 $

Unit Price

ROLLER, COMP

8FG176240000 8FG176240000

81,21 $

Unit Price

BUSH

903860900100 903860900100

65,10 $

Unit Price

WASHER, PLATE

902020800500 902020800500

1,23 $

Unit Price

WEIGHT COMP

8LR176050000 8LR176050000

95,83 $

Unit Price

BUSH

903860800200 903860800200

54,57 $

Unit Price

RIVET, COUNTERSUNK (8AB1)

902610603300 902610603300

3,11 $

Unit Price

RIVET, COUNTERSUNK (8AB1)

902610603300 902610603300

3,11 $

Unit Price

RIVET

902660600100 902660600100

4,00 $

Unit Price

SPRING, COMPRESSION

90501570A100 90501570A100

35,89 $

Unit Price

SLIDER

8KC176531000 8KC176531000

36,11 $

Unit Price

WASHER(JN5)

929071610000 929071610000

16,15 $

Unit Price

BOLT (L=156.5MM)

8V0176471000 8V0176471000

16,59 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

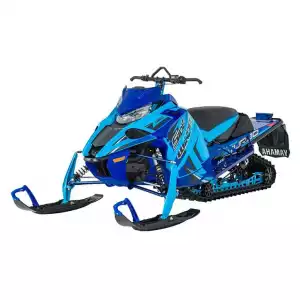

Find on this page all the original spare parts relating to the PRIMARY SHEAVE of your Yamaha SIDEWINDER X-TX LE 146 2.0 of 2020. Let us know if you have any questions.
