Displacement

Year

Model

Finish line

Parts catalogue

Parts diagram

OIL TANK

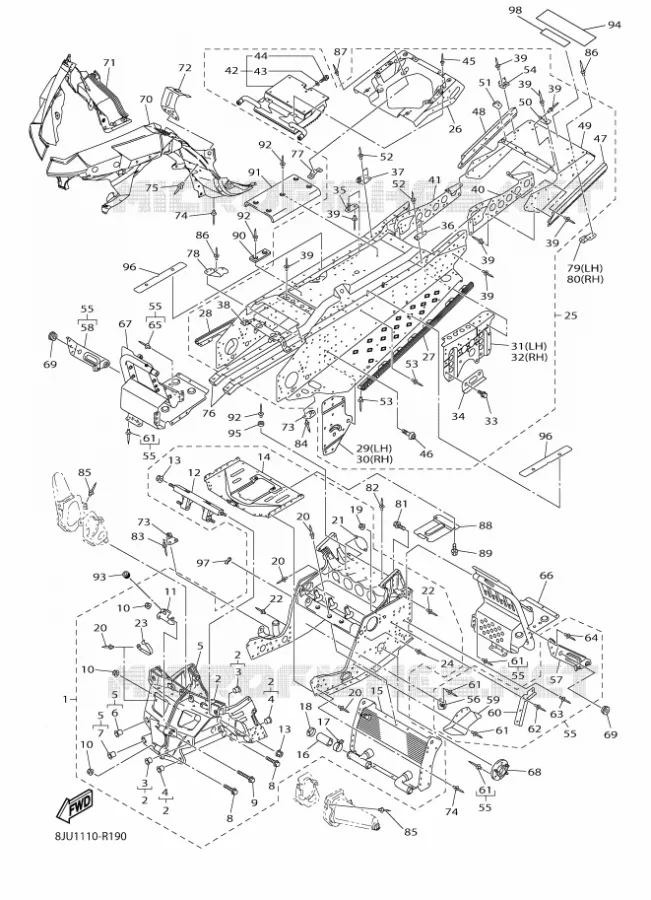

FRAME FOR YAMAHA RS VECTOR 2018

SKI

Item numbers

FRONT FRAME COMP.

8JU219400000 8JU219400000

3 625,33 $

Unit Price

BULKHEAD

8FAW21971300 8FAW21971300

727,47 $

Unit Price

BUSH, SOLID

903811500100 903811500100

9,35 $

Unit Price

BUSH, SOLID

903811600400 903811600400

15,68 $

Unit Price

BULKHEAD 2

8FAW21981500

Not available

BUSH, SOLID

903811500100 903811500100

9,35 $

Unit Price

BUSH, SOLID

903811600400 903811600400

15,68 $

Unit Price

BOLT, FLANGE

958270806000

958170806000

4,26 $

Unit Price

BOLT, WASHER BASED

958270806500

90105084A100

12,43 $

Unit Price

NUT, SELF-LOCKING

956070820000

901850816900

7,57 $

Unit Price

BRACKET 2

8HG2836E0000 8HG2836E0000

20,29 $

Unit Price

BRACKET, STEERING 1

8FG219470000 8FG219470000

331,92 $

Unit Price

NUT, SELF-LOCKING(JN5)

956071020000 956071020000

4,90 $

Unit Price

PROTECTOR

8FR2193A0100 8FR2193A0100

177,07 $

Unit Price

HEAT EXCHANGER ASSY

8JA124400000 8JA124400000

732,20 $

Unit Price

HOSE 7

8FA125510000 8FA125510000

10,25 $

Unit Price

CLIP (8M6)

904672804600 904672804600

12,96 $

Unit Price

HOSE CLAMP ASSY

904503500100 904503500100

16,48 $

Unit Price

NUT, SELF-LOCKING

956070820000

901850816900

7,57 $

Unit Price

RIVET, BLIND

902674719500 902674719500

1,87 $

Unit Price

PLATE, COVER

8ES2131D0000 8ES2131D0000

7,72 $

Unit Price

RIVET, BLIND

902674817600

902674801600

2,51 $

Unit Price

CLAMP

904620808300 904620808300

18,72 $

Unit Price

RIVET, BLIND

902674817700 902674817700

2,41 $

Unit Price

REAR FRAME COMP.

8JU219500000 8JU219500000

3 356,08 $

Unit Price

REINEFORCEMENT, FRAME REAR 1

8FAW21991000 8FAW21991000

814,07 $

Unit Price

REINFORCEMENT, FOOTREST 1

8FG219260000 8FG219260000

241,56 $

Unit Price

REINFORCEMENT, FOOTREST 2

8FG219360000 8FG219360000

249,51 $

Unit Price

BRACKET, MAIN TRACK 1

8HN219430000 8HN219430000

68,23 $

Unit Price

BRACKET, MAIN TRACK 2

8HN219530000 8HN219530000

64,04 $

Unit Price

BRACKET, RR.TRACK SUSPENTION 1

8FT219440000 8FT219440000

152,60 $

Unit Price

BRACKET, RR.TRACK SUSPENTION 2

8FT219540000 8FT219540000

140,62 $

Unit Price

BOLT, FLANGE

958141002000 958141002000

5,17 $

Unit Price

PATCH 8

8FU219880100 8FU219880100

14,71 $

Unit Price

BRACKET, FUEL TANK 1

8CR2194N0000 8CR2194N0000

6,24 $

Unit Price

BRACKET 1

8FA2194X0000 8FA2194X0000

5,17 $

Unit Price

BRACKET 2

8FA2195X0000 8FA2195X0000

5,17 $

Unit Price

PROTECTOR, MUFFLER

8ES2194H0000 8ES2194H0000

103,04 $

Unit Price

RIVET, BLIND

902674719500 902674719500

1,87 $

Unit Price

PATCH 3

8FT219630100 8FT219630100

110,02 $

Unit Price

PATCH 4

8FT219640100 8FT219640100

110,02 $

Unit Price

HEAT EXCHANGER ASSY 4

8FT1241A0000 8FT1241A0000

1 006,78 $

Unit Price

WASHER, SEAL (7G5)

902100600600 902100600600

4,24 $

Unit Price

BOLT, FLANGE

958120601200 958120601200

1,29 $

Unit Price

RIVET, BLIND(3JB)

902674809500 902674809500

4,02 $

Unit Price

BOLT, BUTTON HEAD

920121002000 920121002000

4,66 $

Unit Price

MEMBER, SIDE 1

8FG2111J0000 8FG2111J0000

152,04 $

Unit Price

MEMBER, SIDE 2

8FG2111K0000 8FG2111K0000

152,04 $

Unit Price

PANEL, SUB FRAME 5

8FT219160100 8FT219160100

250,54 $

Unit Price

PATCH 8

8FG219880000 8FG219880000

6,70 $

Unit Price

PATCH 9

8FG219890000 8FG219890000

6,70 $

Unit Price

RIVET, BLIND

902674719700 902674719700

2,53 $

Unit Price

RIVET, BLIND

902674802300 902674802300

2,10 $

Unit Price

BRACKET, REFLECTOR 1

8FT2113J0000 8FT2113J0000

19,56 $

Unit Price

FRAME CONNECTION KIT

8JUW21950000 8JUW21950000

414,37 $

Unit Price

BRACKET, CHAIN HOUSING

8CR219390100 8CR219390100

9,96 $

Unit Price

BRACKET, 5

8JA2196M0000 8JA2196M0000

57,45 $

Unit Price

BRACKET, 6

8JA2197M0000 8JA2197M0000

56,26 $

Unit Price

COVER 2

8FP2198G0100 8FP2198G0100

27,36 $

Unit Price

CLAMP, WIREHARNESS

8FA219990000 8FA219990000

8,61 $

Unit Price

RIVET, BLIND

902674719500 902674719500

1,87 $

Unit Price

RIVET, BLIND

902674801800 902674801800

3,13 $

Unit Price

RIVET, BLIND

902674817600

902674801600

2,51 $

Unit Price

RIVET, BLIND

902674817700 902674817700

2,41 $

Unit Price

RIVET, BLIND

902674801600 902674801600

2,51 $

Unit Price

FOOTREST COMP. 1

8JA219600000 8JA219600000

433,39 $

Unit Price

FOOTREST COMP. 2

8HG219700000 8HG219700000

425,54 $

Unit Price

HOUSING, REINF SUB-ASSY(L.H)

8EK219200100 8EK219200100

22,60 $

Unit Price

GROMMET(4FU)

904801356700 904801356700

9,17 $

Unit Price

FRAME UNDER 1

8GM2196A0100 8GM2196A0100

342,97 $

Unit Price

FRAME, UNDER 2

8FP2196E0200 8FP2196E0200

96,43 $

Unit Price

BRACKET, GUARD FITTING

8FP219720000 8FP219720000

38,62 $

Unit Price

BRACKET 3

8FA2196F0000 8FA2196F0000

7,92 $

Unit Price

RIVET, BLIND

902674801800 902674801800

3,13 $

Unit Price

RIVET, BLIND(8CH)

902674718700 902674718700

1,88 $

Unit Price

PROTECTOR, FRAME

8FT219780000 8FT219780000

224,86 $

Unit Price

BRACKET 7

8FT2197N0000 8FT2197N0000

14,71 $

Unit Price

BRACKET 7

8FU2197N0000 8FU2197N0000

23,62 $

Unit Price

BRACKET 3

8FT2196F0000 8FT2196F0000

24,23 $

Unit Price

BRACKET 4

8FT2196G0000 8FT2196G0000

18,65 $

Unit Price

BOLT, FLANGE(8AB)

958220802000

958170802000

3,47 $

Unit Price

RIVET, BLIND(8CR)

902674816900

902674718600

1,88 $

Unit Price

RIVET, BLIND (22W)

902674808300 902674808300

4,02 $

Unit Price

RIVET, BLIND(3JB)

902674809500 902674809500

4,02 $

Unit Price

RIVET, BLIND

902674719500 902674719500

1,87 $

Unit Price

RIVET, BLIND

902674802300 902674802300

2,10 $

Unit Price

RIVET, BLIND

902674817700 902674817700

2,41 $

Unit Price

PROTECTOR, FRAME FR

8FR2197E0000 8FR2197E0000

49,27 $

Unit Price

BOLT, BUTTON HEAD

920120601200 920120601200

1,68 $

Unit Price

SPACER

8FA219980000 8FA219980000

7,88 $

Unit Price

SHIELD, HEAT

8FG238920000 8FG238920000

79,57 $

Unit Price

RIVET, BLIND (8L0)

902674805900 902674805900

4,00 $

Unit Price

DAMPER, SIDE COVER (437)

904801205300 904801205300

5,86 $

Unit Price

LABEL, WARNING 2

8HA77762E000 8HA77762E000

14,37 $

Unit Price

STOPPER

8HG247680000 8HG247680000

11,22 $

Unit Price

DAMPER 1

8HG2214F0000 8HG2214F0000

16,42 $

Unit Price

TAPE 4

8FA7717H0000 8FA7717H0000

2,46 $

Unit Price

LABEL, WARNING 5

8JT77765E000 8JT77765E000

8,08 $

Unit Price
