Displacement

Year

Model

Finish line

Parts catalogue

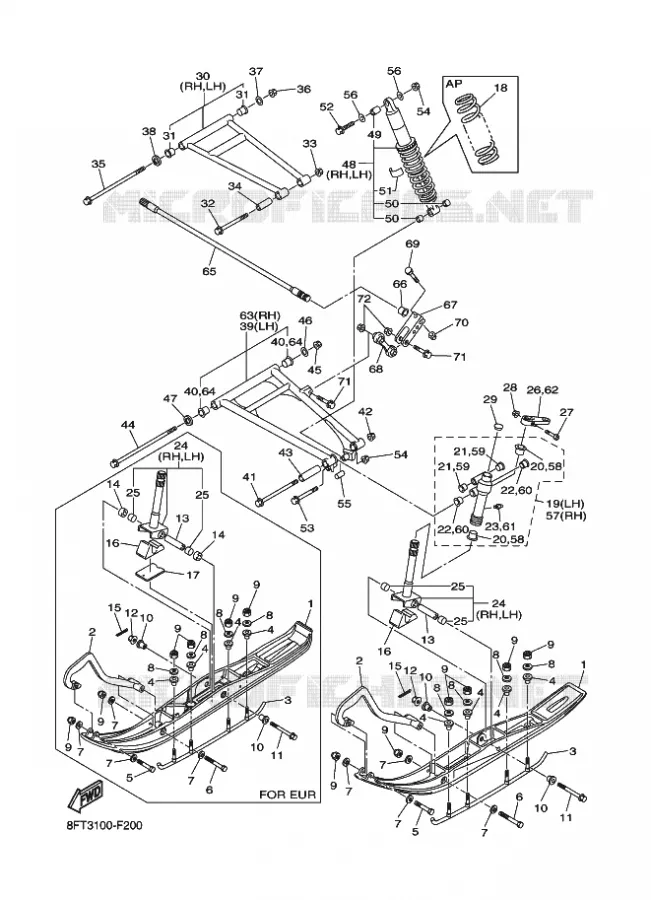

Parts diagram

FRAME

SKI FOR YAMAHA APEX 2007

STEERING

Item numbers

SKI MID KEEL BK :SM

8ESF37110000

8ES2371100BK

176,95 $

Unit Price

SKH TRAIL SKI HANDLE BK :SM

8DMF37120000

8DM2371200BK

48,95 $

Unit Price

RUNNER 1 :SM

8EKF37310000

8DM2373100XX

135,71 $

Unit Price

BUSH, SKI 1

8EKF37510000

Not available

BOLT, HEXAGON

9702M0805500

970170805500

6,83 $

Unit Price

BOLT, HEXAGON

9702M0810000

970270810000

6,52 $

Unit Price

WASHER, PLATE (3L7)

902010878400 902010878400

3,90 $

Unit Price

WASHER, PLATE(3XP)

90201086P800 90201086P800

7,11 $

Unit Price

NUT, NYLON

9570M0830000

957170830000

2,56 $

Unit Price

COLLAR 1

8EXF37540000

8EX237540000

20,32 $

Unit Price

BOLT, FLANGE

901051007000 901051007000

13,28 $

Unit Price

NUT, SELF-LOCKING(JN5)

956071020000 956071020000

4,90 $

Unit Price

COLLAR

903871012H00 903871012H00

22,12 $

Unit Price

COTTER PIN

914012002000 914012002000

3,75 $

Unit Price

STOPPER 1

8CR237431000 8CR237431000

29,71 $

Unit Price

SPRING ASSY 1 (K=2.3)

8FR237600000 8FR237600000

267,82 $

Unit Price

SPRING ASSY 1 (K=3.0)

8FR237601000 8FR237601000

Not available

STEERING KNUCKLE ASSY (LEFT)

8ES235011000 8ES235011000

554,65 $

Unit Price

BUSH, SOLID

903812511500 903812511500

11,09 $

Unit Price

BUSH, SOLID

9038115N5000 9038115N5000

7,16 $

Unit Price

BUSH, SOLID

9038118N5100 9038118N5100

10,87 $

Unit Price

NIPPLE, GREASE(6A1)

937000600400

9370006M0300

11,55 $

Unit Price

COLUMN, SKI ASSY

8ES238030000 8ES238030000

245,36 $

Unit Price

BUSH, BIMETAL FORMED

9038416N5100 9038416N5100

10,34 $

Unit Price

ARM, OUTSIDE 1

8FA238510000 8FA238510000

149,99 $

Unit Price

BOLT, HEXAGON SOCKET HEAD

9011008N5300 9011008N5300

4,25 $

Unit Price

NUT, SELF-LOCKING

956070820000

901850816900

7,57 $

Unit Price

CAP, CASE

3YK224724000 3YK224724000

7,16 $

Unit Price

FRONT UPPER ARM COMP.

8FR235401000

8GD235401000

649,44 $

Unit Price

BUSH, SOLID

9038115N5000 9038115N5000

7,16 $

Unit Price

BOLT, FLANGE

9010510N5600 9010510N5600

13,31 $

Unit Price

NUT, SELF-LOCKING(JN5)

956071020000 956071020000

4,90 $

Unit Price

COLLAR

9038710N5800

903871009900

20,87 $

Unit Price

BOLT, FLANGE

9010510N5400 9010510N5400

41,88 $

Unit Price

NUT, SELF-LOCKING(JN5)

956071020000 956071020000

4,90 $

Unit Price

WASHER, PLATE (17K)

90201106F200 90201106F200

3,75 $

Unit Price

WASHER

9020915N5000 9020915N5000

2,37 $

Unit Price

FRONT LOWER ARM COMP. (LEFT)

8ES235701000

8JA235701000

501,93 $

Unit Price

BUSH, SOLID

9038116N5100 9038116N5100

10,35 $

Unit Price

BOLT, FLANGE

9010512N5400 9010512N5400

17,00 $

Unit Price

NUT, U FLANGE

956071220000 956071220000

7,77 $

Unit Price

COLLAR

9038712N5400 9038712N5400

21,51 $

Unit Price

BOLT, FLANGE

9010510N5500 9010510N5500

52,63 $

Unit Price

NUT, SELF-LOCKING(JN5)

956071020000 956071020000

4,90 $

Unit Price

WASHER, PLATE (17K)

90201106F200 90201106F200

3,75 $

Unit Price

WASHER

9020915N5000 9020915N5000

2,37 $

Unit Price

ABSORBER ASSY 1

8GV2376A0000 8GV2376A0000

1 125,66 $

Unit Price

DAMPER, BUSH B

8FA2331R0000 8FA2331R0000

14,57 $

Unit Price

BUSH, BIMETAL FORMED

9038415N5100 9038415N5100

7,56 $

Unit Price

LABEL, WARNING

4AA222597000

4AA222596000

12,76 $

Unit Price

BOLT, WASHER BASED (4K0)

901051023200

901051016900

7,65 $

Unit Price

BOLT, WASHER BASED(59V)

901051039200 901051039200

10,94 $

Unit Price

NUT, SELF-LOCKING(JN5)

956071020000 956071020000

4,90 $

Unit Price

COLLAR

9038710N5900 9038710N5900

16,82 $

Unit Price

WASHER, PLATE (17K)

90201106F200 90201106F200

3,75 $

Unit Price

STEERING KNUCKLE ASSY (RIGHT)

8ES235021000 8ES235021000

554,65 $

Unit Price

BUSH, SOLID

903812511500 903812511500

11,09 $

Unit Price

BUSH, SOLID

9038115N5000 9038115N5000

7,16 $

Unit Price

BUSH, SOLID

9038118N5100 9038118N5100

10,87 $

Unit Price

NIPPLE, GREASE(6A1)

937000600400

9370006M0300

11,55 $

Unit Price

ARM, OUTSIDE 2

8FA238520000 8FA238520000

149,99 $

Unit Price

FRONT LOWER ARM COMP. (RIGHT)

8ES235801000

8JA235801000

501,93 $

Unit Price

BUSH, SOLID

9038116N5100 9038116N5100

10,35 $

Unit Price

BAR, STABILIZER FRONT

8FG2386E0000 8FG2386E0000

227,25 $

Unit Price

BUSH, STABILIZER FRONT

8FG2386G0000 8FG2386G0000

5,34 $

Unit Price

ARM, STABILIZER

8FG2386L0000 8FG2386L0000

106,38 $

Unit Price

JOINT, STABILIZER 1

8ES2385L0000 8ES2385L0000

125,84 $

Unit Price

BOLT, HEXAGON (538)

901010676500

901010627800

2,61 $

Unit Price

NUT, U FLANGE

956040620000 956040620000

4,30 $

Unit Price

BOLT, FLANGE(4FM)

958140803000 958140803000

5,09 $

Unit Price

NUT, U FLANGE(4KG)

956040820000 956040820000

2,84 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Yamaha, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
