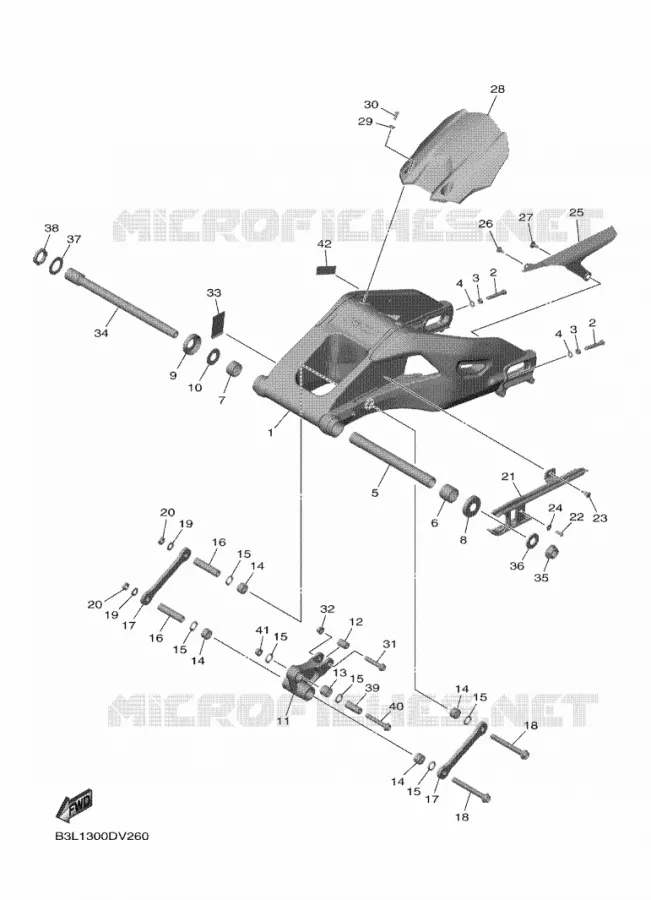

SWINGARM FOR YAMAHA R1 2022

REAR SHOCK ABSORBER

Item numbers

REAR ARM COMP.

B3L221100000 B3L221100000

3 009,42 $

Unit Price

BOLT

901010801300 901010801300

2,03 $

Unit Price

NUT

953020860000 953020860000

3,75 $

Unit Price

WASHER, PLATE

902010805700 902010805700

3,04 $

Unit Price

BUSH

2CR221840000 2CR221840000

132,00 $

Unit Price

BEARING

933175289700 933175289700

46,06 $

Unit Price

BEARING, CYLINDRICAL(6U4)

93317428U800 93317428U800

65,36 $

Unit Price

COVER, THRUST 1

5VY221280000 5VY221280000

16,44 $

Unit Price

COVER, THRUST 1

4C8221280000 4C8221280000

29,77 $

Unit Price

WASHER, PLATE

902012201900 902012201900

9,67 $

Unit Price

ARM, RELAY

B3L2217A0000 B3L2217A0000

269,57 $

Unit Price

COLLAR

903871012A00 903871012A00

23,63 $

Unit Price

BEARING

933153175900 933153175900

40,81 $

Unit Price

BEARING

933153175800 933153175800

40,67 $

Unit Price

OIL SEAL

931091707100 931091707100

5,30 $

Unit Price

COLLAR(4BH)

90387126Y100 90387126Y100

25,16 $

Unit Price

ARM 1

2CR2217M0000 2CR2217M0000

71,94 $

Unit Price

BOLT

901091201000 901091201000

30,65 $

Unit Price

WASHER(6TA)

929021260000

929071260000

2,13 $

Unit Price

NUT, SELF-LOCKING

901851201100 901851201100

10,87 $

Unit Price

SEAL, GUARD

2CR221511000 2CR221511000

78,97 $

Unit Price

BOLT, BUTTON HEAD

920120601600 920120601600

1,90 $

Unit Price

RIVET

902690700700 902690700700

3,73 $

Unit Price

COLLAR

903870624200 903870624200

8,61 $

Unit Price

CASE, CHAIN

2CR223110000 2CR223110000

65,55 $

Unit Price

RIVET

902690700700 902690700700

3,73 $

Unit Price

BOLT, HEXAGON SOCKET HEAD(3HE)

901100620000 901100620000

3,72 $

Unit Price

REAR FENDER COMP.

2CR216500100 2CR216500100

25,35 $

Unit Price

SPACER (25G)

905600624400 905600624400

4,68 $

Unit Price

BOLT, BUTTON

920140601600 920140601600

4,24 $

Unit Price

BOLT, WASHER BASED

901051001700 901051001700

15,14 $

Unit Price

NUT, S-L FLANGE

956021020000 956021020000

5,20 $

Unit Price

SEAL

5UY212690000 5UY212690000

9,86 $

Unit Price

SHAFT, PIVOT

14B221410000 14B221410000

154,64 $

Unit Price

NUT, SELF-LOCKING

901852000800 901852000800

37,57 $

Unit Price

WASHER, PLATE

902012002600 902012002600

12,33 $

Unit Price

WASHER, PLATE

902013001600 902013001600

22,08 $

Unit Price

NUT

4C8222520000 4C8222520000

18,82 $

Unit Price

COLLAR

903871012B00 903871012B00

17,26 $

Unit Price

BOLT

901091001700 901091001700

14,77 $

Unit Price

NUT, S-L FLANGE

956021020000 956021020000

5,20 $

Unit Price

LABEL, TIRE

BM6216680000 BM6216680000

10,54 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SWINGARM of your Yamaha YZF-R1 of 2022. Let us know if you have any questions.
