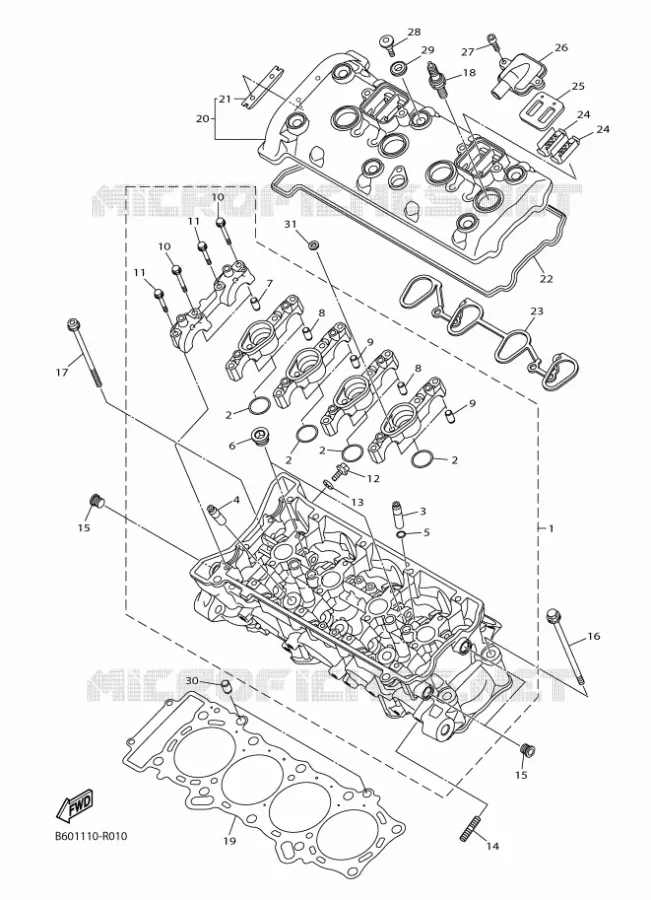

CYLINDER HEAD FOR YAMAHA R1M 2018

CYLINDER

Item numbers

CYLINDER HEAD ASSY

BX4W11010900

Not available

O-RING(36Y)

932102665800 932102665800

8,69 $

Unit Price

GUIDE, VALVE 1

2CR111331000 2CR111331000

145,89 $

Unit Price

GUIDE, VALVE 2

2CR111341000 2CR111341000

112,40 $

Unit Price

CIRCLIP(1WG)

934401015300 934401015300

0,89 $

Unit Price

PLUG, STRAIGHT SCR

903401800400 903401800400

28,73 $

Unit Price

PIN, DOWEL(3XW)

918081602300 918081602300

4,63 $

Unit Price

PIN, DOWEL(3XW)

918081602300 918081602300

4,63 $

Unit Price

PIN, DOWEL(3XW)

918081602300 918081602300

4,63 $

Unit Price

BOLT, WASHER BASED

901050602700 901050602700

2,54 $

Unit Price

BOLT, FLANGE

901050620900 901050620900

1,58 $

Unit Price

BOLT, FLANGE

950220601200 950220601200

1,04 $

Unit Price

GASKET 256113960000

904300601400 904300601400

5,45 $

Unit Price

BOLT, STUD

956120861500 956120861500

2,78 $

Unit Price

PLUG, STRAIGHT SCREW

903401201300

903401201400

14,05 $

Unit Price

BOLT, WITH WASHER

901190901600 901190901600

23,70 $

Unit Price

BOLT, HEXAGON SOCKET HEAD

901100631500 901100631500

6,17 $

Unit Price

SPARK PLUG LMAR9E-J

947010042400 947010042400

23,49 $

Unit Price

GASKET, CYLINDER H

2CR111810000 2CR111810000

137,01 $

Unit Price

COVER, CYLINDER HEAD 1

BX4111910000 BX4111910000

412,36 $

Unit Price

GUIDE, STOPPER 2

5BE122410000

5BE122410100

36,66 $

Unit Price

GASKET, HEAD COVER

2CR111930000 2CR111930000

34,81 $

Unit Price

GASKET, HEAD COVER

2CR111940000 2CR111940000

15,76 $

Unit Price

PLATE

5VY1482K0000 5VY1482K0000

5,16 $

Unit Price

REED VALVE ASSY

5SL148901000 5SL148901000

51,52 $

Unit Price

CAP, CASE

14B148990100 14B148990100

44,85 $

Unit Price

BOLT

901100617500

913120602000

4,00 $

Unit Price

BOLT(4BP)

90109066F000 90109066F000

10,14 $

Unit Price

RUBBER, MOUNT 1

5VY1111G0000 5VY1111G0000

24,30 $

Unit Price

PIN, DOWEL(3VD)

995301011400 995301011400

3,70 $

Unit Price

GASKET (4V2)

904300616600 904300616600

3,85 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Yamaha, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
