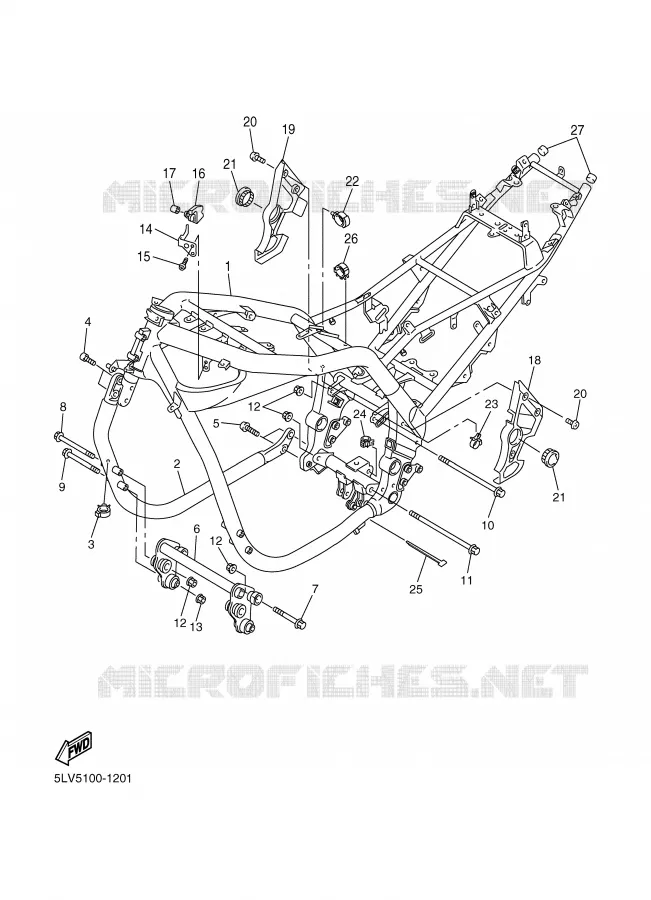

FRAME FOR YAMAHA FAZER 2002

FENDER

FRAME

5LV211100100

999990334200

2 153,11 $

Unit Price

TUBE INCLINE COMP. 2

5LV211500000 5LV211500000

Not available

CLAMP(4KM)

904642521700 904642521700

5,40 $

Unit Price

BOLT, SOCKET

901101019100

913171002500

9,08 $

Unit Price

BOLT, HEX. SOCKET BUTTON

901111000400

901111001900

5,53 $

Unit Price

ENGINE BRACKET COM

5LV214000000 5LV214000000

468,68 $

Unit Price

BOLT, WASHER BASED

901051002800 901051002800

12,48 $

Unit Price

BOLT, WASHER BASED

901051002700 901051002700

12,05 $

Unit Price

FLANGE BOLT

901050804200 901050804200

Not available

BOULON, A COLLERETTE

958171018000 958171018000

Not available

BOLT, FLANGE(MH0)

958171019000 958171019000

12,24 $

Unit Price

NUT, SELF-LOCKING(JN5)

956071020000 956071020000

4,90 $

Unit Price

NUT, SELF-LOCKING

956070820000

901850816900

7,57 $

Unit Price

SUPPORT 7

4XV2116J0000 4XV2116J0000

Not available

SCREW, BINDING

989070601200 989070601200

2,29 $

Unit Price

SUPPORT 1

4XV2116A0000 4XV2116A0000

Not available

COLLAR

90387061K900 90387061K900

1,52 $

Unit Price

COVER

5LV2117F0000 5LV2117F0000

385,85 $

Unit Price

COVER 2

5LV2117M0000 5LV2117M0000

385,85 $

Unit Price

SCREW(3XV)

901490629800 901490629800

6,67 $

Unit Price

COVER

4BH2219X0000 4BH2219X0000

39,31 $

Unit Price

CLAMP(4AP)

904642018100 904642018100

3,70 $

Unit Price

CLAMP(4GY)

904641019000 904641019000

7,93 $

Unit Price

CLAMP(4GY)

904640818900 904640818900

3,25 $

Unit Price

CLAMP(4FM)

904641519500 904641519500

4,93 $

Unit Price

CLAMP(4KM)

904642521700 904642521700

5,40 $

Unit Price

CAP

3YX2143A0000 3YX2143A0000

3,62 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRAME of your Yamaha FZS1000 of 2002. Let us know if you have any questions.
