REAR FENDER

COVER FOR YAMAHA GTS 1998

SIDE COVER

COUVRE RESERVOIR

4BH2170F00P0 4BH2170F00P0

Not available

BOITE

4BH2177A0000 4BH2177A0000

Not available

SCREW, TAPPING(JN5)

977075001000 977075001000

0,56 $

Unit Price

COUVERCLE

4BH2177E00P0 4BH2177E00P0

Not available

LOCK, SIDE COVER

4BH217080100 4BH217080100

109,35 $

Unit Price

COUVERCLE 2

4BH2177J00P0 4BH2177J00P0

Not available

SUPPORT 3

4BH2175V0000 4BH2175V0000

Not available

GUIDE 1

4BH2178L0000 4BH2178L0000

Not available

SCREW, PAN TAP.2

977075050800 977075050800

0,69 $

Unit Price

CROCHET

4BH283790000 4BH283790000

Not available

TORSION SPRING

90508104A100 90508104A100

5,20 $

Unit Price

GOUPILLE, FENDUE

914012504500 914012504500

Not available

PIN, COTTER (AM5)

914013004500

914903004500

6,22 $

Unit Price

RESSORT, TORSION

90508203A600 90508203A600

Not available

SCREW, TAPPING(JN5)

977075001000 977075001000

0,56 $

Unit Price

SPRING, TENSION

905060735500 905060735500

8,53 $

Unit Price

SUPPORT 4

4BH2175W0000 4BH2175W0000

Not available

SCREW, PAN TAP.2

977075050800 977075050800

0,69 $

Unit Price

SCREW, BINDING (10V)

901540501300 901540501300

3,58 $

Unit Price

DURITE

90445115H200 90445115H200

Not available

DURITE 1, RACCORDEMENT

4BH243760000 4BH243760000

Not available

CLIP.(8E6)

904671102800 904671102800

7,30 $

Unit Price

COUVERCLE DE REMPLISSEUR

4BH2414A0000 4BH2414A0000

Not available

SUPPORT 1

4BH2172K0000 4BH2172K0000

Not available

SUPPORT 2

4BH2172L0000 4BH2172L0000

Not available

SUPPORT 3

4BH2172M0000 4BH2172M0000

Not available

SUPPORT 4

4BH2172N0000 4BH2172N0000

Not available

SCREW, PAN TAP.2

977075050800 977075050800

0,69 $

Unit Price

AMORTISSEUR

4BH217460100 4BH217460100

Not available

SCREW, BINDING

989070501200 989070501200

2,10 $

Unit Price

NUT, HEXAGON

953070560000

953170560000

1,90 $

Unit Price

O-RING (2H7)

932104836400 932104836400

5,35 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

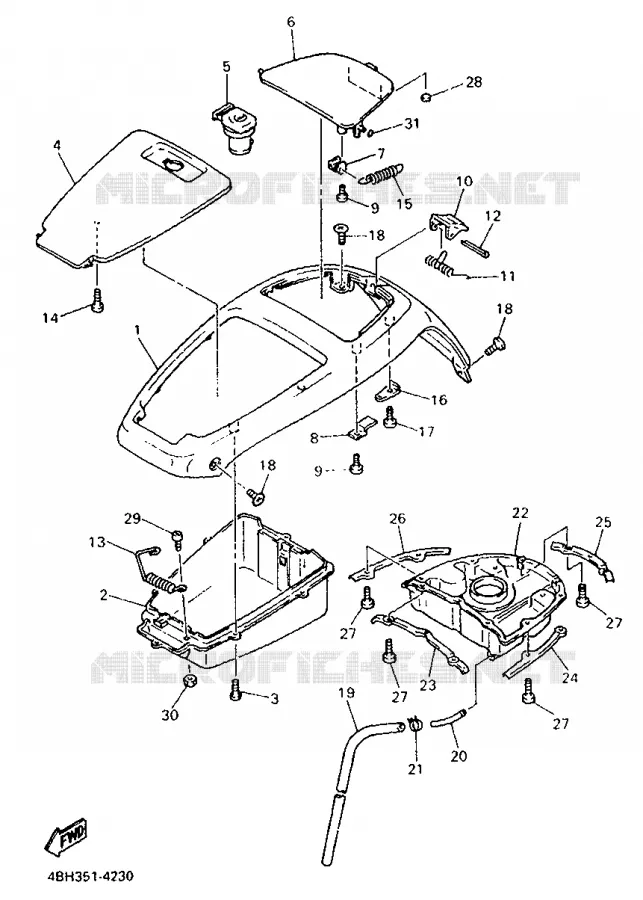

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the COVER of your Yamaha GTS1000 of 1998. Let us know if you have any questions.
