TAIL LIGHT

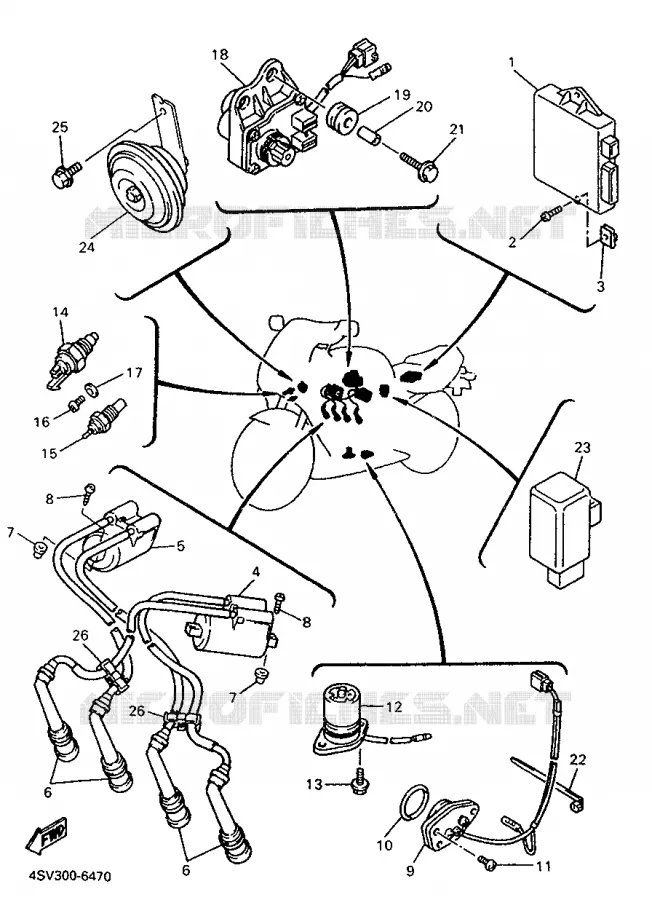

ELECTRICAL 1 FOR YAMAHA THUNDERACE 1996

ELECTRICAL 2

BLOC D ALLUMAGE

4SV823050000 4SV823050000

Not available

BLOC D ALLUMAGE

4VD823050000 4VD823050000

Not available

BOLT, BUTTON

920170602000 920170602000

4,00 $

Unit Price

NUT, SPRING (26H)

901830602300 901830602300

9,95 $

Unit Price

IGNITION COIL ASSY

4FM823100000

4KM823100200

283,31 $

Unit Price

IGNITION COIL ASSY

4FM823200000

4BH823200100

197,69 $

Unit Price

PLUG CAP ASSY

4SV823700000

4SV823701000

51,60 $

Unit Price

PLUG(4BP)

903380822600 903380822600

2,64 $

Unit Price

SCREW, TAPPING

977076052500 977076052500

0,59 $

Unit Price

NEUTRAL SWITCH ASS

4FM825400000

4FM825400100

112,19 $

Unit Price

O-RING (371)

932102919600 932102919600

10,15 $

Unit Price

SCREW, PAN HEAD(3TJ)

985070601600 985070601600

2,29 $

Unit Price

OIL LEVEL GAUGE ASSY

3GM857200000 3GM857200000

217,98 $

Unit Price

BOLT, FLANGE(4DU)

950270601400 950270601400

0,89 $

Unit Price

THERMO SWITCH ASSY

3LN825600100 3LN825600100

109,11 $

Unit Price

THERMO UNIT

11H835910000 11H835910000

53,01 $

Unit Price

SCREW, PAN

985070601000 985070601000

2,29 $

Unit Price

WASHER(6TA)

929070660000 929070660000

1,83 $

Unit Price

SERVO MOTOR ASSY

4FM858200000

4FM858200100

463,93 $

Unit Price

GROMMET (36Y)

904801441200 904801441200

4,97 $

Unit Price

COLLAR(3GM)

903870609L00 903870609L00

7,04 $

Unit Price

BOLT, FLANGE

958170603000 958170603000

3,91 $

Unit Price

CLAMP(4FM)

904641307300

904641519500

4,93 $

Unit Price

FLASHER RELAY ASSY

3GM833500100

3GM833500300

185,85 $

Unit Price

HORN

3TB833710100

4KM833710000

84,52 $

Unit Price

BOLT, FLANGE

958170601000 958170601000

2,29 $

Unit Price

BRIDE

904641018600 904641018600

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the ELECTRICAL 1 of your Yamaha YZF1000R of 1996. Let us know if you have any questions.
