HANDLEBAR & CABLES

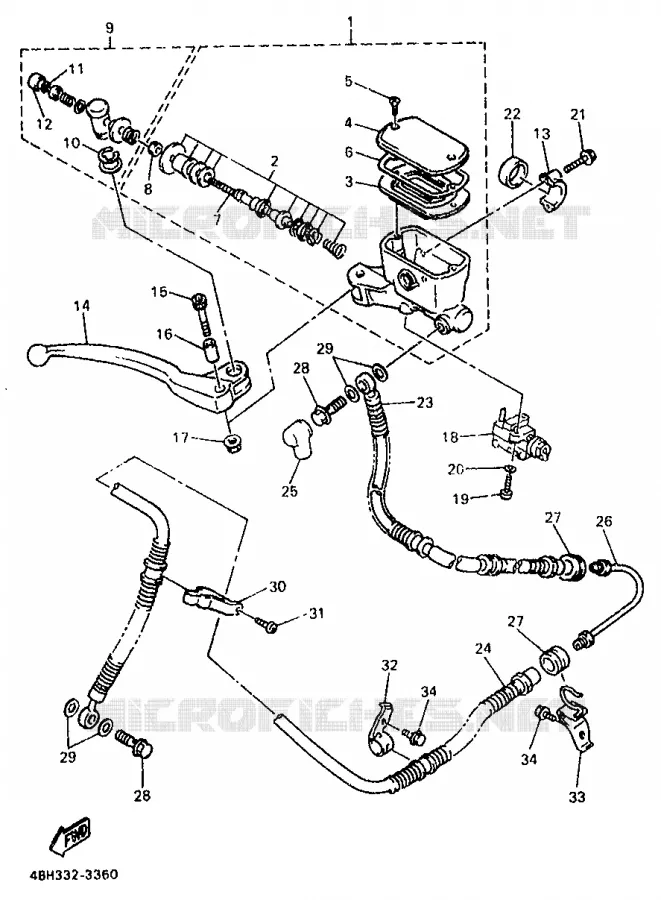

FRONT MASTER CYLINDER FOR YAMAHA GTS 1993

FRONT MASTER CYLINDER 2

MASTER CYLINDER SUB ASSY

4BHW25870000

4BHW25870200

565,51 $

Unit Price

CYLINDER KIT, MASTER

4BHW00410000

4TX258070400

123,76 $

Unit Price

DIAPHRAGM, RESERVOIR

4BH258540000

4BH258540200

41,16 $

Unit Price

.BOUCHON, RESERVOIR

4BH258520000 4BH258520000

Not available

SCREW, FLAT

987060401200

987070401200

1,95 $

Unit Price

SEAL, PISTON

4BH258150000 4BH258150000

40,81 $

Unit Price

ROD, PUSH

3YX258800000 3YX258800000

71,84 $

Unit Price

NUT(661)

953800660000 953800660000

2,14 $

Unit Price

SCREW KIT, MASTER CYLINDER

3YXW00910200 3YXW00910200

118,79 $

Unit Price

CIRCLIP(2R6)

3YX258660000

990010860000

5,32 $

Unit Price

CIRCLIP(6L5)

3YX258661000

990800360000

1,68 $

Unit Price

CIRCLIP(6L5)

3YX258661000

990800360000

1,68 $

Unit Price

BRACKET, MASTER CYLINDER

56A258670000 56A258670000

47,13 $

Unit Price

LEVER

3YX839220900 3YX839220900

31,94 $

Unit Price

BOLT, LEVER

3YX2589F0000 3YX2589F0000

9,77 $

Unit Price

FOURREAU, ETRIER

3TX258380000 3TX258380000

Not available

NUT, SELF-LOCKING

956160610000

956170610000

8,11 $

Unit Price

FRONT STOP SWITCH ASSY

4BH839800000 4BH839800000

41,24 $

Unit Price

SCREW, PAN HEAD

985060401200

985170401200

1,81 $

Unit Price

RONDELLE

929060602500 929060602500

Not available

BOLT, SMALL FLANGE

950260602500

950270602500

2,49 $

Unit Price

COLLAR (2H7)

903872266000 903872266000

4,32 $

Unit Price

DURITE DE FREIN

4BH258720000 4BH258720000

Not available

DURITE DE FREIN

4BH258730000 4BH258730000

Not available

BOOT, MASTER CYLINDER

4L0258620000

4L0258620100

2,97 $

Unit Price

DURITE DE FREIN

4BH258710000 4BH258710000

Not available

PROTECTEUR DE DURITE DE FREIN

341258810000 341258810000

Not available

BOLT, UNION(3GM)

904011009600

904011015900

11,58 $

Unit Price

WASHER, PLATE(481)

902011011800 902011011800

6,40 $

Unit Price

SUPPORT DE DURITE DE FREIN

4BH258750000 4BH258750000

Not available

BOLT, BUTTON

920110601600

920140601600

4,24 $

Unit Price

SUPPORT DE DURITE DE FREIN

4BH258870000 4BH258870000

Not available

SUPPORT DE DURITE DE FREIN

4BH2587A0000 4BH2587A0000

Not available

BOLT, FLANGE

958110601200

958170601200

1,39 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT MASTER CYLINDER of your Yamaha GTS1000 of 1993. Let us know if you have any questions.
