TAIL LIGHT

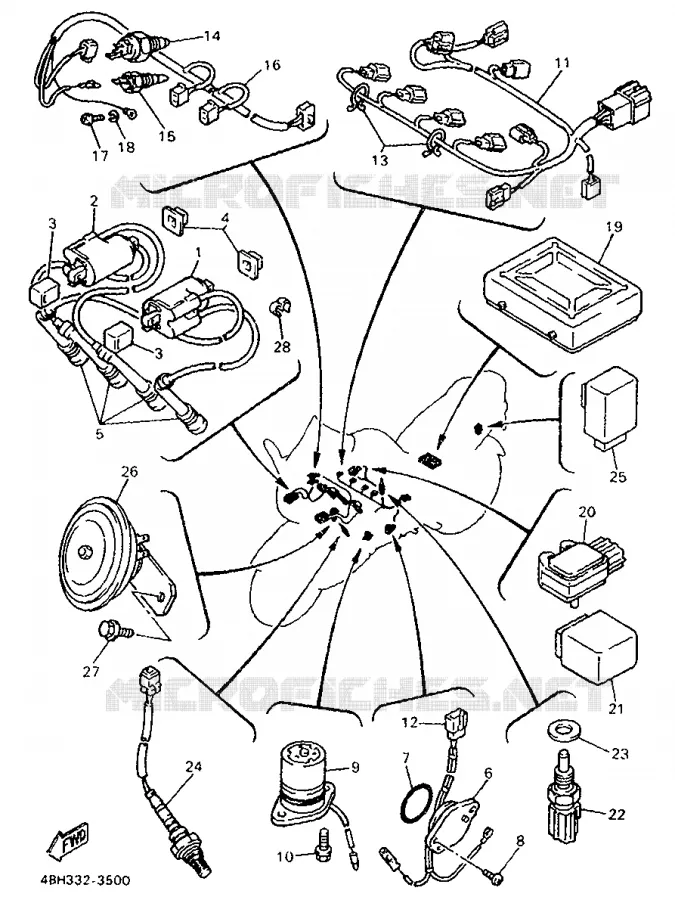

ELECTRICAL 1 FOR YAMAHA GTS 1993

ELECTRICAL 2

IGNITION COIL ASSY

4BH823100000

4BH823100100

178,48 $

Unit Price

IGNITION COIL ASSY

4BH823200000

4BH823200100

197,69 $

Unit Price

DAMPER, IGNITION COIL

4BH823170000

4BH823170100

17,77 $

Unit Price

DAMPER, IGNITION COIL

4U8823170000 4U8823170000

7,44 $

Unit Price

PLUG CAP ASSY

2KT823700000 2KT823700000

80,36 $

Unit Price

NEUTRAL SWITCH ASSY

1AE825400000 1AE825400000

23,52 $

Unit Price

O-RING (371)

932102919600 932102919600

10,15 $

Unit Price

SCREW PAN HEAD

985020601600

985800601600

2,35 $

Unit Price

OIL LEVEL GAUGE ASSY

3GM857200000 3GM857200000

217,98 $

Unit Price

BOLT, WASHER BASED(JA9)

950260601600

901050669600

7,86 $

Unit Price

FAISCEAU DE FILS 2 CPLT

4BH825800000 4BH825800000

Not available

FIL

4BH825410000 4BH825410000

Not available

CLAMP(2TV)

904641611500 904641611500

3,63 $

Unit Price

THERMO SWITCH ASSY

2EL825600000

3LN825600100

109,11 $

Unit Price

THERMO SWITCH ASSY

3YX825600000 3YX825600000

109,86 $

Unit Price

FIL, SECONDAIRE

4BH825090000 4BH825090000

Not available

SCREW, PAN HEAD (7G3)

985800500800 985800500800

5,61 $

Unit Price

YBS67-5 WASHER, SPRING

929010510000

929900510000

1,68 $

Unit Price

BLOC DE CONTROL

4BH8591A0000 4BH8591A0000

Not available

SONDE DE PRESSION

4BH823800000 4BH823800000

Not available

AMORTISSEUR

4BH8235Y0000 4BH8235Y0000

Not available

THERMO UNIT

4BH835910000 4BH835910000

74,06 $

Unit Price

GASKET(2GH)

904301220200 904301220200

6,46 $

Unit Price

SONDE

4BH8592A0000 4BH8592A0000

Not available

FLASHER RELAY ASSY

3YA833500000 3YA833500000

160,04 $

Unit Price

HORN

25G833710000 25G833710000

90,81 $

Unit Price

BOLT, FLANGE

958160801200

958170801200

3,75 $

Unit Price

CLAMP(6M7)

904641007500

9046409M3100

3,08 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the ELECTRICAL 1 of your Yamaha GTS1000 of 1993. Let us know if you have any questions.
