SWITCH / LEVER

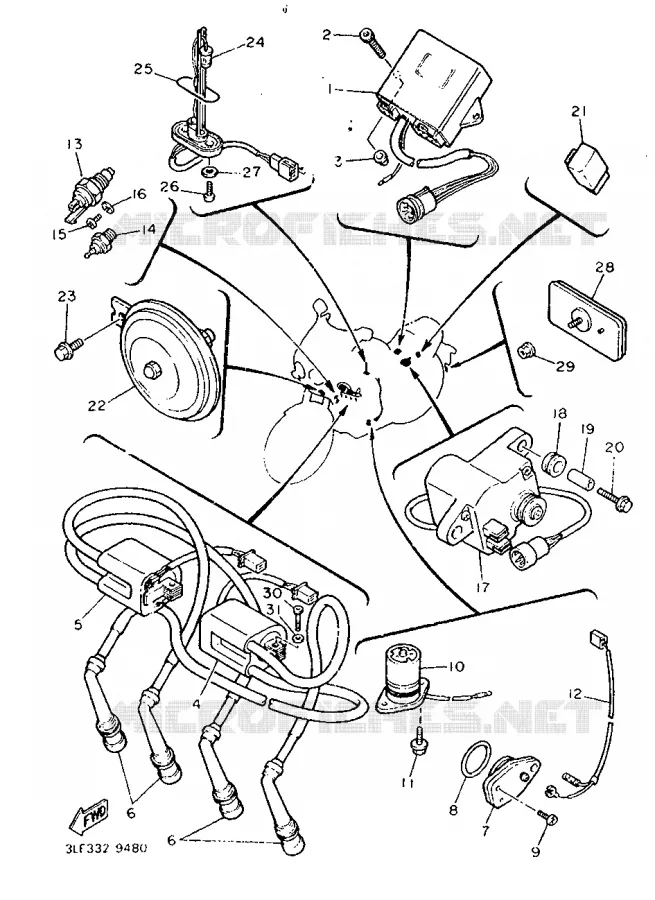

ELECTRICAL 1 FOR YAMAHA FZR 1989

ELECTRICAL 2

BLOC D ALLUMAGE

3LF823050000 3LF823050000

Not available

BOULON, TETE HEXAGONALE CREUSE

901100615800 901100615800

Not available

PLATE

31A144770000

31A144771000

3,28 $

Unit Price

IGNITION COIL ASSY

3GM823100000

1WG823100900

354,36 $

Unit Price

IGNITION COIL ASSY

3GM823200000

1WG823100900

354,36 $

Unit Price

PLUG CAP ASSY

2KT823700000 2KT823700000

80,36 $

Unit Price

NEUTRAL SWITCH ASSY

1AE825400000 1AE825400000

23,52 $

Unit Price

O-RING (371)

932102919600 932102919600

10,15 $

Unit Price

SCREW PAN HEAD

925020601600

985800601600

2,35 $

Unit Price

OIL LEVEL GAUGE ASSY

3GM857200000 3GM857200000

217,98 $

Unit Price

BOLT, WASHER BASED(JA9)

950260601600

901050669600

7,86 $

Unit Price

WIRE SUB LEAD

1AE825090000 1AE825090000

26,12 $

Unit Price

THERMO SWITCH ASSY

2EL825600000

3LN825600100

109,11 $

Unit Price

THERMO UNIT

11H835910000 11H835910000

53,01 $

Unit Price

SCREW, PAN HEAD (7G3)

985010500800

985800500800

5,61 $

Unit Price

YBS67-5 WASHER, SPRING

929010510000

929900510000

1,68 $

Unit Price

SERVO MOTOR ASSY

3HW858200000

3HW858200100

248,16 $

Unit Price

GROMMET (36Y)

904801441200 904801441200

4,97 $

Unit Price

COLLAR(3GM)

90387065V100

903870609L00

7,04 $

Unit Price

BOLT, FLANGE

910010603000

958170603000

3,91 $

Unit Price

FLASHER RELAY ASSY

2UJ833500000

2UJ833500100

296,14 $

Unit Price

HORN

2TV833710000

2KG833710000

84,52 $

Unit Price

BOLT, FLANGE

910260601200

958170601200

1,39 $

Unit Price

SENDER UNIT ASSY, FUEL METER

3GM857520000

3GM857520300

86,30 $

Unit Price

GASKET, SENDER UNIT

42X857530000 42X857530000

15,34 $

Unit Price

SCREW 256241430000

901490601100 901490601100

7,02 $

Unit Price

WASHER, PLATE(3MB)

902020519300

902020518700

1,68 $

Unit Price

REAR REFLECTOR ASSY

3G1851300100

4KM851300000

24,40 $

Unit Price

NUT, FLANGE(3GM)

957010550000

957070550000

2,29 $

Unit Price

BOLT (4MY)

970010602000

970070602000

2,42 $

Unit Price

WASHER, PLAIN (646)

929900660000 929900660000

2,09 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the ELECTRICAL 1 of your Yamaha FZR10000 of 1989. Let us know if you have any questions.
