STARTER CLUTCH

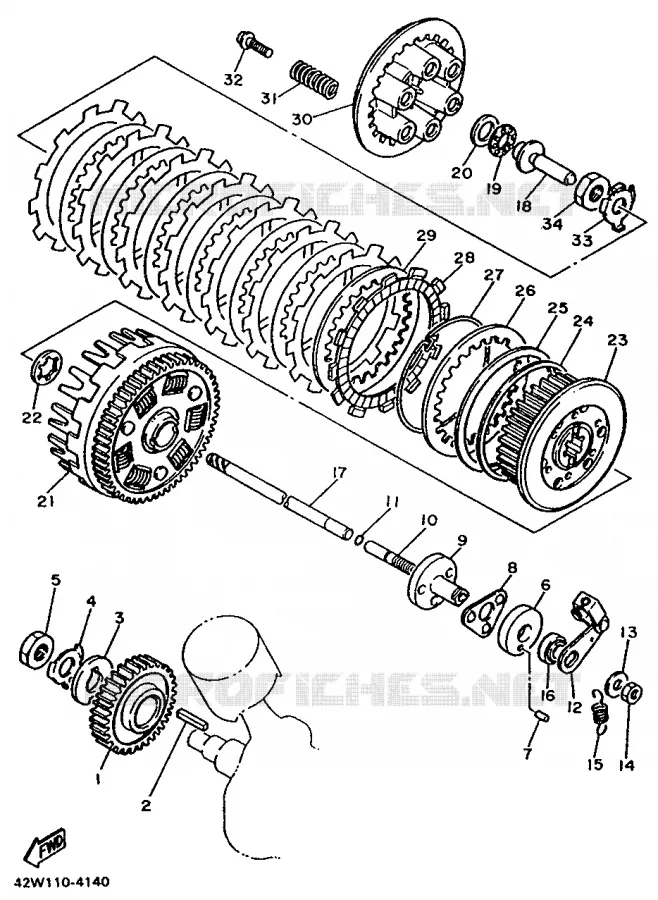

STARTER CLUTCH FOR YAMAHA VIRAGO 1987

TRANSMISSION

PIGNON D ENTRAINEMT PRIMAIRE (47T)

4X7161110000 4X7161110000

Not available

KEY, STRAIGHT (4X7)

902820704200 902820704200

6,08 $

Unit Price

WASHER, CLAW (4X7)

902142002200 902142002200

15,29 $

Unit Price

WASHER, LOCK

902152018200

902152000600

7,38 $

Unit Price

NUT (4X7)

901702027400 901702027400

11,64 $

Unit Price

HOUSING, PUSH SCREW

2H7163960000 2H7163960000

24,24 $

Unit Price

PIN, DOWEL (296)

936060708200 936060708200

3,63 $

Unit Price

RETAINER, BALL

2H7163950100 2H7163950100

15,48 $

Unit Price

SCREW, PUSH

2H7163410000 2H7163410000

50,63 $

Unit Price

SCREW, CLUTCH ADJUSTING

2H7163430000 2H7163430000

11,69 $

Unit Price

O-RING (2H7)

932104836400 932104836400

5,35 $

Unit Price

PUSH LEVER ASSY

4X7163400000 4X7163400000

22,47 $

Unit Price

WASHER(6TC)

929010820000

929070820000

2,13 $

Unit Price

NUT(661)

953030870000

953800870000

4,47 $

Unit Price

SPRING TENSION 360163450000

905061006900 905061006900

7,54 $

Unit Price

OIL SEAL (14X25X5-2H7)

931041405900 931041405900

14,75 $

Unit Price

TIGE DE DEBRAYAGE 2

4X7163570000 4X7163570000

Not available

PUSH ROD 1

4X7163560000 4X7163560000

Not available

BEARING, THRUST (713)

933402150500 933402150500

23,47 $

Unit Price

WASHER, PLATE (5G3)

90201154E900 90201154E900

6,72 $

Unit Price

PRIMARY DRIVEN GEAR COMP.

4X7161500200 4X7161500200

503,05 $

Unit Price

THRUST PLATE

3Y1161540000 3Y1161540000

Not available

CLUTCH BOSS

4X7163710000 4X7163710000

98,29 $

Unit Price

PLATE, SEAT

4X7163840000 4X7163840000

23,86 $

Unit Price

SPRING, CLUTCH BOSS

4X7163830100 4X7163830100

72,65 $

Unit Price

PLATE, CLUTCH 1

4X7163240000

4X7163241000

21,60 $

Unit Price

RING, CLUTCH BOSS

4X7163850000 4X7163850000

11,26 $

Unit Price

PLATE, FRICTION

22U163210000 22U163210000

27,78 $

Unit Price

PLATE, CLUTCH 2

4X7163250000

4X7163251000

24,80 $

Unit Price

PRESSURE PLATE 1

4X7163510000 4X7163510000

70,01 $

Unit Price

SPRING (583 CLUTCH)

905012339100 905012339100

9,29 $

Unit Price

SCREW, WITH WASHER(33M)

901590609200 901590609200

6,46 $

Unit Price

WASHER, LOCK (34L)

902152023100 902152023100

8,37 $

Unit Price

NUT (34L)

901702032700 901702032700

16,40 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the STARTER CLUTCH of your Yamaha XV1000 of 1987. Let us know if you have any questions.
