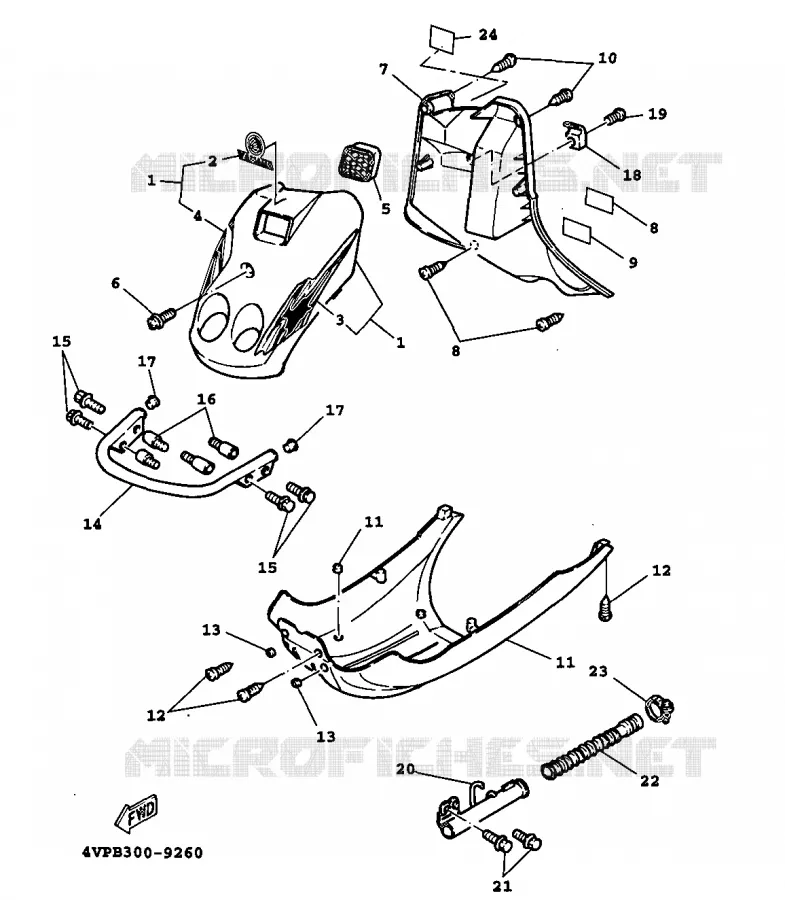

LEG SHIELD FOR YAMAHA BWS 1999

COVER 1

LEG SHIELD 1

4VPX283150P0 4VPX283150P0

Not available

LEG SHIELD 1

4VPX2831604B 4VPX2831604B

Not available

EMBLEM 3

4THF152A2000

4THF152A2100

1,42 $

Unit Price

.EMBLEME 3 EMBLEME 3

4THF152A6000 4THF152A6000

Not available

.EMBLEME EMBLEME

4VPF83383000 4VPF83383000

Not available

.EMBLEME EMBLEME

4VPF83384000 4VPF83384000

Not available

.EMBLEME EMBLEME

4VPF83153000 4VPF83153000

Not available

.EMBLEME EMBLEME

4VPF83154000 4VPF83154000

Not available

PROTECTOR 1

4VPF834V0000 4VPF834V0000

7,17 $

Unit Price

SCREW, WITH WASHER

901590681200 901590681200

4,55 $

Unit Price

LEG SHIELD ASSY

4VPF83000000

4VPF83000100

81,48 $

Unit Price

ETIQUETTE, AVERTISSEMENT

4JKF15682000 4JKF15682000

Not available

ETIQUETTE, AVERTISSEMENT

4JKF15683000 4JKF15683000

Not available

ETIQUETTE, AVERTISSEMENT

4JKF15684000 4JKF15684000

Not available

ETIQUETTE, AVERTISSEMENT

4JKF15681000 4JKF15681000

Not available

SCREW, TAPPING(4MV)

977075001600 977075001600

2,15 $

Unit Price

COVER, LOWER

4VPF83851100 4VPF83851100

51,22 $

Unit Price

SCREW, TAPPING(4MV)

977075001600 977075001600

2,15 $

Unit Price

PLUG, BLIND

3GFF61990000 3GFF61990000

1,21 $

Unit Price

GUARD COMP

4VPF840K001V 4VPF840K001V

Not available

BOLT, FLANGE(6U1)

950270602000 950270602000

2,46 $

Unit Price

NUT 1

4VPF15350000 4VPF15350000

8,39 $

Unit Price

PLUG(55K)

903381614800 903381614800

15,10 $

Unit Price

CROCHET 1

4VPF82570100 4VPF82570100

Not available

SCREW, WITH WASHER

901590681200 901590681200

4,55 $

Unit Price

BOITE 1

4VPF838K0000 4VPF838K0000

Not available

BOLT, FLANGE

958070601400

958170601400

4,16 $

Unit Price

DURITE DE RADIATEUR

4VPF18510000 4VPF18510000

Not available

BRIDE, DE DURITE

904603256000 904603256000

Not available

PLAQUE, GUIDE 3

4VPF478W0000 4VPF478W0000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the LEG SHIELD of your Yamaha YW100E of 1999. Let us know if you have any questions.
